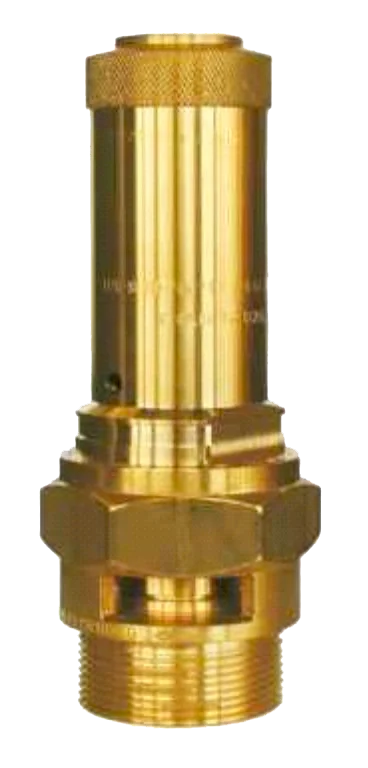

BRASS PROPORTIONAL SAFETY VALVE THREADED HEROSE 06205
BRASS PROPORTIONAL SAFETY VALVE THREADED HEROSE 06205

WAFER TYPE BUTTERFLY VALVE DIN-ANSI-JIS

TECHNICAL DESCRIPTION

Butterfly valve, soft-sealing, centric with one-piece stem. The sealing element is a rubber collar, vulcanized to the body. Top flange according to ISO 5211.

The vulcanized cuff allows the valve to perform its functions even at negative pressure values (vacuum).

WORKING FLUID / MEDIUM

• Fuels, lubricating oil and flammable hydraulic oils, petroleum, air, gas, non-flammable hydraulic fluids, boiler feed water, condensate.
• Drinking water.
• Sea water.

EXECUTION

• Disc made of stainless steel AISI 316.
• Seal – rubber EPDM or NBR, (FPM/FKM on request).
• Other materials on request.

**OPTIONS**

• Manual drive
• Gearbox drive
• Electric or pneumatic drive.

Dimensions: DN 40 – 800


Download Product PDF
Изпратете запитване (Send inquiry)
Additional Information

Materials

No. DETAILS MATERIALS
1 Body gray cast iron EN-JL1040 (GG25)
2.1 Valve (disc) ductile iron EN-JL1030
(GGG40 chrome plated)
2.2 Valve (disc) stainless steel 1.4408 (AISI316)
3 Pin stainless steel 1.4401 (AISI304)
4 Cuff rubber NBR / EPDM / Teflon/PTFE
5 Spindle stainless steel 1.4401 (AISI304)

Characteristics

Standard DIN, ANSI, JIS
Top flange ISO 5211
Construction length EN 558, series 20
Execution straight
Joining inter-flange PN6, PN10, PN16, ANSI #150
Management manual, with gearbox, electric drive, pneumatic drive
Drive sector - 90°
T max.[°C] NBR seat 90 °C
EPDM seat 130 °C

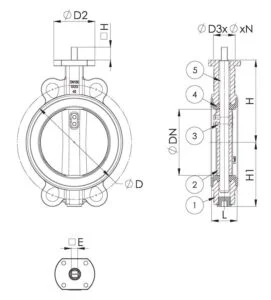

Dimensions
DN PN Joining between flanges L ØD ØD2 ØD3xØxN H H1 H E Kg
40 16 PN 6/10/16/25 ANSI #150 JIS 5K/10K 33 72 90 70x9x4 113 61 25 11 3
50 16 PN 6/10/16/25 ANSI #150 JIS 5K/10K 43 90 90 70x9x4 118 67 25 11 3
65 16 PN 6/10/16/25 ANSI #150 JIS 5K/10K 46 105 90 70x9x4 126 74 25 11 3.5
80 16 PN 6/10/16/25 ANSI #150 JIS 5K/10K 46 124 90 70x9x4 133 82 25 11 4
100 16 PN 6/10/16/25 ANSI #150 JIS 5K/10K 52 150 90 70x9x4 147 100 25 11 5
125 16 PN 6/10/16/25 ANSI #150 JIS 5K/10K 56 182 90 70x9x4 160 112 28 14 7
150 16 PN 6/10/16/25 ANSI #150 JIS 10K 56 210 90 70x9x4 180 134 28 14 10
200 16 PN 6/10/16/25 ANSI #150 JIS 5K/10K 60 265 90 70x9x4 204 159 28 17 14
250 16 PN 6/10/16/25 ANSI #150 JIS 5K/10K 68 315 125 102x12x4 245 195 30 22 20
300 16 PN 6/10/16/25 ANSI #150 JIS 5K/10K 78 371 125 102x12x4 270 220 30 22 30
350 16 PN 10 78 434 150 125x14x4 315 282 29 27 43
400 16 PN 10 102 488 150 125x14x4 350 307 29 27 70
450 16 PN 10 114 532 175 140x18x4 375 352 38 36 110
500 16 PN 10 127 585 175 140x18x4 415 387 38 36 138
600 16 PN 10/16 ANSI #150 154 685 210 165x22x4 465 452 48 46 190
700 16 PN 10/16 ANSI #150 165 805 210 165x22x4 555 502 110 Ø70* 246
800 16 PN 10/16 ANSI #150 190 910 300 254x18x4 620 557 120 Ø80* 362
