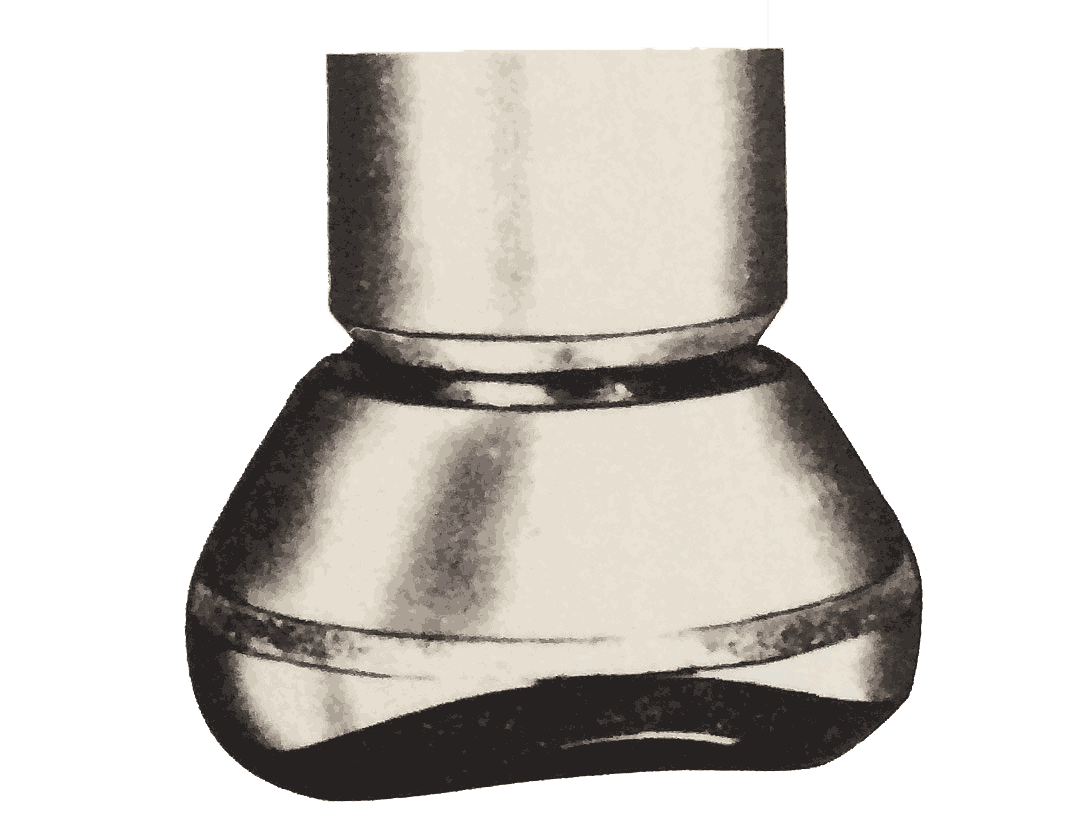

VELDOLET / ASME B.31
TECHNICAL DESCRIPTION
Weld joints are joints that are used as welded bends in pipelines.
Dimensions: 2″ – 4″
Additional information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Veldolet | steel A105 |
| other steels - on request | ||
| stainless steels - upon request |
Features
| SPECIFICATION | |
|---|---|
| Standard | ASME B.31 |

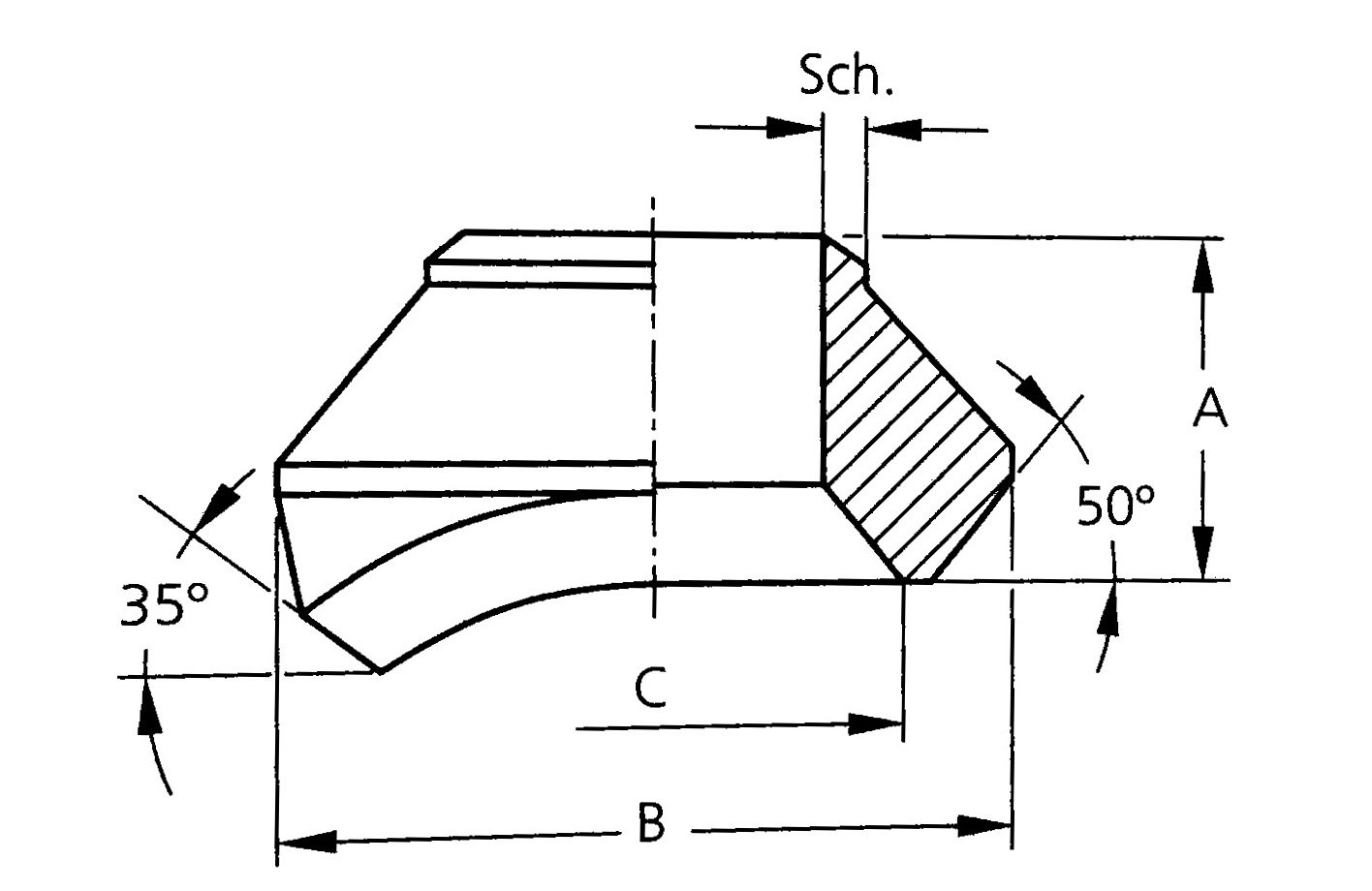

Dimensions
| Ø | Ø | SCH | A | B | C |
|---|---|---|---|---|---|
| main pipe | exit - deviation | mm | mm | mm | |
| 3" | 2" | SCH 80 | 38.1 | 88.9 | 65.1 |
| 6" | 2" | SCH 80 | 38.1 | 88.9 | 65.1 |
| 4" | 3" | SCH 40 | 44.4 | 122.2 | 93.7 |
| 12" - 14" | 3" | SCH 40 | 44.4 | 122.2 | 93.7 |
| 6" | 4" | SCH 40 | 50.8 | 152.4 | 120.6 |
| 12" - 14" | 4" | SCH 40 | 50.8 | 152.4 | 120.6 |
