VALVE STEEL FORGED THREAD NPT ANSI #800
TECHNICAL DESCRIPTION
Forged steel valves according to API trim #8, straight, ANSI B1.20.1, full bore, extractable stem
WORKING FLUID / MEDIUM
Steam, water, oils, fuels, gases and gas vapors
CONSTRUCTION FEATURES
API 602 performance
OPTIONS
• Different types of materials for the stem, valve and seat
• Higher pressure class
• Materials for higher or lower temperatures
Dimensions: DN 15 – 50; 1/2″ – 2″
Additional information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | forged steel ASTM A105N |
| 2 | Saddle | trim #8 |
| 3 | Valve | forged steel ASTM A105N |
| 4 | Garnish | stainless steel AISI 316 |
| graphite filler | ||
| 5 | Oil seal | graphite packing |
| 6 | Lid | forged steel ASTM A105N |
| 7 | Spindle | A182 F6 |
| 8 | Handwheel | grey cast iron EN-JS1040 (GG25) |
Features
| SPECIFICATION | |
|---|---|
| Standard | API 602 / ISO 15761 |
| Joining | NPT thread |
| Construction length | ASME B16.10 T1, Series 15 |
| Attaching the lid | bolted |
| Execution | straight |
| Management | manually with wheel |
| Drive | multi-turn |
| T max. °C | 426 °C |

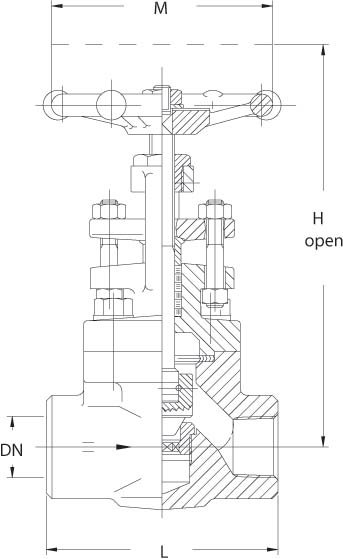

Dimensions
| DN | PN | Joining | L | H | M | Weight (kg) |
|---|---|---|---|---|---|---|
| 1/2" | 800 lbs | threaded | 83 | 160 | 102 | 1.7 |
| 3/4" | 800 lbs | threaded | 89 | 165 | 102 | 2.2 |
| 1" | 800 lbs | threaded | 114 | 173 | 102 | 2.8 |
| 1 1/2" | 800 lbs | threaded | 159 | 206 | 118 | 5.6 |
| 2" | 800 lbs | threaded | 203 | 184 | 168 | 10.2 |
