TRANSITION COUPLING EN10241 TABLE 13
TECHNICAL DESCRIPTION
Threaded adapter coupling – is a threaded connecting element that provides a straight connection between two pipe components (pipes) with different diameters.
Dimensions:G 1/2″ – 2 1/2″
Additional information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Reducing coupling | steel P265GH; A234 WPB |
| other steels - on request | ||
| stainless steels - upon request |
Features
| SPECIFICATION | |
|---|---|
| Standard | EN10241 |
| Joining | threaded ISO 7-1 |
| Pressure | 25 Bar |

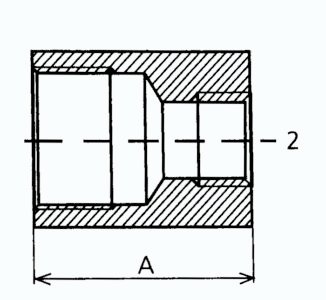

Dimensions
| DN | G | A mm |
|---|---|---|
| 15 x 10 | 1/2" x 3/8" | 38 |
| 20 x 15 | 3/4" x 1/2" | 41 |
| 25 x 15 | 1" x 1/2" | 51 |
| 25 x 20 | 1" x 3/4" | 49 |
| 32 x 20 | 1 1/4" x 3/4" | 57 |
| 32 x 25 | 1 1/4" x 1" | 56 |
| 40 x 25 | 1 1/2" x 1" | 62 |
| 40 x 32 | 1 1/2" x 1 1/4" | 60 |
| 50 x 25 | 2" x 1" | 67 |
| 50 x 65 | 2" x 2 1/2" | 64 |
