THERMOSTATIC CONDENSATE TRAP WITH AIR BREATHER THREADED / FLANGED ADCA TH36

TECHNICAL DESCRIPTION

Thermostatic steam traps series TH36 for steam with automatic air venting are specially designed for installation in industrial equipment such as sterilizers, food processing equipment, chemical and laundry equipment, where high drainage capacity is required. Connection is threaded or flanged

WORKING FLUID MEDIUM

• Superheated steam

MODELS

• TH32/4 – 4 capsules
• TH32/6 – 6 capsules

OPTIONS

• Stainless steel construction

JOIN

• flanged EN 1092-1 / PN40 or ANSI
• threaded ISO 7 / 1 Rp (BS21)
• welded (on request)

Dimensions: 1 1/2″ – 2″ / DN 40 – 50

Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

Materials

No. DETAILS MATERIALS
1 Body P250GH / 1.0460
2 Lid P250GH / 1.0460
3 Garnish stainless steel/graphite
4 Valve AISI 304 / 1.4301
5 Thermostatic element Stainless steel
6 Saddle-trim copper
7 Bolts 8.8



Features

Standard DIN/ANSI
Threaded connection ISO 7 / 1 Rp (BS21)
Flange connection EN 1092-1 / PN40 or ANSI
Welding socket ANSI B 16.11
Butt weld ANSI B16.25
Attaching the lid bolted
Execution straight
Management automatically
Venting automatically

Flow rate

PASSABILITY kg/h
Model DN DIFFERENTIAL PRESSURE (bar)
0.2 0.3 0.5 1 1.5 2 3 4 6 8 10 13 15 20 22
TH36/4 40 - 50 280 480 560 1020 1320 1540 1820 2040 2400 2680 2800 2880 3000 3100 3180
TH36/6 40 - 50 420 720 840 1530 1980 2310 2730 3060 3600 4020 4200 4320 4500 4650 4770

Limits

MAXIMUM WORKING CONDITIONS
Maximum pressure / Bars T max. [°C]
FLANGE
PN 40 / ANSI 300		 FLANGE
ANSI #150
40 bar 19.3 bar 50 °C
35 bar 15.8 bar 150 °C
30.4 bar 12.1 bar 250 °C
27.6 bar 10.2 bar 300 °C

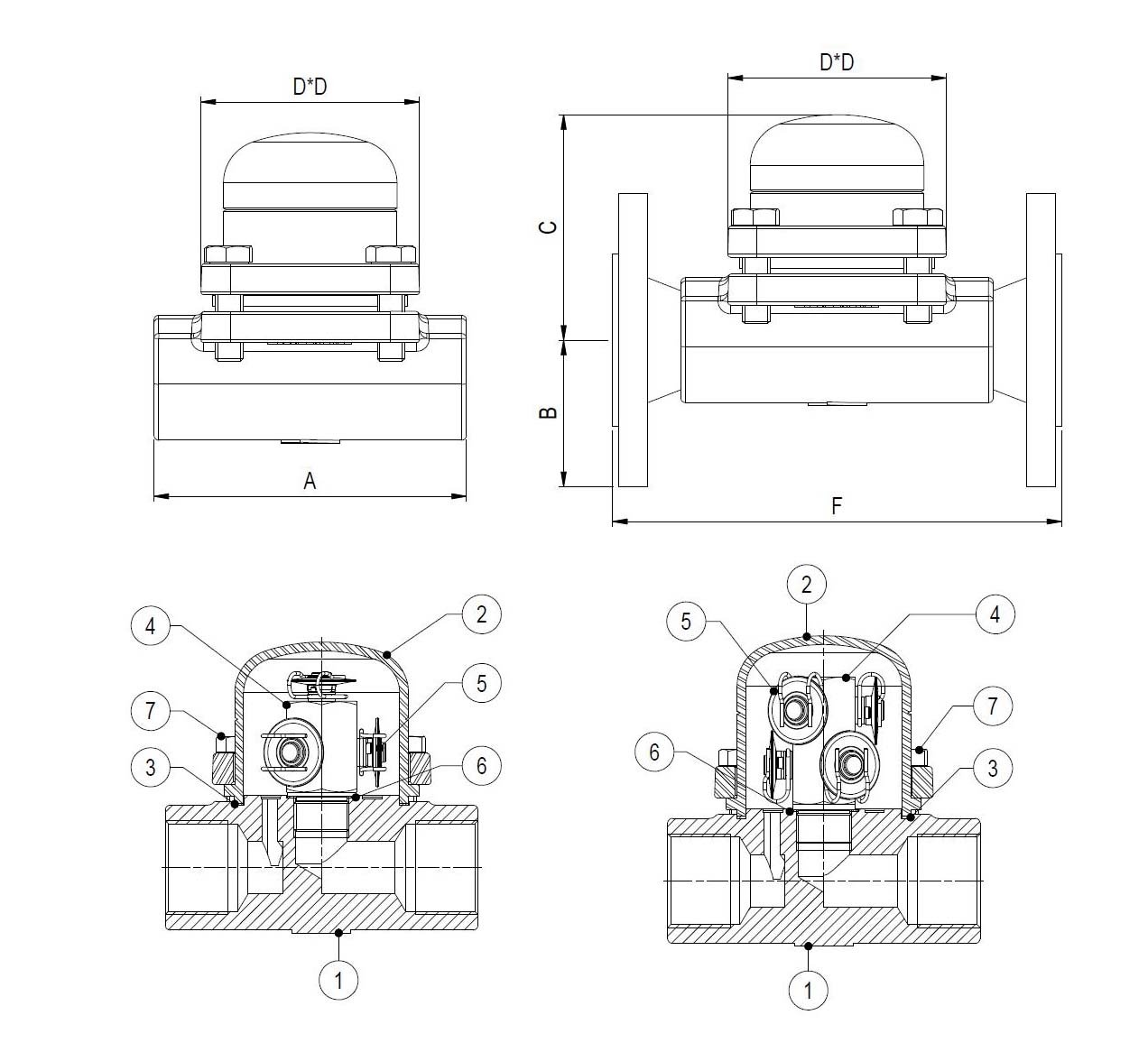

Dimensions
DIMENSIONS (mm)
Threaded or welded EN PN 16 / PN 40 ANSI 150 ANSI 300
DN A C D kg B F kg B F kg B F kg
40 - 1 1/2" 160 126 112 4.6 75 230 9.3 64 230 8.2 78 230 11.2
50 - 2" 230 126 112 5.8 83 230 10.2 76 230 10 83 230 11.6
