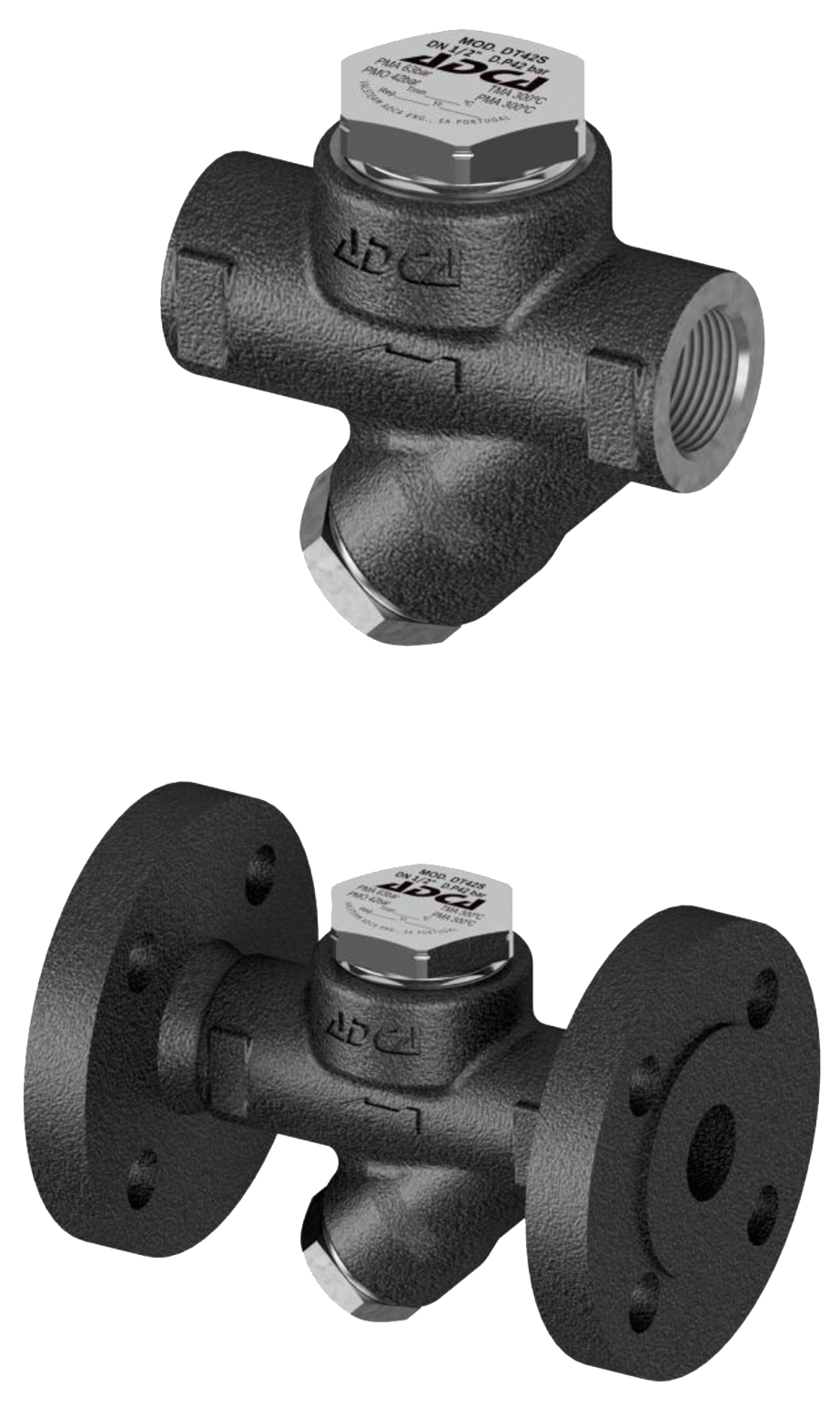

THERMODYNAMIC THREADED / FLANGED CONDENSATE TRAP ADCA DT 42/2
TECHNICAL DESCRIPTION
Thermodynamic condensate traps model ADCA DT 42/2 are compact, lightweight and easy to install and excellent for installation in systems with high operating pressure. Condensate traps of this type have only one moving element and are used in a wide range of operating pressures, without additional adjustment. The connection is threaded or flanged.
MAIN FUNCTIONS
Discontinuous unloading. Operation with superheated steam. Seat and valve can be replaced in place without dismantling the steam trap.
Not affected by hydraulic shocks and vibrations in the system. Built-in filter easy to service.
OPTIONS
• Anti-icing device.
ANNEX
• Saturated and superheated steam.
DIMENSIONS
• threaded ½” ÷ 1″
• flanged DN 15 ÷ DN 25
ACCESSIONS
• threaded ISO 7 / 1 Rp (BS21)
• flanged EN 1092-1 PN40 ÷ PN63 or ANSI.
• welded (on request)
INSTALLATION
• Horizontal installation is recommended.
ANNEX
• Saturated and superheated steam.
RESTRICTIONS
• Minimum operating pressure up to 0.25 Bar
• Maximum operating back pressure up to 80% Bar

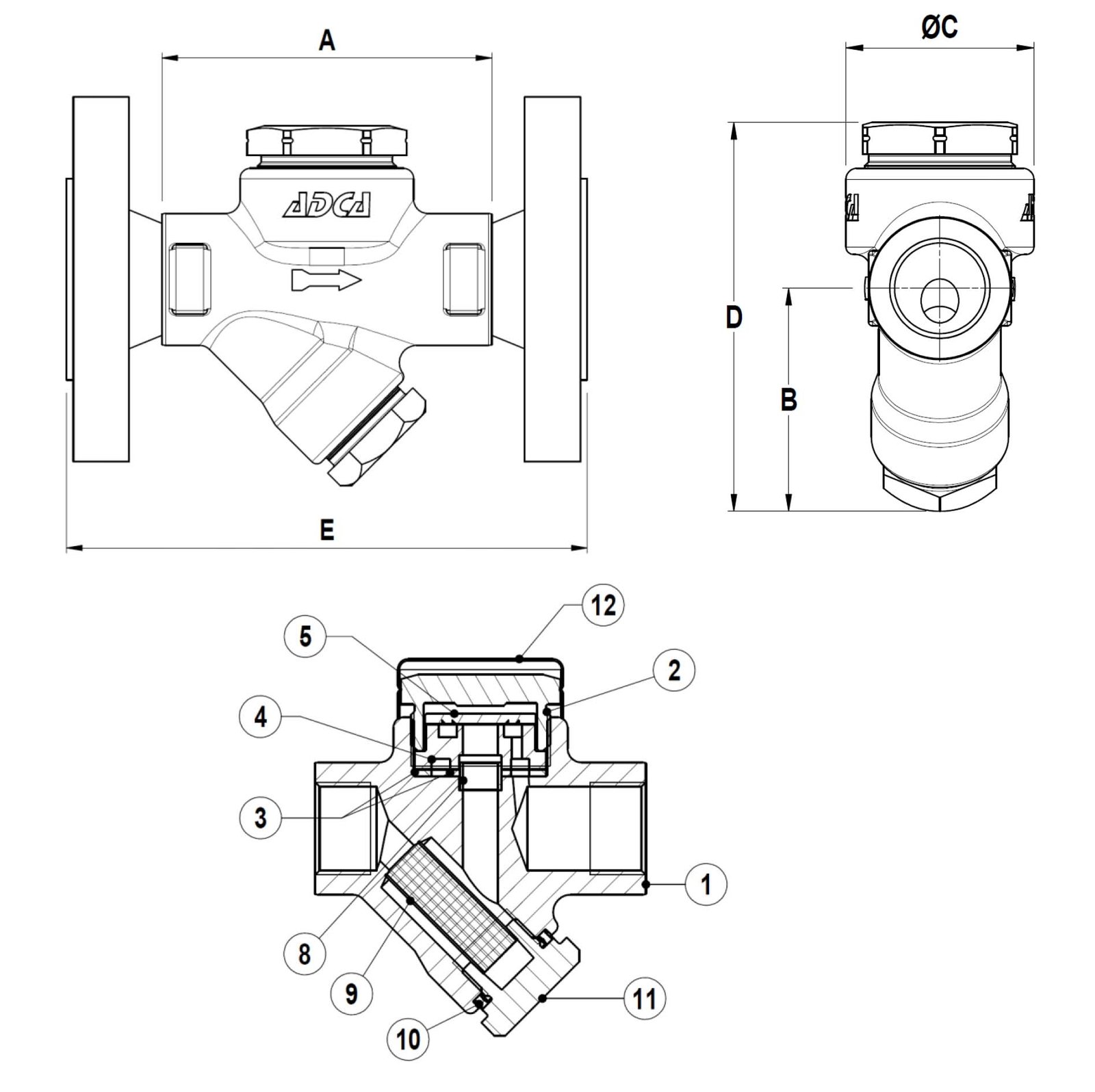

Dimensions: 1/2″ – 1″
Materials
No. | POSITION | MATERIAL |
---|---|---|
1 | Body | P250H / 1.0460 |
2 | Lid | AISI 304 / 1.4301 AISI 303 / 1.4305 |
3 | Sealant | stainless steel / graphite |
4 | Saddle | hardened stainless steel |
5 | Valve | hardened stainless steel |
8 | Pipe | AISI 304 / 1.4301 |
9 | Filter | AISI 304 / 1.4301 |
10 | Gasket | stainless steel / graphite |
11 | Tapa | A105 / 1.0432 |
12 | Insulating cap | AISI 304 / 1.4301 |
Features
SPECIFICATION | |
---|---|
Standard | DIN |
Joining | threaded BSP / flanged |
Lid connection | threaded cap |
Execution | straight |
Management | automatically |
Venting | with automatic release |
Installation | horizontal |
Flow rate
PASSABILITY (kg/h) | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MODEL | SIZE | DIFFERENTIAL PRESSURE (bar) | ||||||||||||
DN | 1 | 3 | 5 | 7 | 9 | 12 | 15 | 18 | 21 | 24 | 30 | 35 | 42 | |
DT42/2 | 1/2" - 15 | 180 | 250 | 300 | 380 | 430 | 500 | 550 | 590 | 620 | 690 | 730 | 770 | 820 |
DT42/2 | 3/4” - 20 | 320 | 450 | 530 | 600 | 690 | 720 | 810 | 850 | 900 | 930 | 950 | 980 | 1040 |
DT42/2 | 1” - 25 | 320 | 450 | 530 | 600 | 690 | 720 | 810 | 850 | 900 | 930 | 950 | 980 | 1040 |
Limits
MAXIMUM OPERATING PARAMETERS | |||
---|---|---|---|
Maximum working pressure / Bars | T max. [°C] | ||
FLANGED PN 63 | FLANGE PN 40 / ANSI 300 lb | FLANGED ANSI 150 lb | |
63 bar | 40 bar | 19.3 bar | 50 °C |
55.5 bar | 35 bar | 15.8 bar | 150 °C |
48 bar | 30.4 bar | 12.1 bar | 250 °C |
43.5 bar | 27.4 bar | 12.1 bar | 300 °C |
DIMENSIONS (mm) | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Threaded or welded (SW) | EN PN 16 / PN 40 | EN PN 63 | ANSI 150 lb | ANSI 300 lb | |||||||||
SIZE DN | A | B | C | D | kg | E | kg | E | kg | E | kg | E | kg |
1/2" - 15 | 95 | 60 | 50 | 104 | 1.3 | 150 | 2.8 | 150 | 3.7 | 150 | 2.4 | 150 | 2.8 |
3/4”- 20 | 95 | 60 | 50 | 104 | 1.2 | 150 | 3.3 | 150 | 5.2 | 150 | 2.8 | 150 | 3.6 |
1” - 25 | 95 | 60 | 50 | 110 | 1.5 | 160 | 4 | 160 | 6.5 | 160 | 3.6 | 160 | 4.5 |
