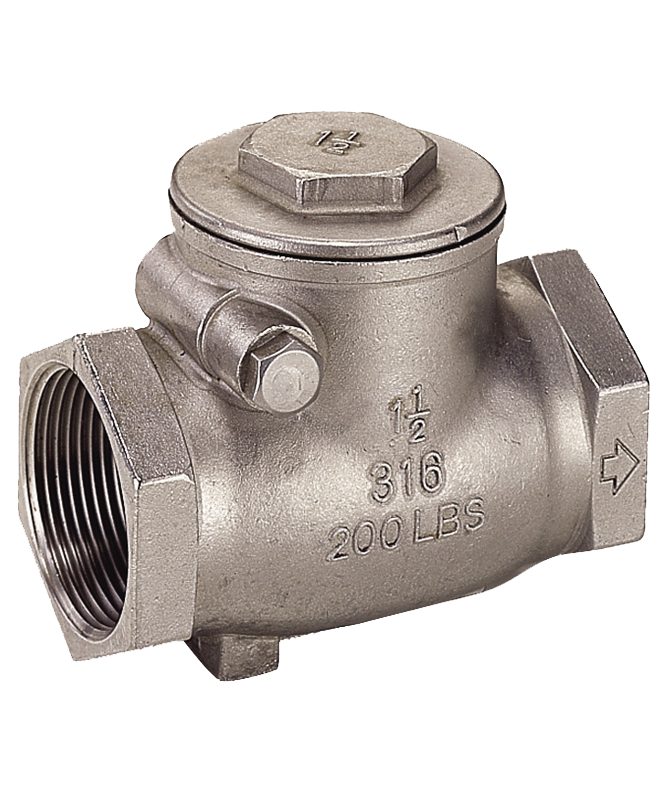

SWING CHECK STAINLESS STEEL VALVE THREADED DIN PN 40

TECHNICAL DESCRIPTION

Check valve with metal/metal seal, threaded with threaded cover.

WORKING FLUID / MEDIUM

• Fuels, lubricating oil and flammable hydraulic oils, boiler feed water, condensate.
• Sea water.

EXECUTION

• Other materials upon request.

OPTIONS

• Larger sizes upon request.


Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

Materials

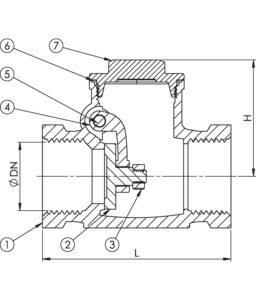

No. DETAILS MATERIALS
1 Body stainless steel 1.4301 (AISI 304)
2 Valve stainless steel 1.4301 (AISI 304)
3 Valve nut A2
4 Pin stainless steel 1.4401 (AISI AISI 316)
5 Axis stainless steel 1.4401 (AISI AISI 316)
6 Cover gasket Teflon / PTFE
7 Cover stainless steel 1.4401 (AISI316)

Features

SPECIFICATION
Standard DIN
Compound standard NPT
Lid connection threaded
Execution straight
Joining threaded
Operation automatically
Actuation self-closing
T max. °C 200 °C



Dimensions
DN PN Flanges/PN L H Weight (kg)
15 16 G 1/2" 60 42 0.3
20 16 G 3/4" 78 46 0.5
25 16 G1" 84 49 0.7
32 16 G 1 1/4" 94 54 0.9
40 16 G 1 1/2" 104 59 1.2
50 16 G 2" 122 67 1.8
65 16 G 2 1/2" 153 105 3.5
80 16 G 3" 175 125 5
