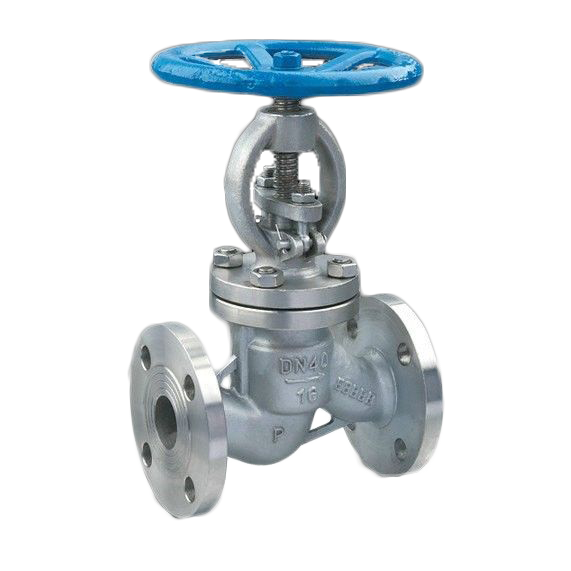

STEEL STRAIGHT VALVE DIN 3202 F1, PN 40

TECHNICAL DESCRIPTION

Straight valve with flange connection. Possible variations of the function depending on the design.

• shut-off valve
• regulating valve
• check valve

Valve seat sealing – metal to metal
Spindle type – pull-out

WORKING FLUID / MEDIUM

• Water, steam, fuels, lubricating and flammable hydraulic oils, oil, air, non-flammable hydraulic fluids, boiler feed water, condensate. For thermal oil, the use of bellows valves is recommended.
• Sea water

OPTIONS

• Spring for check valve

Dimensions:  DN 15 – 200

Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

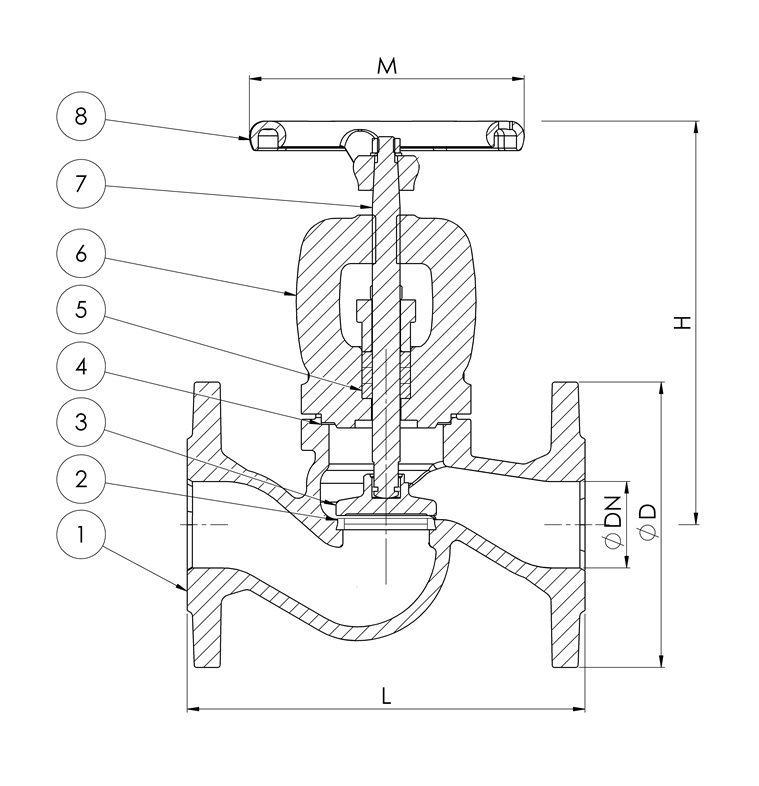

Materials

No. DETAILS MATERIALS
1 Body steel 1.0619 (WCB)+13Cr
2 Saddle steel 1.0619 (WCB)+13Cr
3 Valve steel 1.0482 (A105)+13Cr
4 Garnish metal graphite
5 Packing gland graphite packing
6 Lid steel 1.0619 (WCB)
7 Spindle stainless steel EN 1.4021 2Cr13
8 Handwheel ductile iron EN-JS1025 (GGG40.3)

Features

SPECIFICATION
Standard DIN 3202 F1
Joining EN 1092-2
Construction length EN 558, series 1
Lid connection bolted
Execution straight
Joining flanged
Management manually with wheel
Drive multi-turn
Working temperature °C -29°C to 425°C
Dimensions
DN PN Flanges/PN L D ØP* nxd H M Weight (kg)
15 40 40 130 95 65 4x14 165 120 4
20 40 40 150 105 75 4x14 165 120 4.5
25 40 40 160 115 85 4x14 180 140 5.6
32 40 40 180 140 100 4x18 180 140 7
40 40 40 200 150 110 4x18 215 160 11
50 40 40 230 165 125 4x18 230 160 13
65 40 40 290 185 145 8x18 245 180 19
80 40 40 310 200 160 8x18 295 210 25
100 40 40 350 220 190 8x22 325 225 35
125 40 40 400 250 220 8x26 360 250 58
150 40 40 480 285 250 8x26 425 300 80
200 40 40 600 340 320 12x30 505 400 150
Note: The dimensions in column ØP should be considered as the diameters of the bolt circle, as the latter are not indicated in the drawing.
