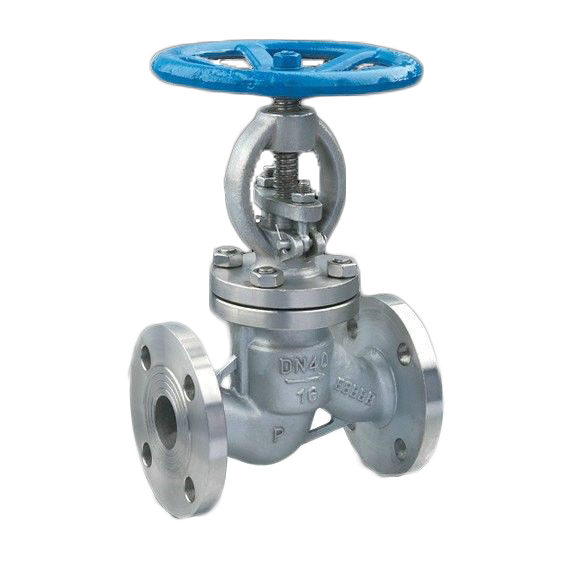

STEEL STRAIGHT VALVE DIN 3202 F1, PN 16
TECHNICAL DESCRIPTION
Straight valve with flange connection. Possible variations of the function depending on the design.
• shut-off valve
• regulating valve
• check valve
Valve seat sealing – metal to metal
Spindle type – pull-out
WORKING FLUID / MEDIUM
• Water, steam, fuels, lubricating and flammable hydraulic oils, oil, air, non-flammable hydraulic fluids, boiler feed water, condensate. For thermal oil, the use of bellows valves is recommended.
• Sea water
OPTIONS
• Spring for check valve
Dimensions: DN 15 – 200
Additional information

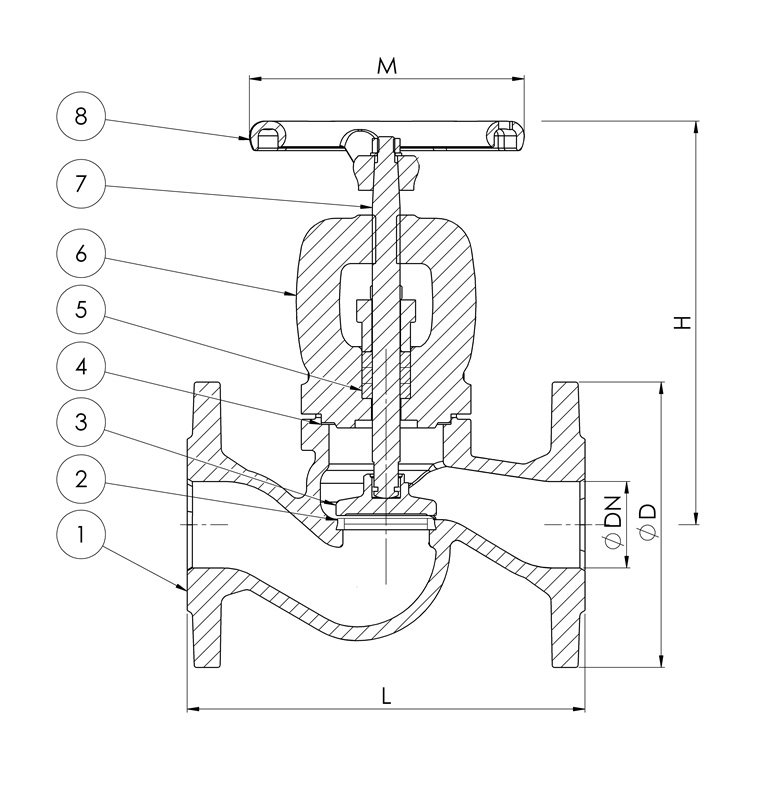

Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | steel 1.0619 (WCB)+13Cr |
| 2 | Saddle | steel 1.0619 (WCB)+13Cr |
| 3 | Valve | steel 1.0482 (A105)+13Cr |
| 4 | Garnish | metal graphite |
| 5 | Packing gland | graphite packing |
| 6 | Lid | steel 1.0619 (WCB) |
| 7 | Spindle | stainless steel EN 1.4021 2Cr13 |
| 8 | Handwheel | ductile iron EN-JS1025 (GGG40.3) |
Features
| SPECIFICATION | |
|---|---|
| Standard | DIN 3202 F1 |
| Joining | flanged EN 1092-2 |
| Construction length | EN 558, series 1 |
| Lid connection | bolted |
| Execution | straight |
| Management | manually with wheel |
| Drive | multi-turn |
| Working temperature °C | -29°C to 425°C |
Dimensions
| DN | PN | Flanges/PN | L | D | ØP* | nxd | H | M | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 15 | 16 | 16 | 130 | 95 | 65 | 4x14 | 165 | 120 | 4 |
| 20 | 16 | 16 | 150 | 105 | 75 | 4x14 | 165 | 120 | 4.5 |
| 25 | 16 | 16 | 160 | 115 | 85 | 4x14 | 180 | 140 | 5.6 |
| 32 | 16 | 16 | 180 | 140 | 100 | 4x18 | 180 | 140 | 7 |
| 40 | 16 | 16 | 200 | 150 | 110 | 4x18 | 215 | 160 | 11 |
| 50 | 16 | 16 | 230 | 165 | 125 | 4x18 | 230 | 160 | 13 |
| 65 | 16 | 16 | 290 | 185 | 145 | 4x18 | 245 | 180 | 19 |
| 80 | 16 | 16 | 310 | 200 | 160 | 8x18 | 295 | 210 | 25 |
| 100 | 16 | 16 | 350 | 220 | 180 | 8x18 | 325 | 225 | 35 |
| 125 | 16 | 16 | 400 | 250 | 210 | 8x18 | 360 | 250 | 58 |
| 150 | 16 | 16 | 480 | 285 | 240 | 8x22 | 425 | 300 | 80 |
| 200 | 16 | 16 | 600 | 340 | 295 | 12x22 | 505 | 400 | 150 |
| Note: The dimensions in column ØP should be considered as the diameters of the bolt circle, as the latter are not indicated in the drawing. | |||||||||
