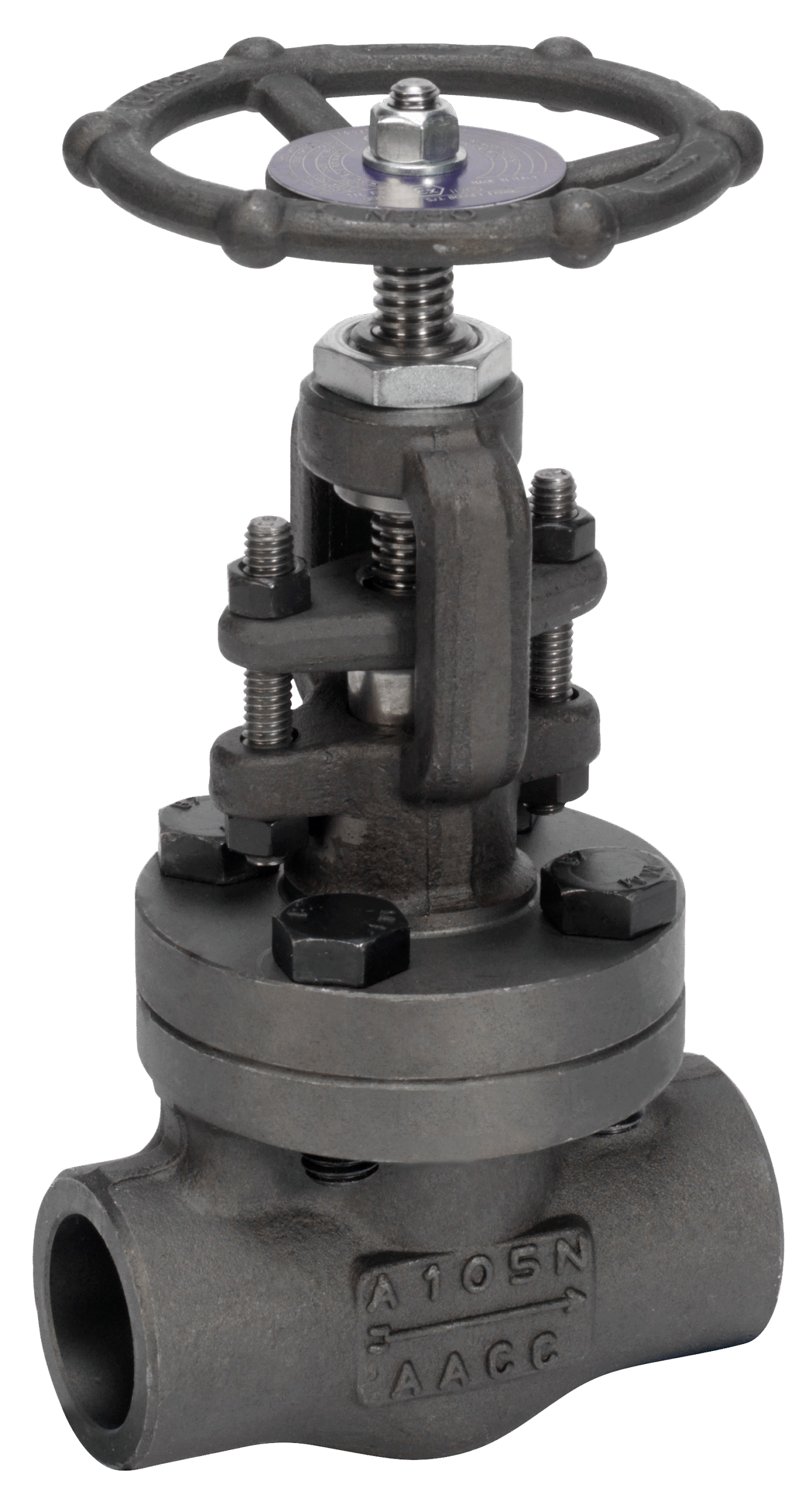

STEEL FORGED VALVE, WELDED SW ANSI #800
TECHNICAL DESCRIPTION
Forged steel valves according to API trim #8, straight, with welded socket connection according to ANSI B16.11, reduced bore, extractable stem
WORKING FLUID / MEDIUM
Water, steam, oils, fuels, gases and gas vapors
CONSTRUCTION FEATURES
Performance API 602 / ISO 1576
OPTIONS
• Different types of materials for the stem, valve and seat
• Higher pressure class
• Materials for higher or lower temperatures
Dimensions: DN 15 – 50; 1/2″ – 2″
Additional information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | forged steel ASTM A105N |
| 2 | Saddle | trim #8 |
| 3 | Valve | forged steel ASTM A105N |
| 4 | Garnish | AISI 316 with graphite filling |
| 5 | Packing gland | graphite packing |
| 6 | Lid | forged steel ASTM A105N |
| 7 | Spindle | A182 F6 |
| 8 | Handwheel | grey cast iron EN-JS1040 (GG25) |
Features
| SPECIFICATION | |
|---|---|
| Standard | API 602 / ISO 15761 |
| Joining | welded sleeve |
| Construction length | ASME B16.10 T1, Series 15 |
| Lid connection | bolted |
| Execution | straight |
| Joining | on a weld |
| Management | manually with wheel |
| Drive | multi-turn |
| T max. °C | 426 °C |

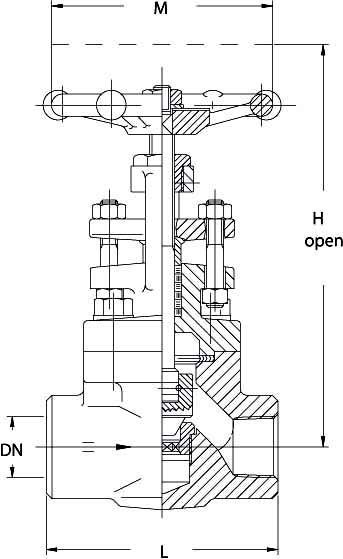

Dimensions
| DN | PN | Flanges/PN | L | H | M | Weight (kg) |
|---|---|---|---|---|---|---|
| 15 | 800 lbs | welded sleeve | 108 | 158 | 100 | 1.9 |
| 20 | 800 lbs | welded sleeve | 117 | 158 | 100 | 2.1 |
| 25 | 800 lbs | welded sleeve | 127 | 192 | 125 | 3.7 |
| 40 | 800 lbs | welded sleeve | 165 | 241 | 160 | 6.9 |
| 50 | 800 lbs | welded sleeve | 203 | 279 | 180 | 11.4 |
