STEEL FORGED VALVE ON FLANGES ANSI #300
TECHNICAL DESCRIPTION
Forged steel flanged valves ASME Class #300, API trim #1; trim #5 and trim #8, straight, with ANSI 16.5 flange connection (“smooth face flange”), reduced bore, spindle removal
WORKING FLUID / MEDIUM
Water, steam, oils, fuels, gases and gas vapors
CONSTRUCTION FEATURES
Execution according to BS 5352 standard
OPTIONS
• Different types of materials for the spindle, plug and seat
• Higher pressure class
• Materials for higher or lower temperatures
• Trim #1 (maintained in stock), other varieties are delivered to order
Dimensions: DN 15 – 50; 1/2″ – 2″
Additional information

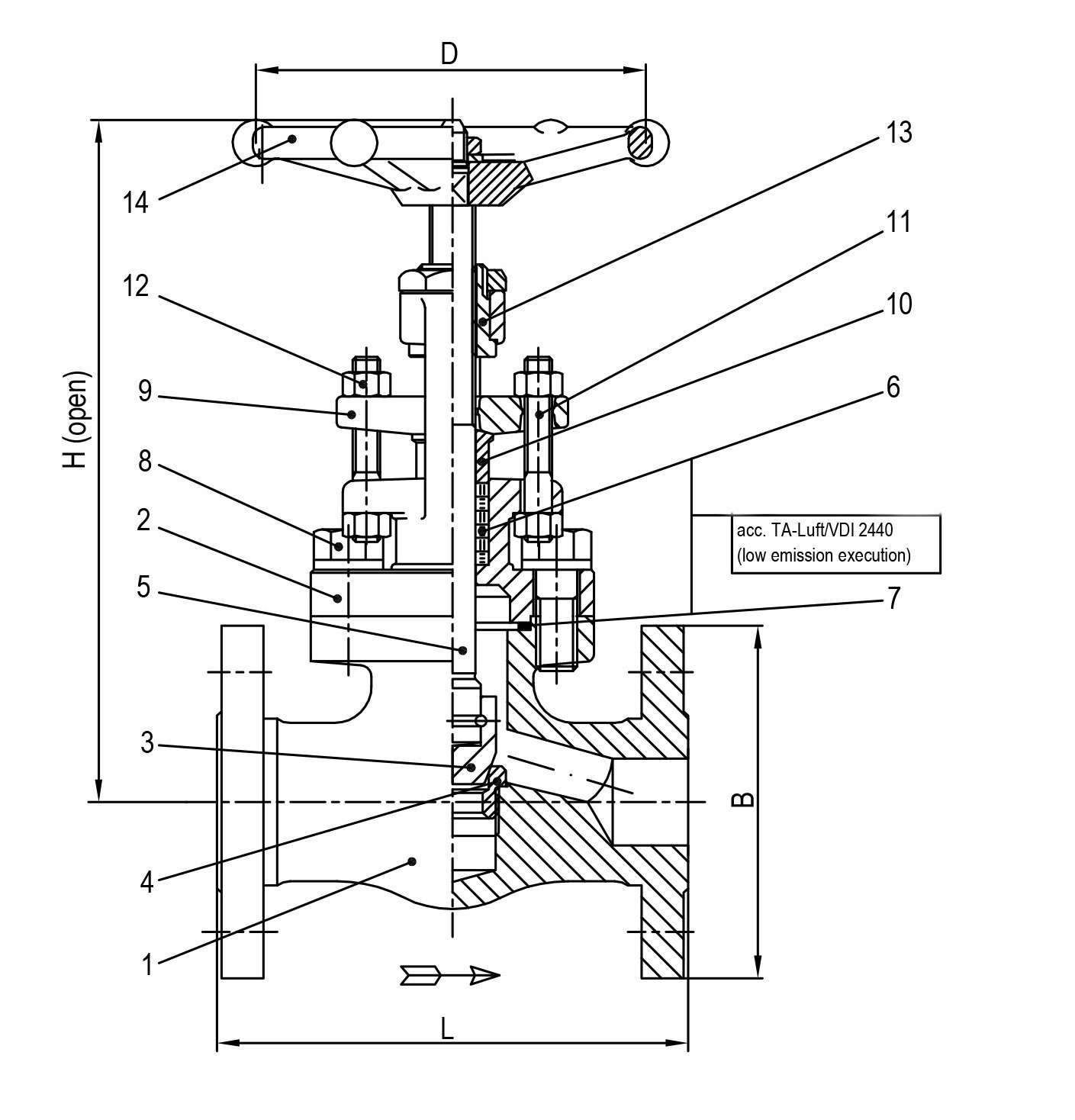

Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | steel ASTM A105N (1.0460) |
| 2 | Lid | steel (1.0460) |
| 3 | Disk | 13Cr |
| 4 | Saddle | trim #1; #5; #8 |
| 5 | Spindle | steel 13Cr |
| 6 | Stuffing box | graphite |
| 7 | Garnish | graphite / 1.4401 |
| 8 | Bolts | 21CrMoV5-7 |
| 9 | Packing flange | A105N (1.0460) |
| 10 | Stuffing box - compression | 13Cr |
| 11 | Bolts | A2-70 |
| 12 | Nuts | A2-70 |
| 13 | Nut | 13Cr |
| 14 | Flywheel | cast iron or steel |
Features
| SPECIFICATION | |
|---|---|
| Standard | BS 5352 |
| Joining | flange B16.5 |
| Construction length | ASME B16.10 |
| Attaching the lid | bolted |
| Execution | straight |
| Management | manually with wheel |
| Drive | multi-turn |
| T max. °C | 426 °C |
Dimensions
| DN | PN | Flanges/PN | L | H | D | B | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 15 | 300 lbs | ANSI #300 | 152.5 | 196 | 88 | 95.5 | 4.1 |
| 20 | 300 lbs | ANSI #300 | 178 | 202 | 88 | 117.5 | 5.7 |
| 25 | 300 lbs | ANSI #300 | 203 | 226 | 97 | 124 | 8.6 |
| 40 | 300 lbs | ANSI #300 | 229 | 285 | 138 | 155.5 | 14.5 |
| 50 | 300 lbs | ANSI #300 | 267 | 321 | 172 | 165 | 17.5 |
