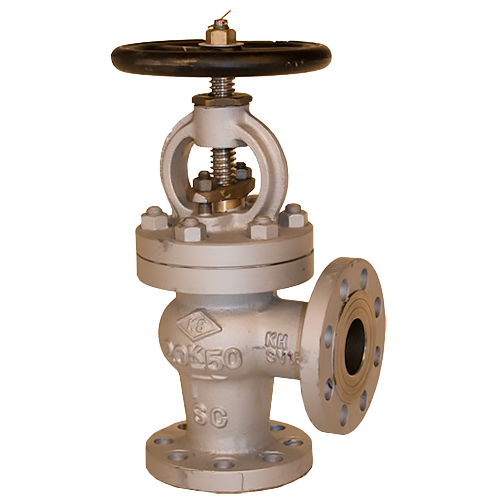

STEEL ANGLE VALVE JIS F7314

TECHNICAL DESCRIPTION

Angle valve with flange connection. Possible variations of the function depending on the design

• shut-off valve
• regulating valve
• check valve

Valve seat sealing – metal to metal
Spindle type – pull-out

WORKING FLUID / MEDIUM

• Water, steam, fuels, lubricating and flammable hydraulic oils, oil, air, non-flammable hydraulic fluids, boiler feed water, condensate. For thermal oil, the use of bellows valves is recommended
• Sea water

OPTIONS

• Spring for check valve

Dimensions:  DN 32 – 200

Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

Materials

No. DETAILS MATERIALS
1 Body / Lid steel GP240GH (GSC-25)
2 Saddle stainless steel 1.4301
3 Valve stainless steel 1.4021
4 Spindle stainless steel 1.4021
5 Handwheel gray cast iron (GG25)
6 Spindle seal graphite gasket

Features

SPECIFICATION
Standard JIS F7400
Joining JIS B2220 20K
Construction length JIS B2002
Lid connection bolted
Execution angular
Joining flanged
Management manual with wheel / extracting spindle
Drive multi-turn
T max. °C at 29 Bar 300 °C
T max. °C at 34 Bar 120 °C

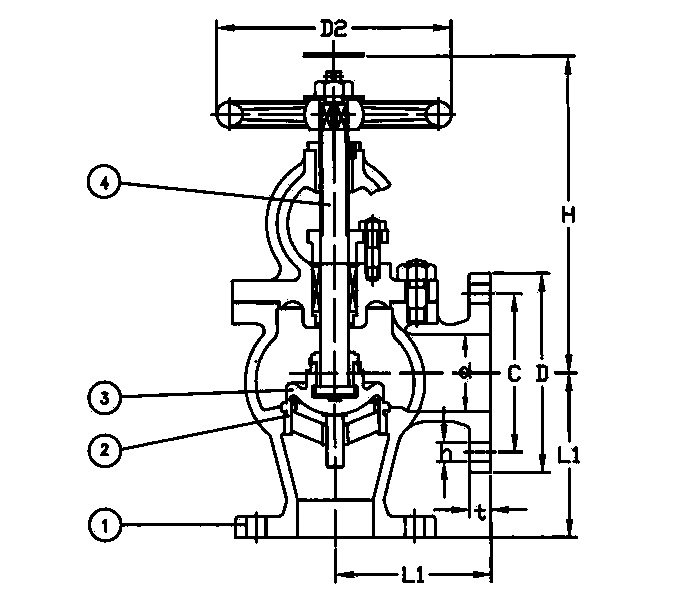

Dimensions
DN PN Flanges/PN L1 D C nx Øh H (open) D2 Weight (kg)
32 20K 20K 100 135 100 4x19 250 140 13
40 20K 20K 110 140 105 4x19 265 160 15.2
50 20K 20K 125 155 120 8x19 275 160 20
65 20K 20K 135 175 140 8x19 305 180 26.9
80 20K 20K 150 200 160 8x23 340 200 38.9
100 20K 20K 170 225 185 8x23 385 225 54.4
125 20K 20K 200 270 225 8x25 440 250 79.9
150 20K 20K 225 305 260 12x25 485 300 111
200 20K 20K 280 350 305 12x25 540 400 181
