STEEL ANGLE VALVE DIN 3202 F32, PN 40
STEEL ANGLE VALVE DIN 3202 F32, PN 40
Back to products

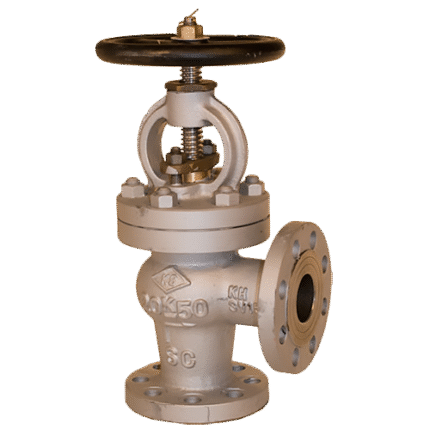

STEEL ANGLE VALVE JIS F7314
STEEL ANGLE VALVE JIS F7314

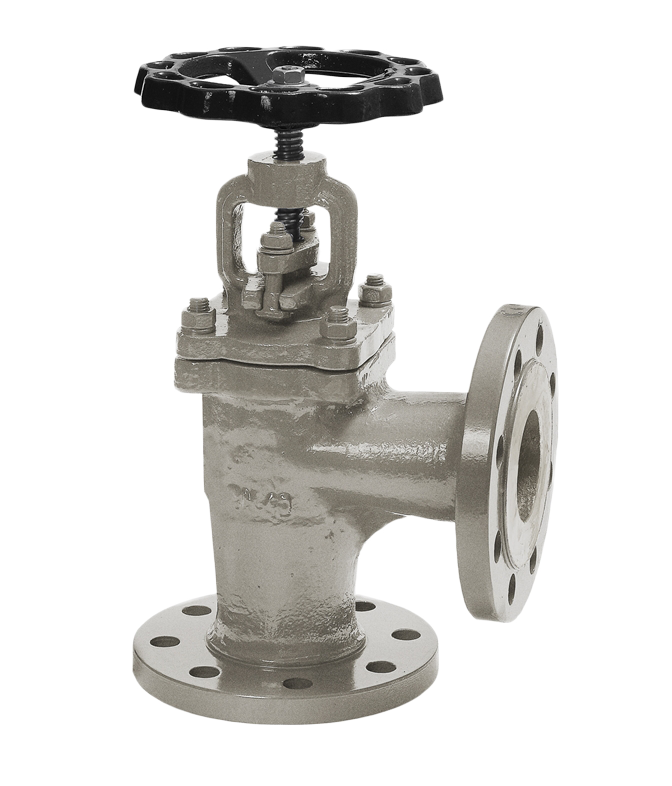

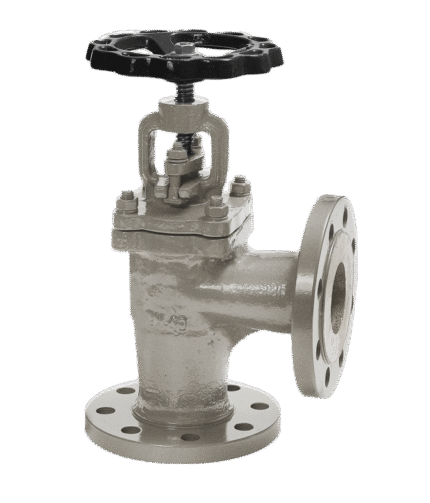

STEEL ANGLE VALVE DIN 3202 F32, PN 6

TECHNICAL DESCRIPTION

Angle valve with flange connection, metal-to-metal seal with extractable spindle. Possible variations of function depending on the design.

• shut-off valve
• check valve

WORKING FLUID / MEDIUM
• Water, steam, fuels, lubricating and flammable hydraulic oils, oil, air, non-flammable hydraulic fluids, boiler feed water, condensate. For thermal oil, the use of bellows valves is recommended.
• Sea water

Dimensions: DN 15 – 300

Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

Materials

No. DETAILS MATERIALS
1 Body steel 1.0619 (WCB)+13Cr
2 Saddle steel 1.0619 (WCB)+13Cr
3 Valve steel 1.0482 (A105)+13Cr
4 Garnish metal graphite
5 Packing gland graphite packing
6 Lid steel 1.0619 (WCB)
7 Spindle stainless steel EN 1.4021 2Cr13
8 Handwheel gasket EN-JS1025 (GGG40.3)

Features

SPECIFICATION
Standard DIN 3202 F1
Joining EN 1092-2
Construction length EN 558, series 1
Lid connection bolted
Execution angular
Joining flanged
Management manually with wheel
Drive multi-turn
Working temperature °C -29°C to 230°C
Dimensions
DN PN Flanges/PN L D ØP* nxd H M Weight (kg)
15 6 6 90 80 55 4x11 165 120 4.5
20 6 6 95 90 65 4x11 165 120 5.5
25 6 6 100 100 75 4x11 180 140 7
32 6 6 105 120 90 4x14 180 140 9
40 6 6 115 130 100 4x14 215 160 12
50 6 6 125 140 110 4x14 230 160 16
65 6 6 145 160 130 4x14 245 180 22.1
80 6 6 155 190 150 4x18 295 210 27.2
100 6 6 175 210 170 4x18 325 225 44
125 6 6 200 240 200 8x18 360 250 70
150 6 6 225 265 225 8x18 425 300 92.5
200 6 6 270 320 280 8x18 505 400 178

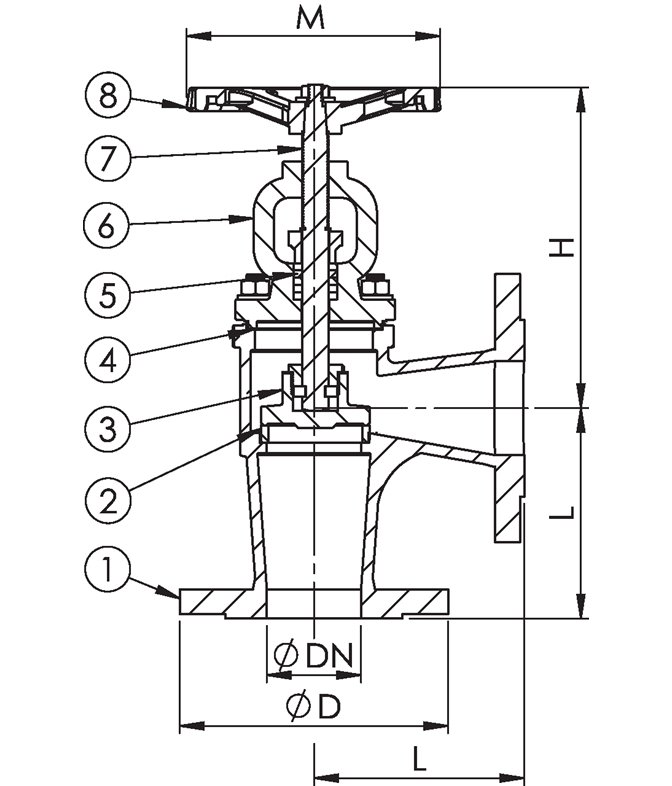

Note: The dimensions in column ØP should be considered as the diameters of the bolt circle, as the latter are not indicated in the drawing.
