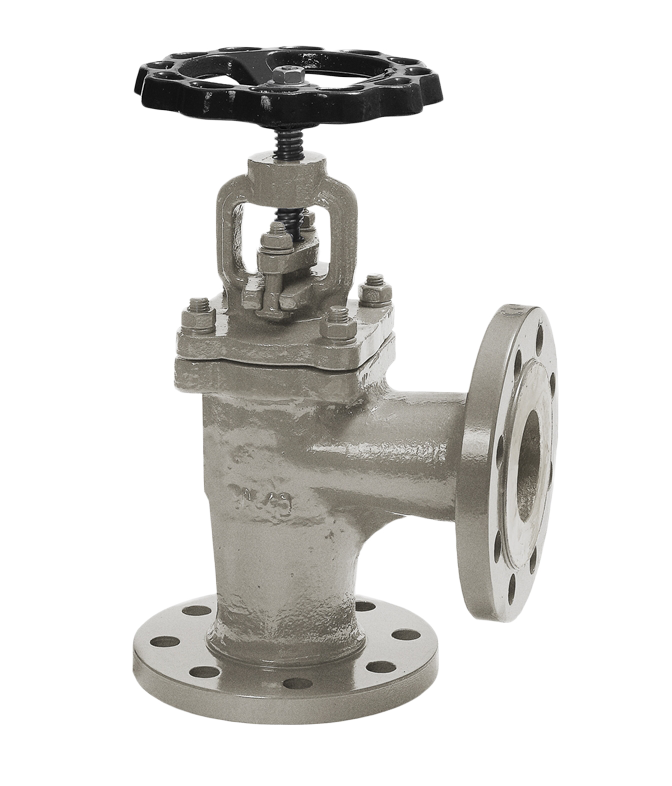

STEEL ANGLE VALVE DIN 3202 F32, PN 16
STEEL ANGLE VALVE DIN 3202 F32, PN 16
Back to products
STEEL ANGLE VALVE DIN 3202 F32, PN 6
STEEL ANGLE VALVE DIN 3202 F32, PN 6

STEEL ANGLE VALVE DIN 3202 F32, PN 40

TECHNICAL DESCRIPTION

Angle valve with flange connection, metal-to-metal seal with extractable spindle. Possible variations of function depending on the design

• shut-off valve
• check valve

WORKING FLUID / MEDIUM
• Water, steam, fuels, lubricating and flammable hydraulic oils, oil, air, non-flammable hydraulic fluids, boiler feed water, condensate. For thermal oil, the use of bellows valves is recommended.
• Sea water

Dimensions: DN 15 – 300

Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

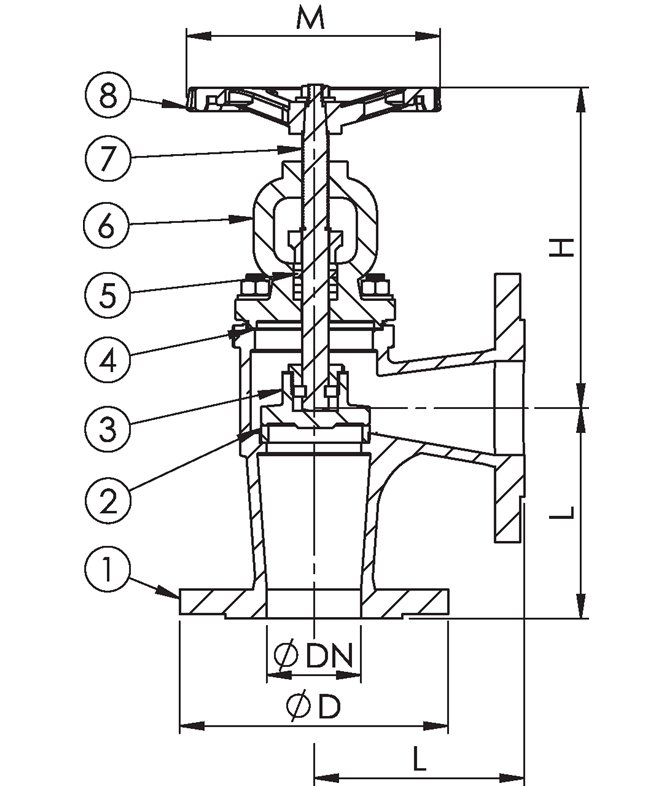

Materials

No. DETAILS MATERIALS
1 Body steel 1.0619 (WCB)+13Cr
2 Saddle steel 1.0619 (WCB)+13Cr
3 Valve steel 1.0482 (A105)+13Cr
4 Garnish metal graphite
5 Packing gland graphite packing
6 Lid steel 1.0619 (WCB)
7 Spindle stainless steel EN 1.4021 2Cr13
8 Handwheel gasket EN-JS1025 (GGG40.3)

Features

SPECIFICATION
Standard DIN 3202 F1
Joining EN 1092-2
Construction length EN 558, series 1
Lid connection bolted
Execution angular
Joining flanged
Management manually with wheel
Drive multi-turn
Working temperature °C -29°C to 425°C
Dimensions
DN PN Flanges/PN L D ØP* nxd H M Weight (kg)
15 40 40 90 95 65 4x14 165 120 4.5
20 40 40 95 105 75 4x14 165 120 5.5
25 40 40 100 115 85 4x14 180 140 7
32 40 40 105 140 100 4x18 180 140 9
40 40 40 115 150 110 4x18 215 160 12
50 40 40 125 165 125 4x18 230 160 16
65 40 40 145 185 145 8x18 245 180 22.1
80 40 40 155 200 160 8x18 295 210 27.2
100 40 40 175 220 190 8x22 325 225 44
125 40 40 200 250 220 8x26 360 250 70
150 40 40 225 285 250 8x26 425 300 92.5
200 40 40 270 340 320 12x30 505 400 178
Note: The dimensions in column ØP should be considered as the diameters of the bolt circle, as the latter are not indicated in the drawing.
