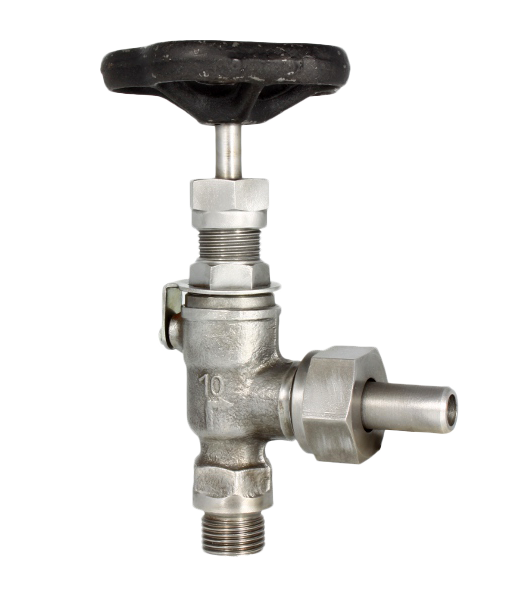

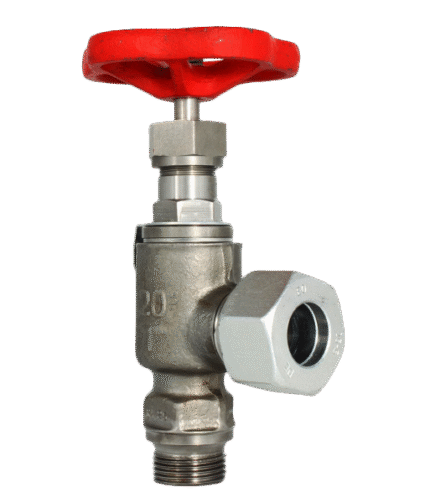

STEEL ANGLE STOP VALVE WITH WELDED END DS DIN86551 PN 100
TECHNICAL DESCRIPTION
They are used to transport water – hot and cold, oils, steam, neutral gases, seawater, fuels, air, etc.
IMPLEMENTATION AND OPTIONS
• non-return valve according to DIN 86511 type DRS
Dimensions: DN 6 – 32
Additional Information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | steel |
| 2 | Interior details | stainless steel 1.4104 |
| 3 | Seat seal | metal / metal |
Features
| SPECIFICATION | |
|---|---|
| Standard | DIN 86511 |
| Valve (type) | DS |
| Valve (type) | stopping |
| Lid connection | threaded / secured against unscrewing |
| Execution | angular |
| Login | thread |
| Exodus | welded sleeve |
| Management | manually with wheel |
| Drive | multi-turn |
| Temp. range [°C] | -10°C to 300°C |
Dimensions

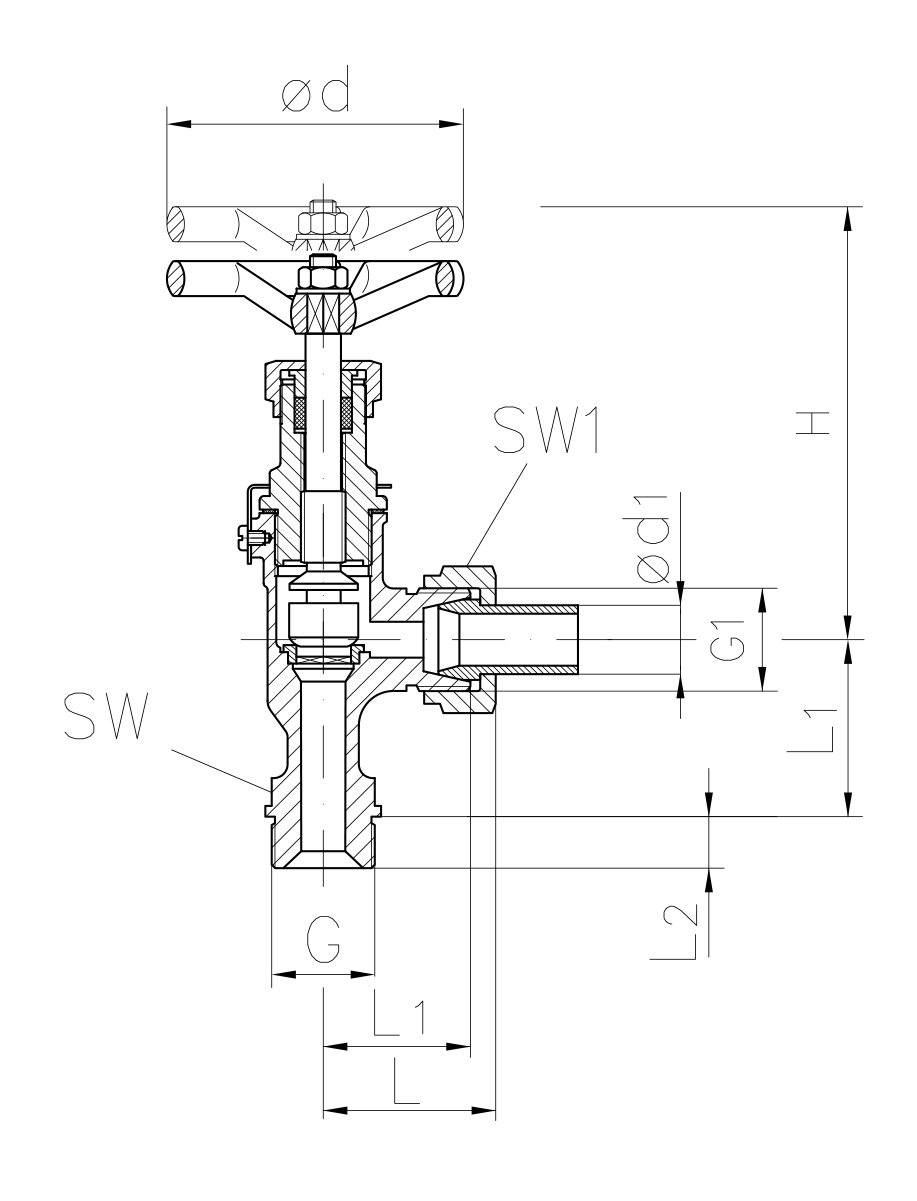

| DN | Ød1 | G | G1 | L | L1 | L2 | H | Ød | SW | SW1 | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 10 | 3/8 | 1/2 | 37 | 30 | 12 | 140 | 60 | 19 | 27 | 0.6 |
| 8 | 12 | 1/2 | 5/8 | 39 | 32 | 14 | 140 | 60 | 19 | 27 | 0.6 |
| 10 | 14 | 1/2 | 3/4 | 44 | 33 | 14 | 140 | 60 | - | - | 0.6 |
| 12 | 16 | 3/4 | 7/8 | 47 | 38 | 16 | 165 | 80 | 30 | 36 | 1.0 |
| 16 | 20 | 3/4 | 1 | 50 | 40 | 16 | 165 | 80 | 30 | 41 | 1.1 |
| 20 | 25 | 1 | 11/8 | 59 | 48 | 18 | 190 | 100 | 36 | 46 | 1.8 |
| 25 | 30 | 11/4 | 13/8 | 62 | 50 | 20 | 190 | 100 | 41 | 50 | 2.1 |
