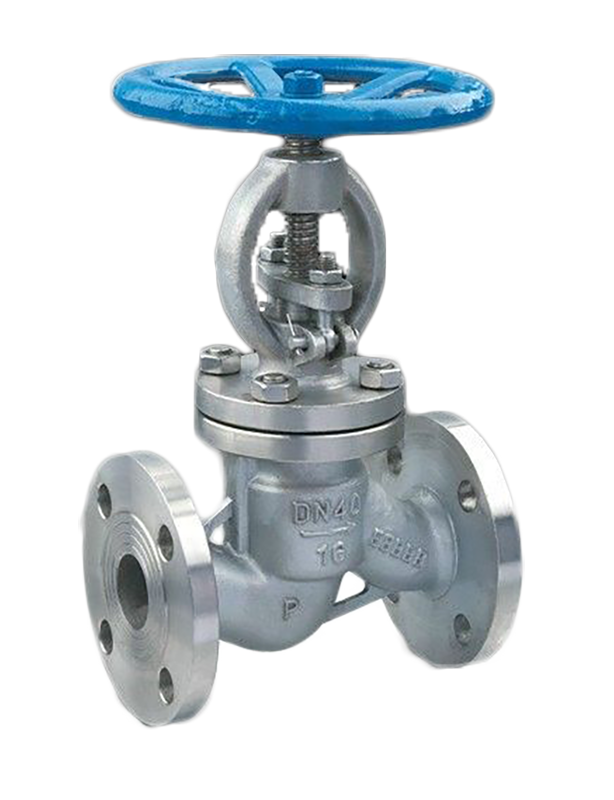

STAINLESS STEEL VALVE STRAIGHT DIN 3202 F1, PN 16
TECHNICAL DESCRIPTION
Straight valve, with flange connection. Possible variations of functions depending on the design.
• shut-off valve
• regulating valve
• check valve.
Sealing of the plug (valve) – metal to metal.
Type of the spindle (spindle) – extracting.
WORKING FLUID / MEDIUM
Water, steam, corrosive fluids, steam, thermal oil, fuels, lubricating oils and flammable hydraulic oils, petroleum, non-flammable hydraulic fluids, boiler feed water, condensate, seawater.
OPTIONS
Closing spring when used as a check valve.
Dimensions:DN 15 – 200
Additional information

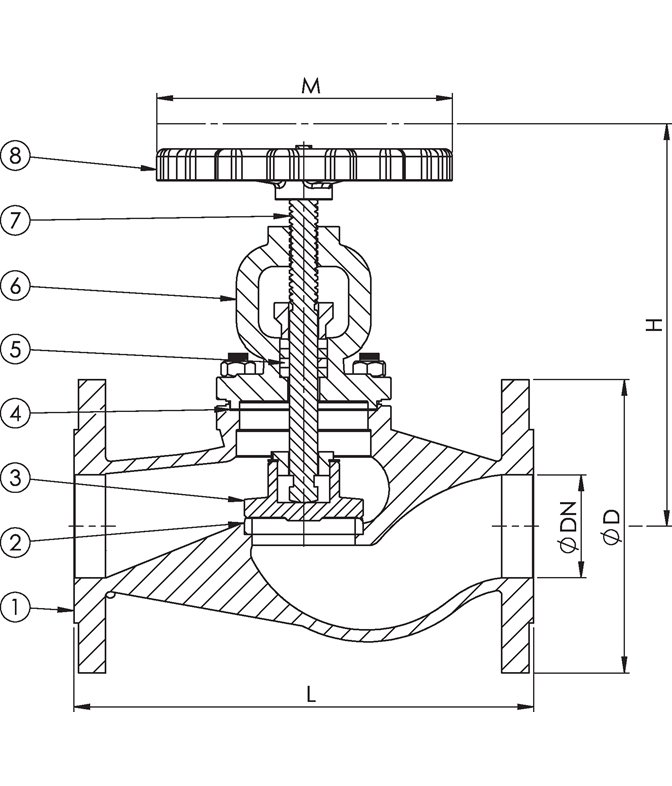

Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | stainless steel 1.4408 (AISI AISI 316) |
| 2 | Saddle | stainless steel 1.4401 (AISI AISI 316) |
| 3 | Valve | stainless steel 1.4401 (AISI AISI 316) |
| 4 | Garnish | graphite |
| 5 | Oil seal | graphite packing |
| 6 | Lid | stainless steel 1.4408 (AISI AISI 316) |
| 7 | Spindle | stainless steel 1.4401 (AISI AISI 316) |
| 8 | Handwheel | ductile iron EN-JL1030 (GGG 40) |
Features
| SPECIFICATION | |
|---|---|
| Standard | DIN 3202 F1 |
| Joining | EN 1092-2 |
| Construction length | EN 558, series 1 |
| Lid connection | bolted |
| Execution | straight |
| Joining | flanged |
| Management | manually with wheel |
| Drive | multi-turn |
| T max. °C | 350 °C |
Dimensions
| DN | PN | Flanges/PN | L | D | ØP* | nxd | H | M | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 15 | 16 | 16 | 130 | 95 | 65 | 4x14 | 165 | 120 | 3.9 |
| 20 | 16 | 16 | 150 | 105 | 75 | 4x14 | 165 | 120 | 4.3 |
| 25 | 16 | 16 | 160 | 115 | 85 | 4x14 | 180 | 140 | 5.4 |
| 32 | 16 | 16 | 180 | 140 | 100 | 4x18 | 180 | 140 | 7 |
| 40 | 16 | 16 | 200 | 150 | 110 | 4x18 | 215 | 160 | 9.5 |
| 50 | 16 | 16 | 230 | 165 | 125 | 4x18 | 230 | 160 | 12.9 |
| 65 | 16 | 16 | 290 | 185 | 145 | 4x18 | 245 | 180 | 17.4 |
| 80 | 16 | 16 | 310 | 200 | 160 | 8x18 | 295 | 210 | 24.5 |
| 100 | 16 | 16 | 350 | 220 | 180 | 8x18 | 325 | 225 | 34.7 |
| 125 | 16 | 16 | 400 | 250 | 210 | 8x18 | 360 | 250 | 52 |
| 150 | 16 | 16 | 480 | 285 | 240 | 8x22 | 425 | 300 | 78 |
| 200 | 16 | 16 | 600 | 340 | 295 | 12x22 | 505 | 400 | 247 |
| Note: The dimensions in column ØP should be considered as the diameters of the bolt circle, as the latter are not indicated in the drawing. | |||||||||
Related products
Select options
This product has multiple variants. The options may be chosen on the product page
BRASS ANGLE VALVE WITH THREADED COVER DIN 3202 F32, PN 16
Select options
This product has multiple variants. The options may be chosen on the product page
BRONZE ANGLE VALVE WITH BOLT COVER DIN 3202 F32, PN 16
Select options
This product has multiple variants. The options may be chosen on the product page
BRONZE THREADED STRAIGHT VALVE DIN 3202 F1, PN 16
Select options
This product has multiple variants. The options may be chosen on the product page

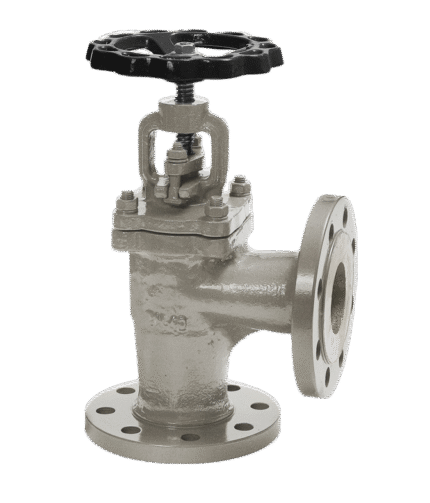

CAST IRON ANGLE VALVE DIN 3202 F32, PN 6
Select options
This product has multiple variants. The options may be chosen on the product page

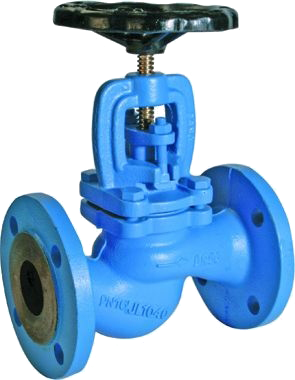

CAST IRON VALVE STRAIGHT DIN 3202 F1 PN 16
