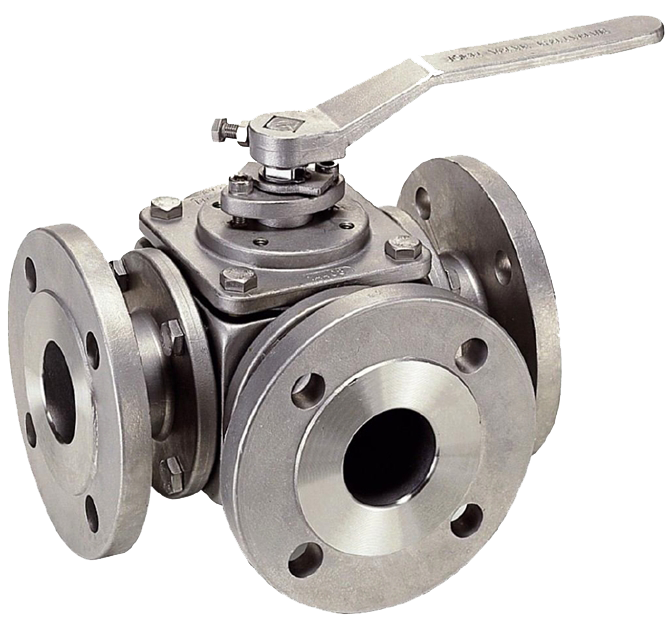

STAINLESS STEEL THREE-WAY FLANGED BALL VALVE • DIN PN 16

TECHNICAL DESCRIPTION

Three-way ball valve with L or T flow pattern. Full flow.

• Activated by turning 90°.
• Full flow.
• Body and covers connected by threaded connection.
• Connection – flange

WORKING FLUID / MEDIUM

• Water, steam, corrosive fluids, fuels, lubricating and hydraulic oils, petroleum, air, gas, non-flammable hydraulic fluids.
• Boiler feed water, condensate.
• Sea water.

EXECUTION

• Various materials on request.

OPTIONS

• L or T patency scheme.

Dimensions: DN 25 – 100

Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

Materials

No. DETAILS MATERIALS
1 Body stainless steel 1.4408 (AISI 316)
2 Lid stainless steel 1.4408 (AISI 316)
3 Sphere stainless steel 1.4408 (AISI 316)
4 Saddle Teflon/PTFE
5 Bearing / spindle Teflon/PTFE
6 Top cover stainless steel 1.4408 (AISI 316)
7 Spindle seal Teflon/PTFE

Features

SPECIFICATION
Standard DIN 3202 F1
Joining EN 1092-2
Construction length EN 558, series 1
Execution straight
Joining flanged
Management with handle
Drive sectoral
T max. °C 180 °C

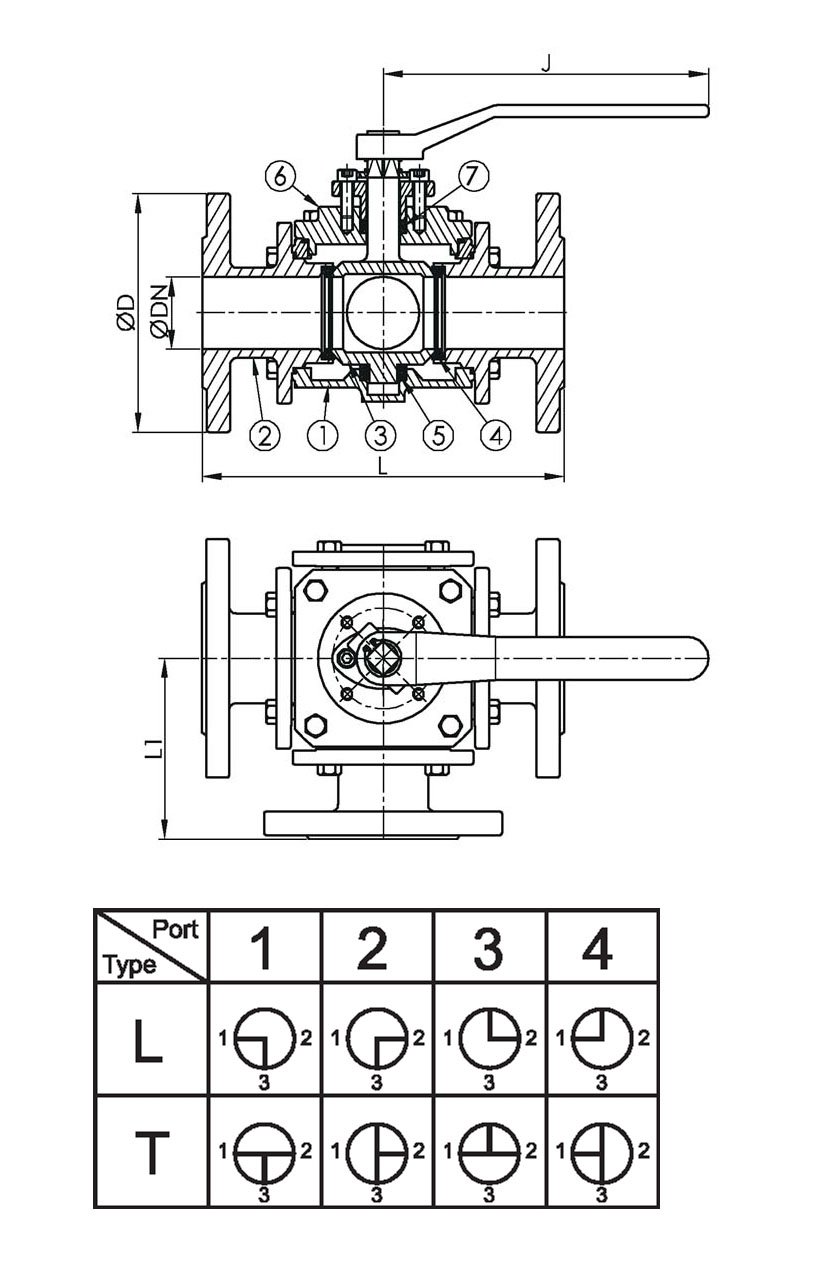

Dimensions
Scheme-L
DN PN Flanges/PN L D P nxd H J Weight (kg)
25 16 16 225 115 85 4x14 112.5 170 10
40 16 16 242 150 110 4x18 121 172 15
50 16 16 250 165 125 4x18 125 225 22
65 16 16 285 185 145 8x18* 142.5 225 30
80 16 16 297 200 160 8x18 148.5 335 43
100 16 16 339 220 180 8x18 169.5 335 59
DN65 - nxd - 4 x 18
