STAINLESS STEEL THREE-WAY BALL VALVE THREADED • DIN PN 63
TECHNICAL DESCRIPTION
Three-way ball valve with L or T flow pattern. Full flow.
• Activated by turning 90°.
• Full passability.
• Body and covers connected by threaded connection.
• Connection – threaded
WORKING FLUID / MEDIUM
• Water, steam, corrosive fluids, fuels, lubricating and hydraulic oils, petroleum, air, gas, non-flammable hydraulic fluids.
• Boiler feed water, condensate.
• Sea water.
EXECUTION
• Various materials on request.
OPTIONS
• L or T flow pattern.
• Discharge opening on the sphere.
Dimensions:G 1/4″ – 2″
Additional information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | stainless steel 1.4408 (AISI316) |
| 2 | Sphere (wide hole) | stainless steel 1.4408 (AISI316) |
| 3 | Saddle | Teflon/PTFE |
| 4 | Spindle | stainless steel 1.4401 (AISI316) |
Features
| SPECIFICATION | |
|---|---|
| Standard | DIN |
| Joining Standard | ISO 228-1. BSPP |
| Construction length | EN 558, series 1 |
| Execution | straight |
| Joining | threaded |
| Management | with handle |
| Drive | sectoral |
| T max. °C | 180 °C |
Dimensions

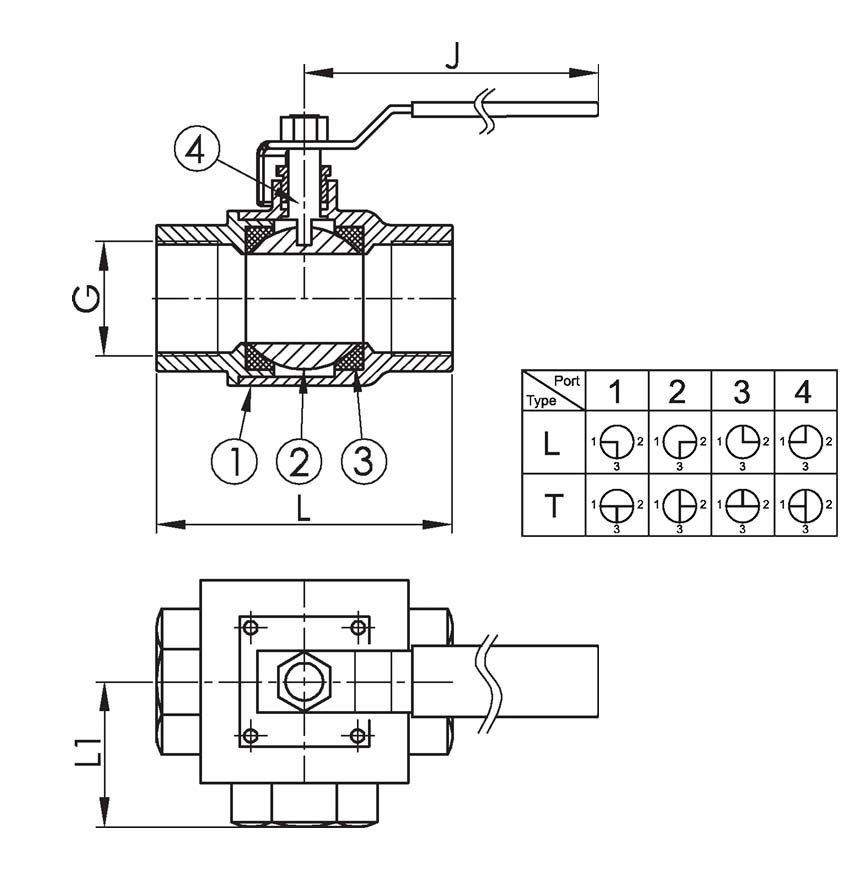

| Scheme-L | ||||||
|---|---|---|---|---|---|---|
| DN | PN | Thread/G | L | H | J | Weight (kg) |
| 8 | 63 | G 1/4" | 77.8 | 38.9 | 147 | 0.9 |
| 10 | 63 | G 3/8" | 77.8 | 38.9 | 147 | 0.9 |
| 15 | 63 | G 1/2" | 77.8 | 38.9 | 147 | 0.9 |
| 20 | 63 | G 3/4" | 85.5 | 42.8 | 191 | 1.4 |
| 25 | 63 | G1" | 106.1 | 53.1 | 191 | 1.9 |
| 32 | 63 | G 1 1/4" | 123.1 | 61.6 | 230 | 3.1 |
| 40 | 63 | G 1 1/2" | 131.2 | 65.6 | 245 | 4.5 |
| 50 | 63 | G 2" | 159.4 | 797 | 245 | 7.5 |
| DN65 - nxd - 4 x 18 | ||||||
