STAINLESS STEEL THREADED STRAIGHT VALVE DIN, PN 25
TECHNICAL DESCRIPTION
Stainless steel straight valve with stainless steel sealing ring on the plug, female BSP thread connection according to DIN 259, with threaded cover, extractable spindle with concealed thread.
ANNEX
Stainless steel valves are widely used in the chemical industry, medical technology, paint production plants, and are used when working with aggressive fluids and environments.
EXECUTION
Position indicator
Various body materials
Dimensions:DN 8 – 50; 1/4″ – 2″
Additional information

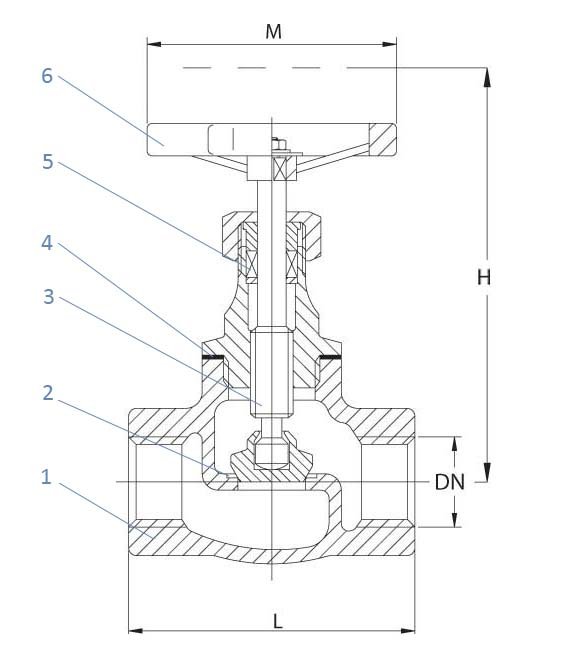

Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | stainless steel 1.4408 |
| 2 | Saddle | stainless steel 1.4408 |
| 3 | Spindle | stainless steel 1.4541 |
| 4 | Lid seal | Teflon/PTFE |
| 5 | Oil seal | sealant (Teflon/PTFE) |
| 6 | Handwheel | stainless steel |
Features
| SPECIFICATION | |
|---|---|
| Standard | DIN |
| Joining | female thread BSPP |
| Construction length | factory standard |
| Lid connection | threaded |
| Execution | straight |
| Management | manually with wheel |
| Drive | multi-turn |
| Valve type | fixed disk |
| T max. °C at 5 Bar | 205 °C |
Dimensions
| DN | PN | BSPP thread | L | H | M | Weight (kg) |
|---|---|---|---|---|---|---|
| 8 | Ru 25 | 1/4" | 52 | 102 | 58 | 0.54 |
| 10 | Ru 25 | 3/8" | 52 | 102 | 58 | 0.54 |
| 15 | Ru 25 | 1/2" | 52 | 102 | 58 | 0.54 |
| 20 | Ru 25 | 3/4" | 60 | 113 | 58 | 0.84 |
| 25 | Ru 25 | 1" | 72 | 123 | 86 | 1.25 |
| 32 | Ru 25 | 1 1/4" | 80 | 148 | 86 | 1.66 |
| 40 | Ru 25 | 1 1/2" | 90 | 160 | 98 | 2.02 |
| 50 | Ru 25 | 2" | 106 | 180 | 98 | 3.4 |
Related products
Select options
This product has multiple variants. The options may be chosen on the product page
BRASS VALVE WITH THREADED COVER DIN 3202 F1, PN 16
Select options
This product has multiple variants. The options may be chosen on the product page

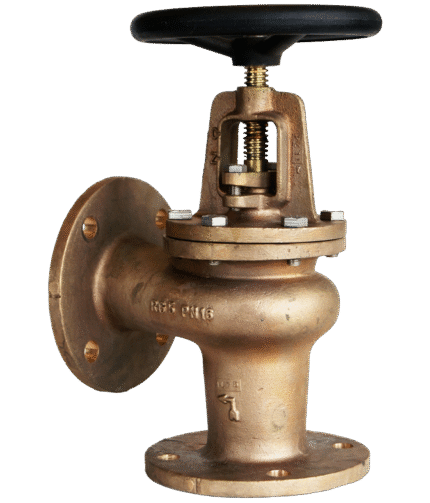

BRONZE ANGLE VALVE WITH BOLT COVER DIN 3202 F32, PN 16
Select options
This product has multiple variants. The options may be chosen on the product page

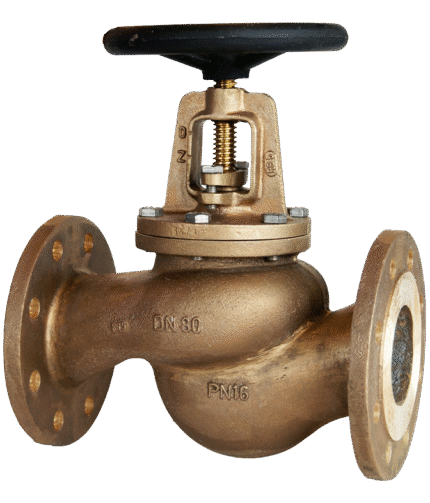

BRONZE STRAIGHT VALVE WITH BOLT COVER DIN 3202 F1, PN 16
Select options
This product has multiple variants. The options may be chosen on the product page

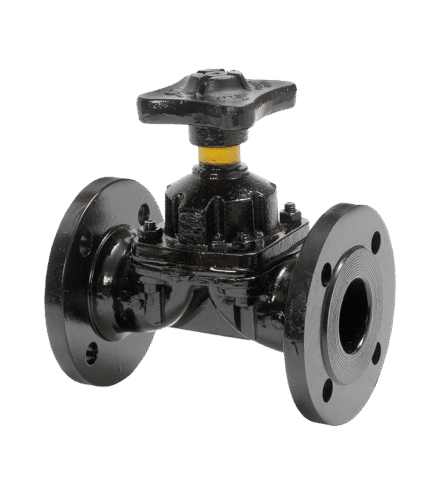

DIN FLANGED DIAPHRAGM VALVE
Select options
This product has multiple variants. The options may be chosen on the product page
STEEL ANGLE VALVE DIN 3202 F32, PN 10
Select options
This product has multiple variants. The options may be chosen on the product page

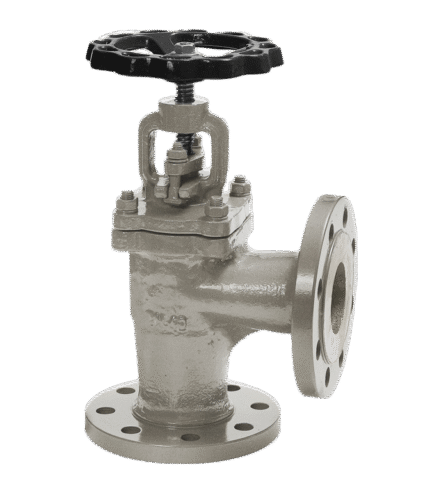

STEEL ANGLE VALVE DIN 3202 F32, PN 6
Select options
This product has multiple variants. The options may be chosen on the product page

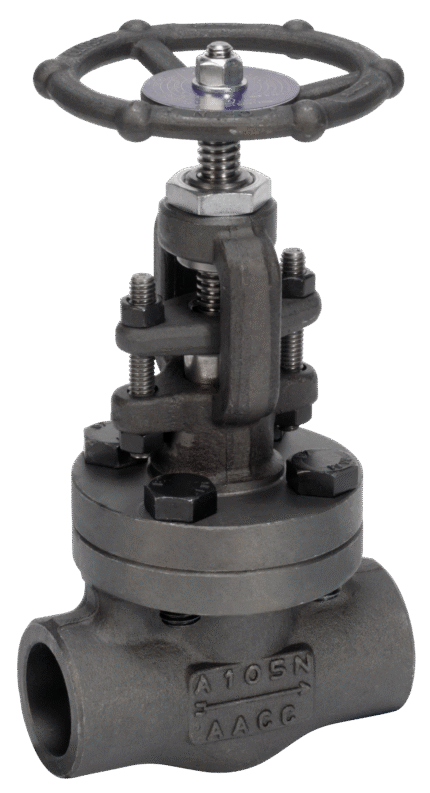

STEEL FORGED VALVE, WELDED SW ANSI #800
