STAINLESS STEEL SYPHON FOR MANOMETER TYPE “U” PN 100
APPLICATIONS
Siphon (trumpet) for pressure gauge. They are used by being installed before the pressure gauge, in order to protect the Bourdon tube from the direct impact of the measured fluid.
VARIANTS
Connection: Threaded
Dimensions:•BSPP G1/2″, G1/4″, G3/8″
Metric M20 x 1.5″
Additional Information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | stainless steel seamless pipe AISI 304 / AISI 316 |
Features
| SPECIFICATION | |
|---|---|
| Standard | DIN |
| P max. working pressure | 100 Bar |
| Connection | threaded |
| Inlet | 1/2" |
| G 1/4" | |
| G 3/8" | |
| M20 x 1.5 | |
| Outlet | 1/2" |
| G 1/4" | |
| G 3/8" | |
| M20 x 1.5 | |
| Form | U |

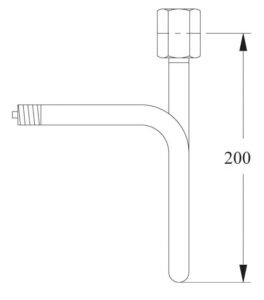

Dimensions
| DN | accession | working pressure (Bars) | (kg) |
|---|---|---|---|
| 6 | G1/4" | 0 - 100.0 | 0.760 |
| 6 | G3/8" | 0 - 100.0 | 0.760 |
| 10 | G1/2" | 0 - 100.0 | 0.760 |
| 10 | M20 x 1.5 | 0 - 100.0 | 0.760 |
