STAINLESS STEEL MANOMETER SYPHON TYPE “PIGTAIL” PN 40
APPLICATIONS
Syphon (trumpet) for pressure gauge. They are used by being installed before the pressure gauge, in order to protect the Bourdon tube from the direct impact of the measured fluid.
VARIANTS
Connection: Male/Male
Dimensions: BSPP G1/2″; M20x1,5
Additional Information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | seamless pipe stainless steel AISI 304 / AISI 316 |
Features

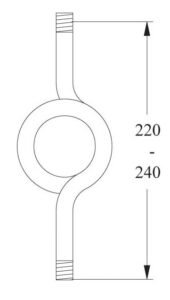

Dimensions
| Standard | Max. working pressure | Joining | Joining (inlet) | Joining (inlet, metric) | Joining (outlet) | Joining (outlet, metric) | Form |
|---|---|---|---|---|---|---|---|
| DIN 16282 | 40 Bar | Threaded | 1/2" | M20 x 1.5" | 1/2" | M20 x 1.5" | Pigtail |
