STAINLESS STEEL THREE-WAY FLANGED BALL VALVE • DIN PN 16
STAINLESS STEEL THREE-WAY FLANGED BALL VALVE • DIN PN 16
Back to products
STAINLESS STEEL FLANGED BALL VALVE 3-PIECE • DIN PN 25
STAINLESS STEEL FLANGED BALL VALVE 3-PIECE • DIN PN 25

STAINLESS STEEL FLANGED BALL VALVE 3-PIECE • DIN PN 16

TECHNICAL DESCRIPTION

Ball valves are mainly used as shut-off elements in fluid transfer systems where high permeability is required.

• Operated by turning 90°.
• Full passage.
• Body of three parts connected together by bolted connection.
• Drive flange ISO 5211.
• Spindle – antistatic.

WORKING FLUID / MEDIUM

• Water, steam, corrosive fluids, fuels, lubricating and hydraulic oils, petroleum, air, gas, non-flammable hydraulic fluids.
• Boiler feed water, condensate.
• Sea water.

EXECUTION

• Various materials on request

OPTIONS

• Discharge opening on the sphere.

Dimensions: DN-65-100

Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

Materials

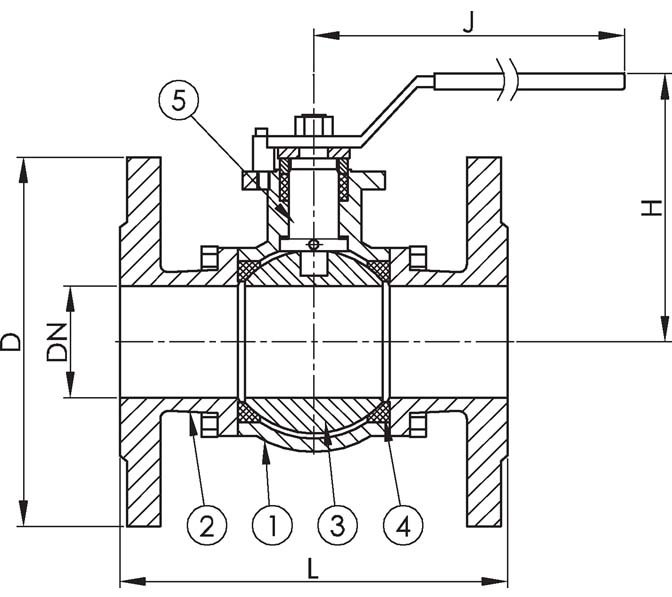

No. DETAILS MATERIALS
1 Body stainless steel 1.4301/1.4408 (AISI304/316)
2 Lid stainless steel 1.4301/1.4408 (AISI304/316)
3 Sphere stainless steel 1.4301/1.4408 (AISI304/316)
4 Saddle Teflon/PTFE
5 Spindle stainless steel 1.4408 (AISI316)

Features

SPECIFICATION
Standard DIN 3202 F1
Joining EN 1092-2
Construction length EN 558, series 1
Execution straight
Joining flanged
Management with handle
Drive sectoral
T max. °C 170 °C



Dimensions
DN PN Flanges/PN L D P nxd H J Weight (kg)
65 16 16 290 185 145 4x18 178 290 16
80 16 16 310 200 160 8x18 185 290 21
100 16 16 350 220 180 8x18 183 285 36
