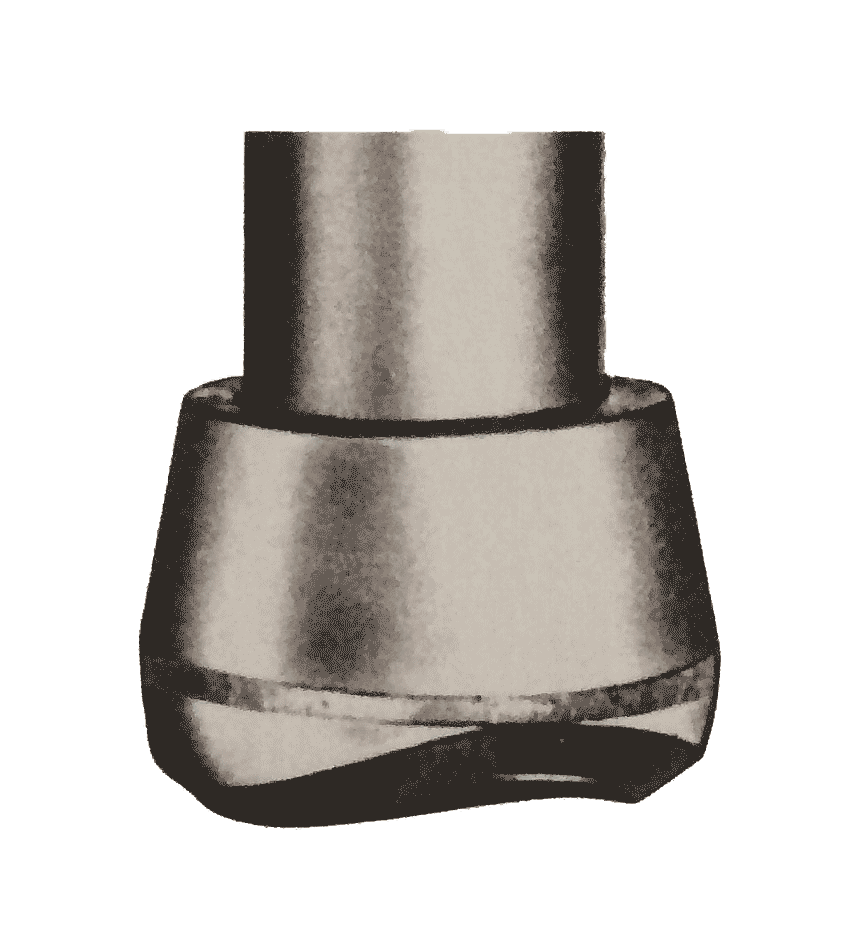

SOKOLET / ASME B.31
TECHNICAL DESCRIPTION
Sokolets are welded joints that are used as deviations in pipelines.
Dimensions: 1″ – 1 1/2″
Additional information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Socolette | steel A105 |
| other steels - on request | ||
| stainless steels - upon request |
Features
| SPECIFICATION | |
|---|---|
| Standard | ASME B.31 |
Dimensions
| Ø | Ø | SCH | B | C | D | E | F | G | I |
|---|---|---|---|---|---|---|---|---|---|
| main pipe | exit - deviation | mm | mm | mm | mm | mm | mm | mm | |
| 2" | 1" | SCH 160 | 54.0 | 36.5 | 26.6 | 33.8 | 46.0 | 13.5 | 19.8 |
| 4" - 5" | 1" | SCH 160 | 54.0 | 36.5 | 26.6 | 33.8 | 46.0 | 13.5 | 19.8 |
| 6" - 10" | 1" | SCH 160 | 54.0 | 36.5 | 26.6 | 33.8 | 46.0 | 13.5 | 19.8 |
| 3 1/2" - 4" | 1 1/2" | SCH 80 | 73.0 | 50.8 | 40.9 | 48.6 | 61.9 | 15.1 | 19.8 |
Related products
Select options
This product has multiple variants. The options may be chosen on the product page

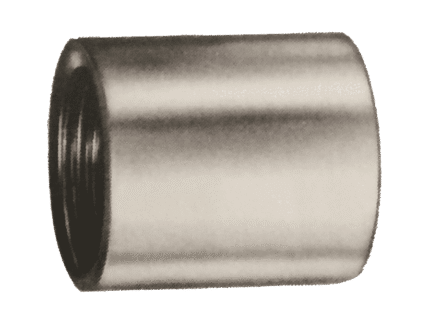

COUPLING / EN10241, TABLE 12
Select options
This product has multiple variants. The options may be chosen on the product page
DOUBLE NIPPLE EN10241 TABLE 14
Select options
This product has multiple variants. The options may be chosen on the product page
NIPPLE DOUBLE LONG ISO 7-1 EN10241 TABLE 23C
Select options
This product has multiple variants. The options may be chosen on the product page

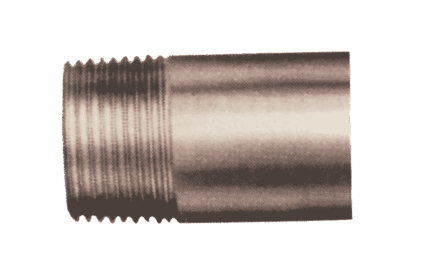

NIPPLE SINGLE SIDE ISO 7-1 EN10241
Select options
This product has multiple variants. The options may be chosen on the product page

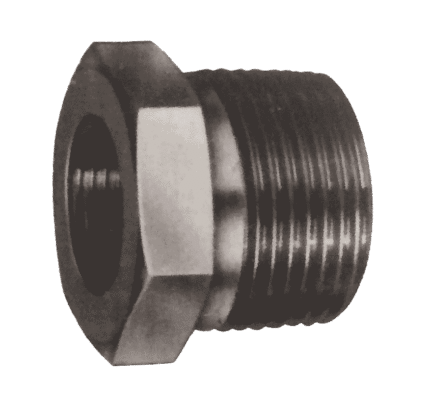

NIPPLE TRANSITION ISO 7-1 TYPE BPH EN10241 TABLE 15
Select options
This product has multiple variants. The options may be chosen on the product page

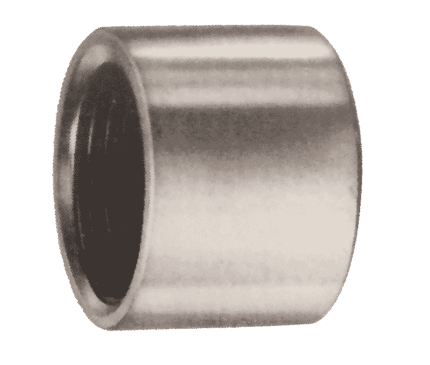

PLUG ISO 7-1 EN10241
