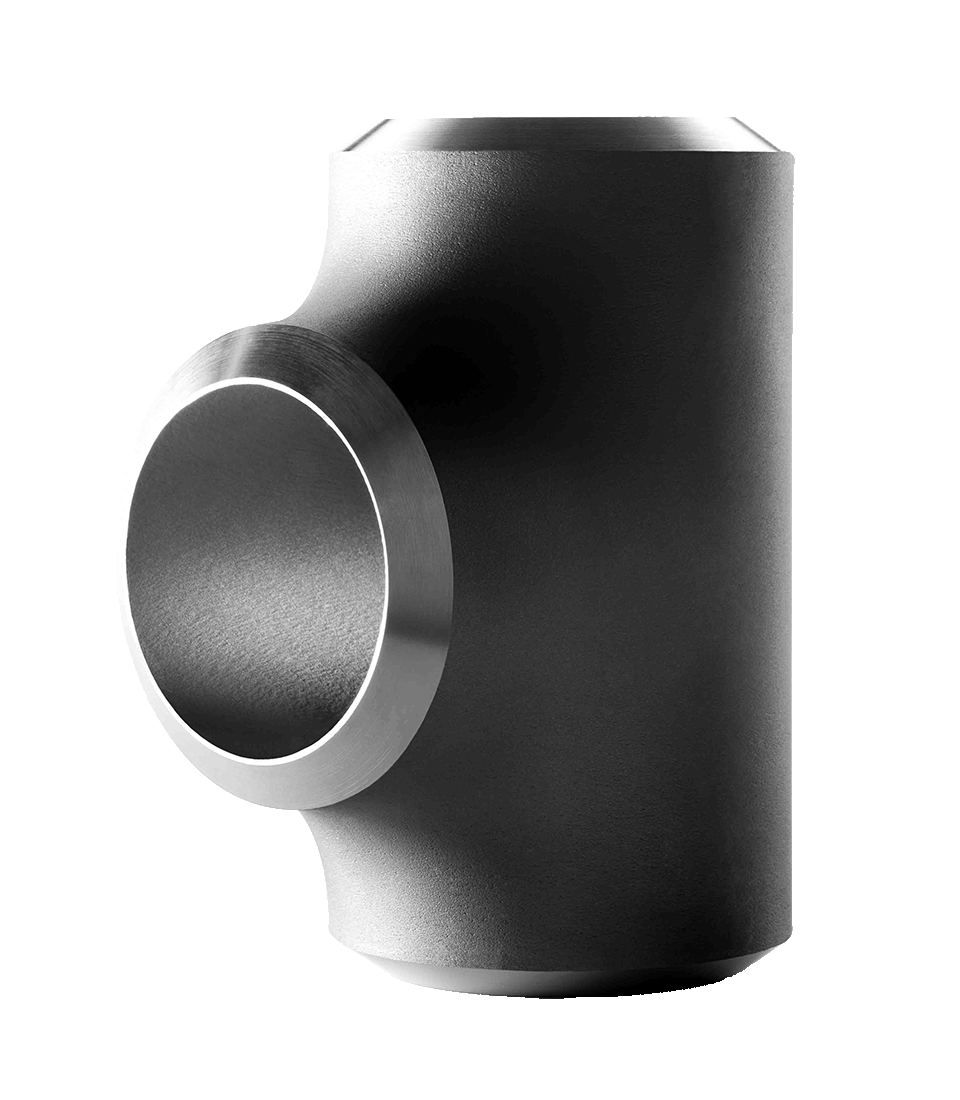

SEAMLESS STEEL TEE BW DIN2615-1

TECHNICAL DESCRIPTION

• Tees are connecting elements that provide a connection with a deviation from the pipeline.
• They provide the connection of three pipe elements with the same or different diameters.
• They are divided into tees with equal outlets and those with a reduced “T” outlet.

Dimensions: Ø 33.4 – 406.4

Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

Materials

No. DETAILS MATERIALS
1 Tee steel P265GH; A 234 WPB
other steels - on request
stainless steels - upon request

Features

SPECIFICATION
Standard DIN 2615-1
DN DN 15 - DN 500
Wall thickness type │ 3 │ 4 │ 5 │

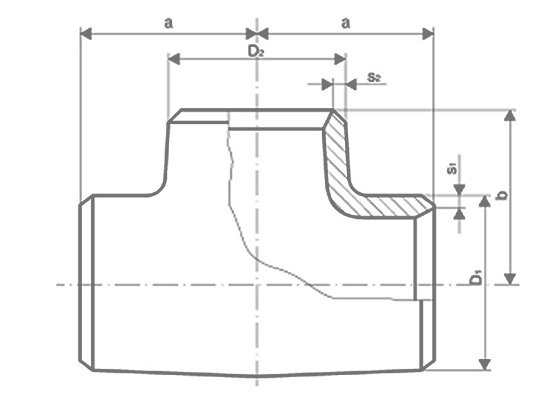

Dimensions
Wall thickness S1 Wall thickness S2/kg Dimensions
DN input ØD1 3 4 5 DN output ØD2 3 kg 4 kg 5 kg a b
15 21.3 2 3.2 4 15 21.3 2 0.09 3.2 0.12 4.3 0.15 25 25
2 3.2 10 17.2 1.8 0.09 2.9 0.12
20 26.9 2.3 3.2 4 20 26.9 2.3 0.05 3.2 0.2 4 0.22 29 29
2.3 3.2 4 15 21.3 2 0.15 3.2 0.2 4.3 0.22
2.3 3.2 10 17.2 1.8 0.15 2.9 0.2
25 33.7 2.6 3.2 4 25 33.7 2.6 0.26 3.2 0.3 4.3 0.38 38 38
2.6 3.2 4 20 26.9 2.3 0.26 3.2 0.3 4 0.38
2.6 3.2 4 15 21.3 2 0.26 3.2 0.3 4 0.38
32 42.4 2.6 3.6 4 32 42.4 2.6 0.42 3.6 0.57 4 0.64 48 45
2.6 3.6 4 25 33.7 2.6 0.42 3.2 0.57 4 0.64
2.6 3.6 4 20 26.9 2.3 0.42 3.2 0.57 4.3 0.64
2.6 3.6 4 15 21.3 2 0.42 3.2 0.57 4 0.64
40 48.3 2.6 4 5 40 48.3 2.6 0.59 4 0.85 5.3 1.05 57 57
2.6 4 5 32 42.4 2.6 0.59 3.6 0.85 4 1.05
2.6 4 5 25 33.7 2.6 0.59 3.2 0.85 4 1.05
2.6 4 5 20 26.9 2.3 0.59 3.2 0.85 4 1.05
50 60.3 2.9 4.5 5.6 50 60.3 2.9 0.83 4.5 1.25 5.6 1.5 64 64
2.9 4.5 5.6 40 48.3 2.6 0.79 4 1.25 5.3 1.5 60
2.9 4.5 5.6 32 42.4 2.6 0.76 3.6 1.2 4 1.45 57
2.9 *.5 5.6 25 33.7 2.6 0.72 3.2 1.2 4.3 1.4 51
2.9 4.5 5.6 20 26.9 2.3 0.72 3.2 1.2 4 1.4 44
65 76.1 2.9 5 7.1 65 76.1 2.9 1.29 5 2 7.1 2.85 76 67
2.9 5 7.1 50 60.3 2.9 1.2 4.5 1.9 5.6 2.7 70
2.9 5 7.1 40 48.3 2.6 1.16 4 1.85 5 2.65 67
2.9 5 7.1 32 42.4 2.6 1.12 3.6 1.85 4 2.65 64
2.9 5 7.1 25 33.7 2.6 1.1 3.2 1.8 4.3 2.6 57
80 88.9 3.2 5.6 8 80 88.9 3.2 1.85 5.6 3.1 8 4.2 86 86
3.2 5.6 8 65 76.1 2.9 1.85 5 3.1 7.1 4.2 83
3.2 5.6 8 50 60.3 2.9 1.8 4.5 2.9 5.6 4 76
3.2 5.6 8 40 48.3 2.6 1.7 4 2.8 5.3 4 73
3.2 5.6 8 32 42.4 2.6 1.7 3.6 2.8 4 3.9 70
100 114.3 3.6 6.3 8.8 100 114.3 3.6 3.1 6.3 5.3 8.8 7.2 105 108
3.6 6.3 8.8 80 88.9 3.2 3 5.6 5.1 8 6.9 98
3.6 6.3 8.8 65 76.1 2.9 2.9 5 5 7.1 6.8 95
3.6 6.3 8.8 50 60.3 2.9 2.9 4.5 4.85 5.6 6.6 89
3.6 6.3 8.8 40 48.3 2.6 2.8 4 4.8 5.3 6.5 86
125 139.7 4 6.3 10 125 139.7 4 4.8 6.3 7.4 10 11.5 124 124
4 6.3 10 100 114.3 3.6 4.7 6.3 7.2 8.8 11.3 117
4 6.3 10 80 88.9 3.2 4.6 5.6 7 8 11 111
4 6.3 10 65 76.1 2.9 4.6 5 6.8 7.1 10.9 108
4 6.3 10 50 60.3 2.9 4.5 4.5 6.8 5.6 10.9 105
150 168.3 4.5 7.1 11 150 168.3 4.5 7 7.1 11 11 16.8 143 143
4.5 /.1 11 125 139.7 4 6.9 6.3 10.8 10 16.6 137
4.5 7.1 11 100 114.3 3.6 6.7 6.3 10.7 8.8 16.3 130
4.5 7.1 11 80 88.9 3.2 6.6 5.6 10.4 8 16 124
4.5 7.1 11 65 76.1 2.9 6.5 5 10.2 7.1 15.8 121
200 219.1 6.3 8 12.5 200 219.1 6.3 14.9 8 19.1 12.5 29.8 178 178
6.3 8 12.5 150 168.3 4.5 14.4 7.1 18.4 11 28.8 168
6.3 8 12.5 125 139.7 4 13.6 6.3 17.4 10 27.6 162
6.3 8 12.5 100 114.3 3.6 13.6 6.3 17.4 8.8 27.6 156
6.3 8 12.5 80 88.9 3.2 13.6 5.6 17.4 8 27.6 152
250 273 6.3 8.8 14.2 250 273 6.3 22 8.8 31 14.2 51 216 216
6.3 8.8 14.2 200 219.1 6.3 20.3 8 30.5 12.5 51 203
6.3 8.8 14.2 150 168.3 4.5 20.3 7.1 30.5 11 50.5 194
6.3 8.8 14.2 125 139.7 4 19.3 6.3 30 10 50.5 191
6.3 8.8 14.2 100 114.3 3.6 19 6.3 30 8.8 50 184
300 323.9 7.1 10 16 300 323.9 7.1 35 10 49.4 16 92 254 254
7.1 10 16 250 273 6.3 34.1 8.8 47.5 14.2 92 241
7.1 10 16 200 219.1 6.3 34.1 8 47.5 12.5 92 229
7.1 10 16 150 168.3 4.5 34.1 7.1 46.5 11 92 219
7.1 10 16 125 139.7 4 34 6.3 46 10 92 216
350 355.6 8 11 17.5 350 355.6 8 60 11 86 17.5 130 279 279
8 11 17.5 300 323.9 7.1 60 10 86 16 130 270
8 11 17.5 250 273 6.3 60 8.8 86 14.2 130 257
8 11 17.5 200 219.1 6.3 54 8 76 12.5 116 248
8 11 17.5 150 168.3 4.5 54 7.1 76 11 116 238
400 406.4 8.8 12.5 20 400 406.4 8.8 82 12.5 118.0 20 182 305 305
8.8 12.5 20 350 355.6 8 82 11 118.0 17.5 182 305
8.8 12.5 20 300 323.9 7.1 82 10 118.0 16 182 295
8.8 12.5 20 250 273 6.3 82 8.8 118.0 14.2 182 283
8.8 12.5 20 200 219.1 6.3 74 8 106 12.5 132 273
500 508 11 16 25 500 508 11 160 16 245 25 348 381 381
11 16 25 400 406.4 8.8 160 14.2 245 22.2 348 368
11 16 25 350 355.6 8 160 12.5 195 20 306 356
11 16 25 300 323.9 7.1 160 11 195 17.5 306 356
11 16 25 250 273 6.3 160 10 195 16 306 346
