SEAMLESS STEEL TEE BW ANSI B16.9
TECHNICAL DESCRIPTION
• Tees are connecting elements that provide a connection with a deviation from the pipeline.
• They provide the connection of three pipe elements with the same or different diameters.
• They are divided into tees with equal outlets and those with a reduced “T” outlet.
Dimensions:Ø 21.3 – 508.0
Additional information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Tee | steel P265GH; A 234 WPB |
| other steels - on request | ||
| stainless steels - upon request |
Features
| SPECIFICATION | |
|---|---|
| Standard | ANSI B16.9 |
| DN | 1" - 16" |
| Wall thickness | STD, SCH40 |
Dimensions

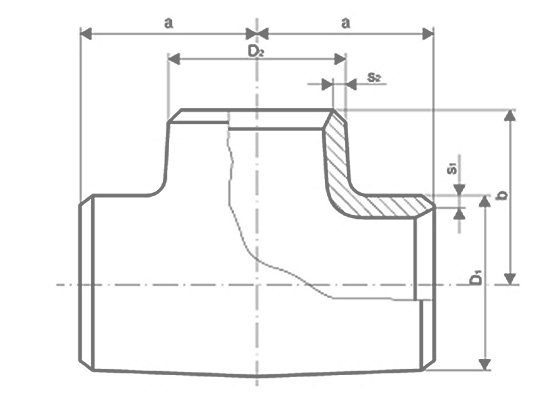

| BASIC DIMENSIONS | WALL THICKNESS SCH / kg | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCH STD | SCH 40 | SCH XS | SCH 80 | |||||||||||||
| DN | D1 | D2 | a | b | S1 | S2 | kg | S1 | S2 | kg | S1 | S2 | kg | S1 | S2 | kg |
| 1"x1/2" | 33.4 | 21.3 | 38 | 38 | 3.38 | 2.77 | 0.34 | 3.38 | 2.77 | 0.34 | 4.55 | 3.73 | 0.45 | 4.55 | 3.73 | 0.45 |
| 1"x3/4" | 26.7 | 2.87 | 2.87 | 3.91 | 3.91 | |||||||||||
| 1"x1" | 33.4 | 3.38 | 3.38 | 4.55 | 4.55 | |||||||||||
| 1 1/4"x1/2" | 21.3 | 2.77 | 2.77 | 3.73 | 3.73 | |||||||||||
| 1 1/4"x3/4" | 42.2 | 26.7 | 48 | 48 | 3.56 | 2.87 | 0.63 | 3.56 | 2.87 | 0.63 | 4.85 | 3.91 | 0.85 | 4.85 | 3.91 | 0.85 |
| 1 1/4"x1" | 33.4 | 3.38 | 3.38 | 4.55 | 4.55 | |||||||||||
| 1 1/4"x1 1/4" | 42.2 | 3.56 | 3.56 | 4.85 | 4.85 | |||||||||||
| 1 1/2"x3/4" | 26.7 | 2.87 | 2.87 | 3.91 | 3.91 | |||||||||||
| 1 1/2"x1" | 48.3 | 33.4 | 57 | 57 | 3.68 | 3.38 | 0.92 | 3.68 | 3.38 | 0.92 | 5.08 | 4.55 | 1.27 | 5.08 | 4.55 | 1.27 |
| 1 1/2"x1 1/4" | 42.2 | 3.56 | 3.56 | 4.85 | 4.85 | |||||||||||
| 1 1/2"x1 1/2" | 48.3 | 3.68 | 3.68 | 5.08 | 5.08 | |||||||||||
| 2"x3/4" | 26.7 | 44 | 2.87 | 2.87 | 3.91 | 3.91 | ||||||||||
| 2"x1" | 33.4 | 51 | 3.38 | 3.38 | 4.55 | 4.55 | ||||||||||
| 2"x1 1/4" | 60.3 | 42.2 | 64 | 57 | 3.91 | 3.56 | 1.49 | 3.91 | 3.56 | 1.49 | 5.54 | 4.85 | 2.15 | 5.54 | 4.85 | 2.15 |
| 2"x1 1/2" | 48.3 | 60 | 3.68 | 3.68 | 5.08 | 5.08 | ||||||||||
| 2"x2" | 60.3 | 64 | 3.91 | 3.91 | 5.54 | 5.54 | ||||||||||
| 2 1/2"x1" | 33.4 | 57 | 3.38 | 3.38 | 4.55 | 4.55 | ||||||||||
| 2 1/2"x1 1/4" | 42.2 | 64 | 3.56 | 3.56 | 4.85 | 4.85 | ||||||||||
| 2 1/2"x1 1/2" | 73.1 | 48.3 | 76 | 67 | 5.16 | 3.68 | 2.68 | 5.16 | 3.68 | 2.68 | 7.01 | 5.08 | 2.95 | 7.01 | 5.08 | 2.95 |
| 2 1/2"x2" | 60.3 | 70 | 3.91 | 3.91 | 5.54 | 5.54 | ||||||||||
| 2 1/2"x2 1/2" | 73.1 | 73 | 5.16 | 5.16 | 7.31 | 7.01 | ||||||||||
| 3"x1 1/4" | 42.2 | 70 | 3.56 | 3.56 | 4.85 | 4.85 | ||||||||||
| 3"x1 1/2" | 48.3 | 73 | 3.68 | 3.68 | 5.08 | 5.08 | ||||||||||
| 3"x2" | 88.9 | 60.3 | 86 | 76 | 5.49 | 3.91 | 3.75 | 5.49 | 3.91 | 3.75 | 7.62 | 5.54 | 4.29 | 7.62 | 5.54 | 4.29 |
| 3"x2 1/2" | 73.1 | 83 | 5.16 | 5.16 | 7.31 | 7.01 | ||||||||||
| 3"x3" | 88.9 | 86 | 5.49 | 5.49 | 7.62 | 7.62 | ||||||||||
| 4"x1 1/2" | 48.3 | 86 | 3.68 | 3.68 | 5.08 | 5.08 | ||||||||||
| 4"x2" | 60.3 | 89 | 3.91 | 3.91 | 5.54 | 5.54 | ||||||||||
| 4"x2 1/2" | 114.3 | 73.1 | 105 | 95 | 6.02 | 5.16 | 6.5 | 6.02 | 5.16 | 6.5 | 8.56 | 7.31 | 7.65 | 8.56 | 7.01 | 7.65 |
| 4"x3" | 88.9 | 98 | 5.49 | 5.49 | 7.62 | 7.62 | ||||||||||
| 4"x4" | 114.3 | 105 | 6.02 | 6.02 | 8.56 | 8.56 | ||||||||||
| 5"x2" | 60.3 | 105 | 3.91 | 3.91 | 5.54 | 5.54 | ||||||||||
| 5"x2 1/2" | 73.1 | 108 | 5.16 | 5.16 | 7.31 | 7.01 | ||||||||||
| 5"x3" | 141.3 | 88.9 | 124 | 111 | 6.55 | 5.49 | 10 | 6.55 | 5.49 | 10 | 9.53 | 7.62 | 13.5 | 9.53 | 7.62 | 13.5 |
| 5"x4" | 114.3 | 117 | 6.02 | 6.02 | 8.56 | 8.56 | ||||||||||
| 5"x5" | 141.3 | 124 | 6.55 | 6.55 | 9.53 | 9.53 | ||||||||||
| 6"x2" | 73.1 | 121 | 5.16 | 13.5 | 5.16 | 13.5 | 7.01 | 19.3 | 7.01 | |||||||
| 6"x3" | 88.9 | 124 | 5.49 | 13.5 | 5.49 | 13.5 | 7.62 | 19.3 | 7.62 | |||||||
| 6"x4" | 168.3 | 114.3 | 143 | 130 | 7.11 | 6.02 | 13.5 | 7.11 | 6.02 | 13.5 | 10.97 | 8.56 | 19.3 | 10.97 | 8.56 | 19.3 |
| 6"x5" | 141.3 | 137 | 6.55 | 14 | 6.55 | 14.0 | 9.53 | 19.3 | 9.53 | |||||||
| 6"x6" | 168.3 | 143 | 7.11 , | 14 | 7.11 " | 14 | 10.97 | 19.3 | 10.97 | |||||||
| 8"x4" | 114.3 | 156 | 6.02 | 24.5 | 6.02 | 24.5 | 8.56 | 34.7 | 8.56 | |||||||
| 8"x5" | 219.1 | 141.3 | 178 | 162 | 8.18 | 6.55 | 24.5 | 8.18 | 6.55 | 24.5 | 12.7 | 9.53 | 34.7 | 12.7 | 9.53 | 34.7 |
| 8"x6" | 168.3 | 168 | 7.11 | 24.5 | 7.11 | 24.5 | 10.97 | 34.7 | 10.97 | |||||||
| 8"x8" | 219.1 | 178 | 8.18 | 24.5 | 8.18 | 24.5 | 12.7 | 34.7 | 12.7 | |||||||
| 10"x4" | 114.3 | 184 | 6.02 | 39.6 | 6.02 | 39.6 | 8.56 | 53.5 | ||||||||
| 10"x5" | 141.3 | 191 | 6.55 | 39.6 | 6.55 | 39.6 | 9.53 | 53.5 | ||||||||
| 10"x6" | 273.0 | 168.3 | 216 | 194 | 9.27 | 7.11 | 39.6 | 9.27 | 7.11 | 39.6 | 12.7 | 10.97 | 54.5 | - | - | |
| 10"x8" | 219.1 | 203 | 8.18 | 39.6 | 8.18 | 39.6 | 12.7 | 58.4 | ||||||||
| 10"x10" | 273 | 216 | 9.27 | 41.3 | 9.27 | 41 | 12.7 | 58.4 | ||||||||
| 12"x5" | 141.3 | 216 | 6.55 | 63 | - | - | 9.53 | 74.8 | ||||||||
| 12"x6" | 168.3 | 219 | 7.11 | 63 | - | - | 10.97 | 74.8 | ||||||||
| 12"x8" | 323.8 | 219.1 | 254 | 229 | 9.53 | 8.18 | 63 | - | - | - | 12.7 | 12.7 | 74.8 | - | - | |
| 12"x10" | 273 | 241 | 9.27 | 63 | - | - | 12.7 | 78 | ||||||||
| 12"x12" | 323.8 | 254 | 9.53 | 65 | - | - | 12.7 | 78 | ||||||||
| 14"x6" | 168.3 | 238 | 7.11 , | 82.8 | - | - | 10.97 | 103.8 | ||||||||
| 14"x8" | 219.1 | 248 | 8.18 | 82.8 | - | - | 12.7 | 103.8 | ||||||||
| 14"x10" | 355.6 | 273 | 279 | 257 | 9.53 | 9.27 | 82.8 | - | - | - | 12.7 | 12.7 | 103.8 | - | - | |
| 14"x12" | 323.9 | 270 | 9.53 | 85 | - | - | 12.7 | 108.9 | ||||||||
| 14"x14" | 355.6 | 279 | 9.53 | 85 | - | - | 12.7 | 108.9 | ||||||||
| 16"x6" | 168.3 | 264 | 7.11 | 106.5 | - | - | 10.97 | 130.5 | ||||||||
| 16"x8" | 219.1 | 273 | 8.18 | 106.5 | - | - | 12.7 | 130.5 | ||||||||
| 16"x10" | 406.4 | 273 | 305 | 283 | 9.53 | 9.27 | 106.5 | - | - | 12.7 | 12.7 | 130.5 | - | - | ||
| 16"x12" | 323.9 | 295 | 9.53 | 106.5 | - | - | 12.7 | 134 | ||||||||
| 16"x14" | 355.6 | 305 | 9.53 | 110 | - | - | 12.7 | 135.5 | ||||||||
| 16"x16" | 406.4 | 305 | 9.53 | 110 | - | - | 12.7 | 138.5 | ||||||||
