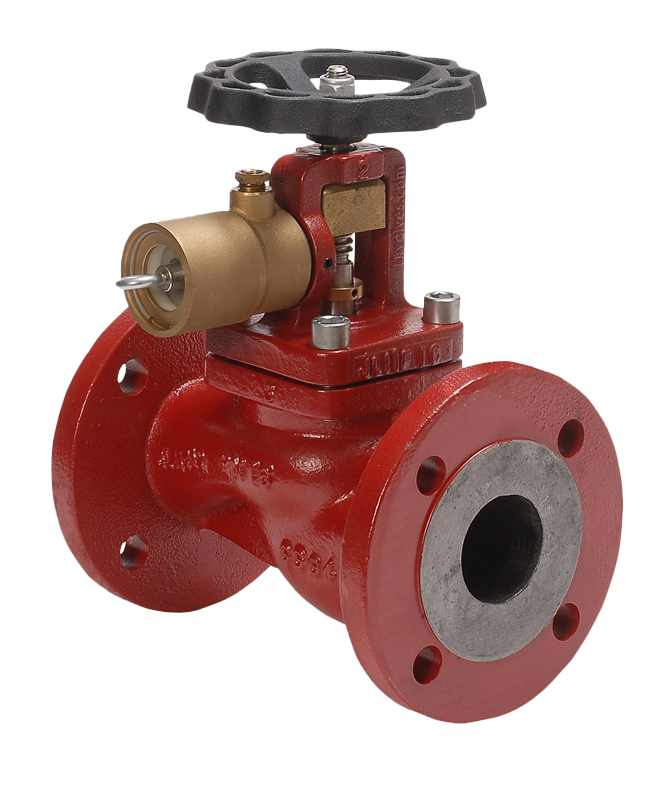

QUICK CLOSING VALVE DISTRICT IRON STRAIGHT FLANGE DIN PN 16
TECHNICAL CHARACTERISTICS
Quick-closing valves are most often used in fuel systems where there is a need for immediate shut-off of the flow. The built-in universal universal cylinder for mechanical, hydraulic or pneumatic activation provides automatic remote control of the valve. In the event of a fire or a dangerous increase in ambient temperatures, the valve automatically closes by additional protection, installed in accordance with SOLAS Ch. 11-2 / Reg. 4 / 2.2.3.4, which requires valves installed on tanks containing flammable liquids to immediately cut off all flow in the event of a fire.
WORKING FLUIDS / MEDIUM
Fuels, oils, aggressive liquids
EXECUTION
End stop for position indication.
Dimensions: DN-50-150
Additional Information

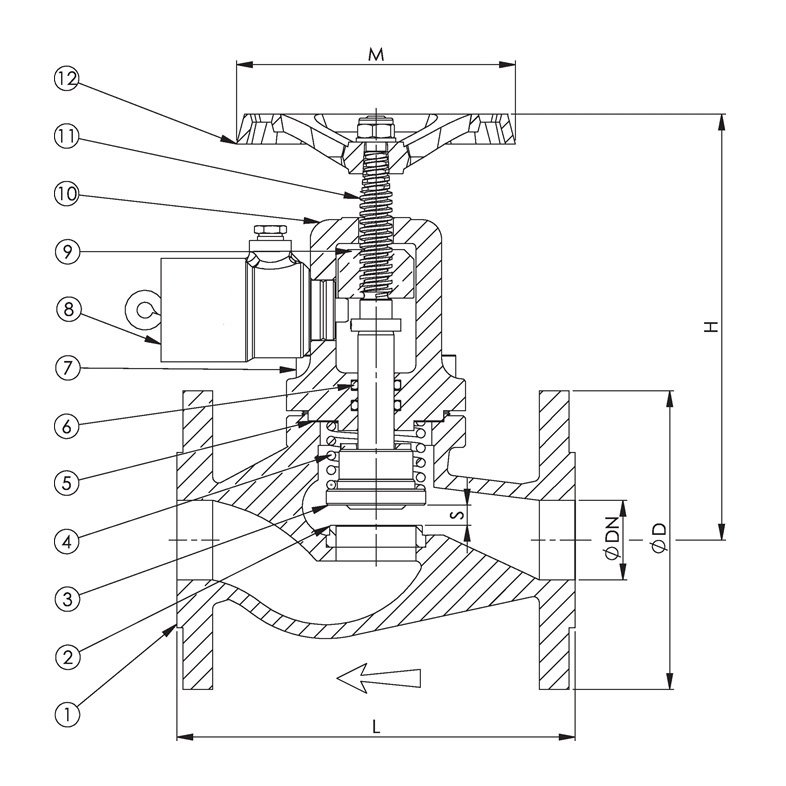

Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | malleable cast iron EN-JS1030 (GGG40) |
| 2 | Saddle | stainless steel 1.4301 (AISI304) |
| 3 | Valve | stainless steel 1.4301 (AISI304) |
| 4 | Spring loaded for activation | steel spring SH (1084 ASTM A71 3) |
| 5 | Garnish | rubber-reinforced |
| 6 | O-ring | FPM/FKM |
| 7 | MC6S bolt | 8.8 FZB |
| 8 | Release cylinder | brass CW614N (Ms58) |
| 9 | Adjusting nut | brass CW617N (Ms58) |
| 10 | Lid | malleable cast iron EN-JS1030 (GGG40) |
| 11 | Spindle | stainless steel 1.4301 (AISI304) |
| 12 | Handwheel | gray cast iron EN-JL1040 (GG25) |
Features
| Standard | ISO 7006-2 |
| Joining | EN 1092-3 |
| Construction length | EN 558, series 1 |
| Lid connection | bolted |
| Execution | straight |
| Joining | flanged |
| Management | manual with wheel, hydraulic, pneumatic drive |
| Drive | multi-turn |
| T max. °C 120 °C Bar | 16 Bar |
| T max. °C 180 °C Bar | 10 Bar |
Dimensions
| DN | PN | Flanges/PN | L | D | H | S | M | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 50 | PN 16 | PN 16 | 230 | 165 | 224 | 12.5 | 140 | 14 |
| 65 | PN 16 | PN 16 | 290 | 185 | 253 | 16.5 | 140 | 19 |
| 80 | PN 16 | PN 16 | 310 | 200 | 253 | 20 | 160 | 26 |
| 100 | PN 16 | PN 16 | 350 | 220 | 298 | 25 | 160 | 46 |
| 125 | PN 16 | PN 16 | 400 | 250 | 338 | 32 | 200 | 54 |
| 150 | PN 16 | PN 16 | 480 | 285 | 410 | 37.5 | 200 | 72 |
Related products
Select options
This product has multiple variants. The options may be chosen on the product page

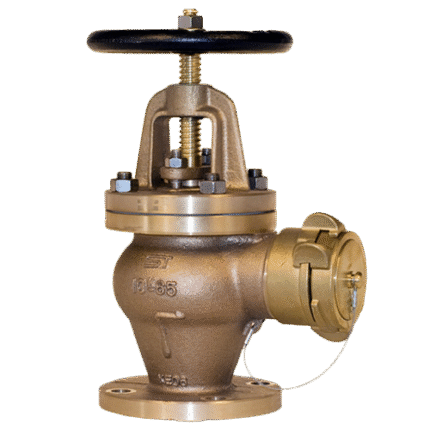

BRONZE VALVE “HOSE VALVE” ANGLE JIS F7334 10K
Select options
This product has multiple variants. The options may be chosen on the product page

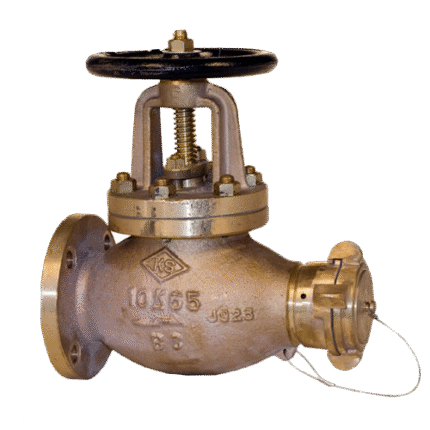

BRONZE VALVE “HOSE VALVE” STRAIGHT JIS F7334 10K
Select options
This product has multiple variants. The options may be chosen on the product page
BRONZE VALVE STRAIGHT DIN 3202 F32 PN 16
Select options
This product has multiple variants. The options may be chosen on the product page

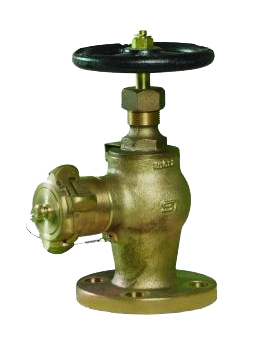

FIRE VALVE ANGLE BRONZE ACCORDING TO JIS F7334 R WITH “NAKADJIMA” CONNECTION, 10K
Select options
This product has multiple variants. The options may be chosen on the product page
FIRE VALVE ANGLE FLANGE DIN PN 16
Select options
This product has multiple variants. The options may be chosen on the product page

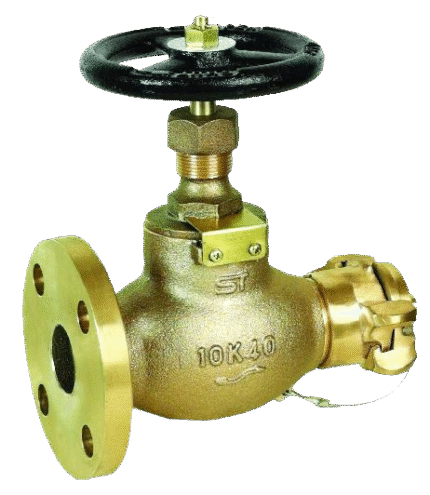

FIRE VALVE STRAIGHT BRONZE ACCORDING TO JIS F7334 R WITH “NAKADJIMA” CONNECTION, 10K
