PRESSURE SWITCH – MARINE APPLICATIONS
TECHNICAL DESCRIPTION
KPS 43-45-47 PRESSURE SWITCHES SERIES.
In the KPS series of pressure switches, special attention is paid to the requirements for high reliability, robust, compact construction and resistance to shock and vibration.
The KPS product range covers most requirements for outdoor and indoor applications and is suitable for use in alarm and control systems in factories, compressor stations, power plants, vessels, etc.
WORKING MEDIUM / FLUID
Oils, air, gas, water, etc.
EXECUTION
According to the size chart.
Additional Information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body / casing | PVC box |
| 2 | Interior details | carbon steel |
| brass / copper |
Features
| SPECIFICATION | |
|---|---|
| Standard | DIN |
| T max. of the medium | 70 °C |
| T min. of the medium | -10 °C |
| Net weight | 0.88 kg |
| Adjustment range | according to the size chart |

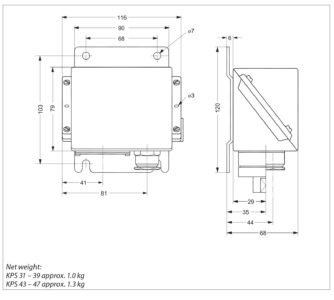

Dimensions
| SIZE | MODEL | ADJUSTMENT RANGE (Bars) | IP |
|---|---|---|---|
| 1/4" | KPS 43 | 1.0 ÷ 10.0 | 67 |
| 1/4" | KPS 45 | 4.0 ÷ 40.0 | 67 |
| 1/4" | KPS 47 | 6.0 ÷ 60.0 | 67 |
