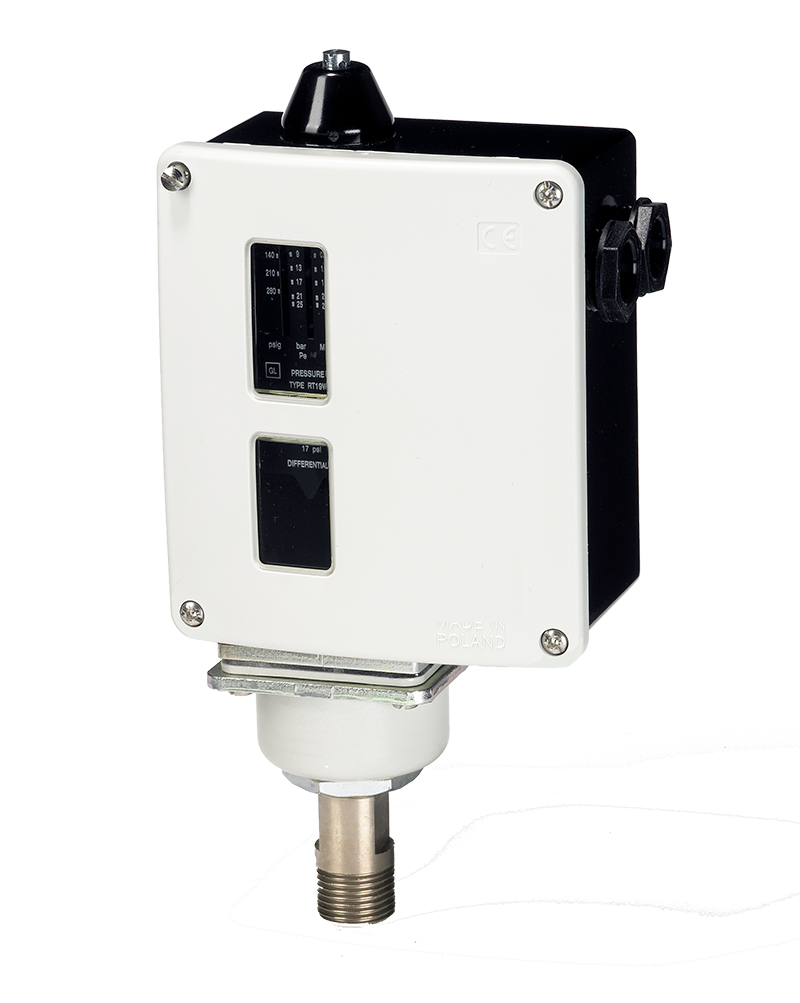

PRESSURE SWITCH
TECHNICAL DESCRIPTION
Pressure switch (pressure switch). Principle of operation – controls the pressure in the system, according to a preset value.
Performs the function of a controlling or alarm device in the system.
WORKING MEDIUM / FLUID
Oils, air, gas, water, etc.
EXECUTION
According to the size chart.
Additional Information

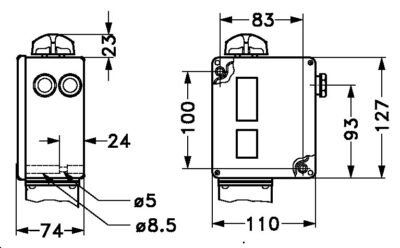

RT pressure control housing dimensions
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body / casing | PVC box |
| 2 | Interior details | carbon steel |
| brass / copper |
Features
| SPECIFICATION | |
|---|---|
| Standard | DIN |
| T max. of the medium | 70 °C |
| T min. of the middle | -10 °C |
| Net weight | 0.88 kg |
| Adjustable range | according to the model |
Dimensions
| SIZE | MODEL | ADJUSTMENT RANGE (Bars) | IP |
|---|---|---|---|
| 3/8" | RT 113 | 0 ÷ 3.0 | 66 |
| 3/8" | RT 112 | 0.1 ÷ 1.1 | 66 |
| 3/8" | RT 200 | 0.2 ÷ 6.0 | 66 |
| 3/8" | RT 116 | 1.0 ÷ 10.0 | 66 |
| 3/8" | RT 5 | 4.0 ÷ 17.0 | 66 |
