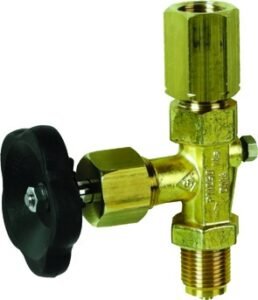

PRESSURE GAUGE VALVE – FORGED BRASS PN 250
APPLICATIONS
Gauge needle valve PN250. It is used as a shut-off valve installed before a manometer, its purpose is to ensure repair or replacement of the manometer without having to stop the system. A threaded hole is made in the lower part of the valve, which can be used as a test connection if necessary.
VARIANTS
Thread connection: Male/Female
Connection size: Thread: M20x1.5; G 1/2″
Additional Information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | brass / forged |
| 2 | Packing seal | Teflon / PTFE |
| 3 | Spindle | stainless steel 1.4104 / AISI 316L |
| 4 | Drive wheel | plastic |
| 5 | Clamping sleeve | brass / forged |
Features
| SPECIFICATION | |
|---|---|
| Standard | DIN |
| P max. working pressure | 400 Bar |
| T max operating temperature | 120 °C |
| Operation | Manual with wheel |
| Weight | 0.600 kg |
| Inlet | 1/2" (BSPP) |
| M20 x 1.5 | |
| Outlet | 1/2" (BSPP) |
| M20 x 1.5 | |
Dimensions
| DN | accession | working pressure (Bars) | (kg) |
|---|---|---|---|
| 4 | BSPP G1/2" | 0 - 250.0 | 0.600 |
| 4 | M20x1.5 | 0 - 250.0 | 0.600 |
