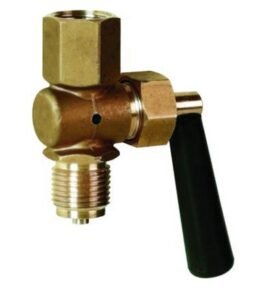

PRESSURE GAUGE VALVE – BRASS PN 16
APPLICATIONS
Pressure gauge valve brass. Closing valves towards pressure gauge.
VARIANTS
Thread connection: Female/Female
Connection size: BSPP G1/4, G3/8
Additional Information
Materials
| No. | Part | Material |
|---|---|---|
| 1 | Body | Brass |
| 2 | Spindle | Brass |
| 3 | Operating handwheel | Plastic |
Features
| SPECIFICATION | |
|---|---|
| Standard | DIN |
| P max. working pressure | 16 Bar |
| T max operating temperature | 90 °C |
| Operation | Manual |
| Weight | 0.10 kg |
| Inlet | 1/4" (BSPP) |
| 3/8" (BSPP) | |
| 1/2" (BSPP) | |
| Outlet | 1/4" (BSPP) |
| 3/8" (BSPP) | |
| 1/2" (BSPP) | |
Dimensions
| DN | Thread BSPP | Pressure range | Weight (kg) |
|---|---|---|---|
| 15" | G1/2" | 0-16,0 Bars | 0,10 |
