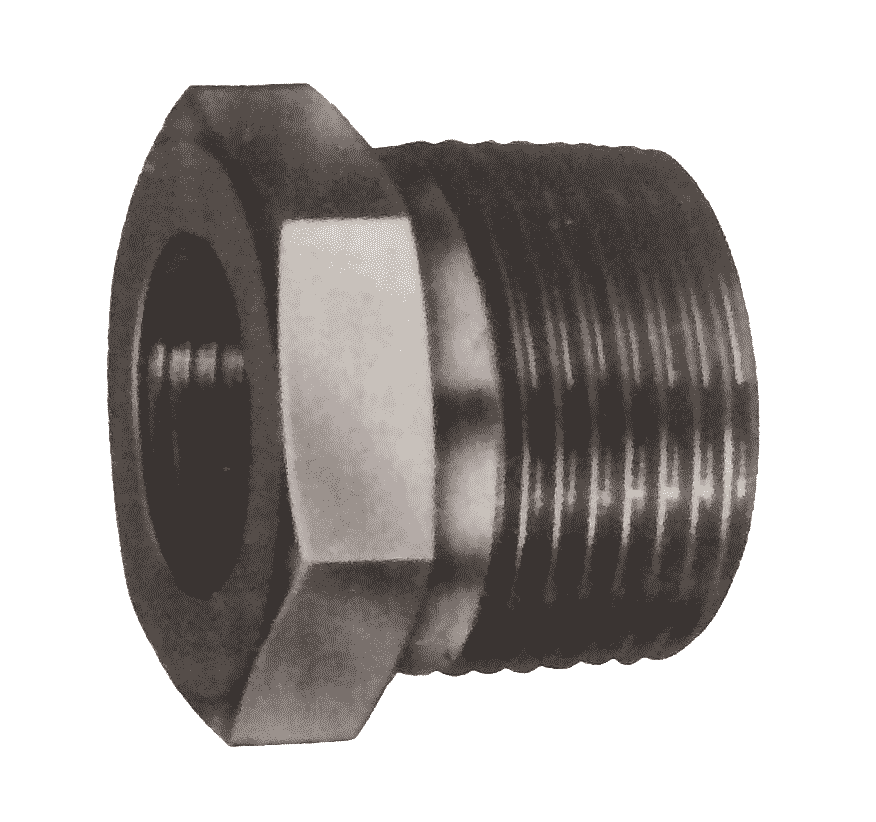

NIPPLE TRANSITION ISO 7-1 TYPE BPH EN10241 TABLE 15
TECHNICAL DESCRIPTION
Internal reducer coupling (BRP) is a straight pipe coupling with internal and external threads, connecting straight pipe elements (pipes) with different external diameters.
Dimensions: G 3/8″ – 1 1/2″
Additional information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Internal reducer coupling - BPH | steel P265GH; A234 WPB |
| other steels - on request | ||
| stainless steels - upon request |
Features
| SPECIFICATION | |
|---|---|
| Standard | EN10241 |
| Joining | threaded ISO 7-1 |
| Pressure | 25 Bar |

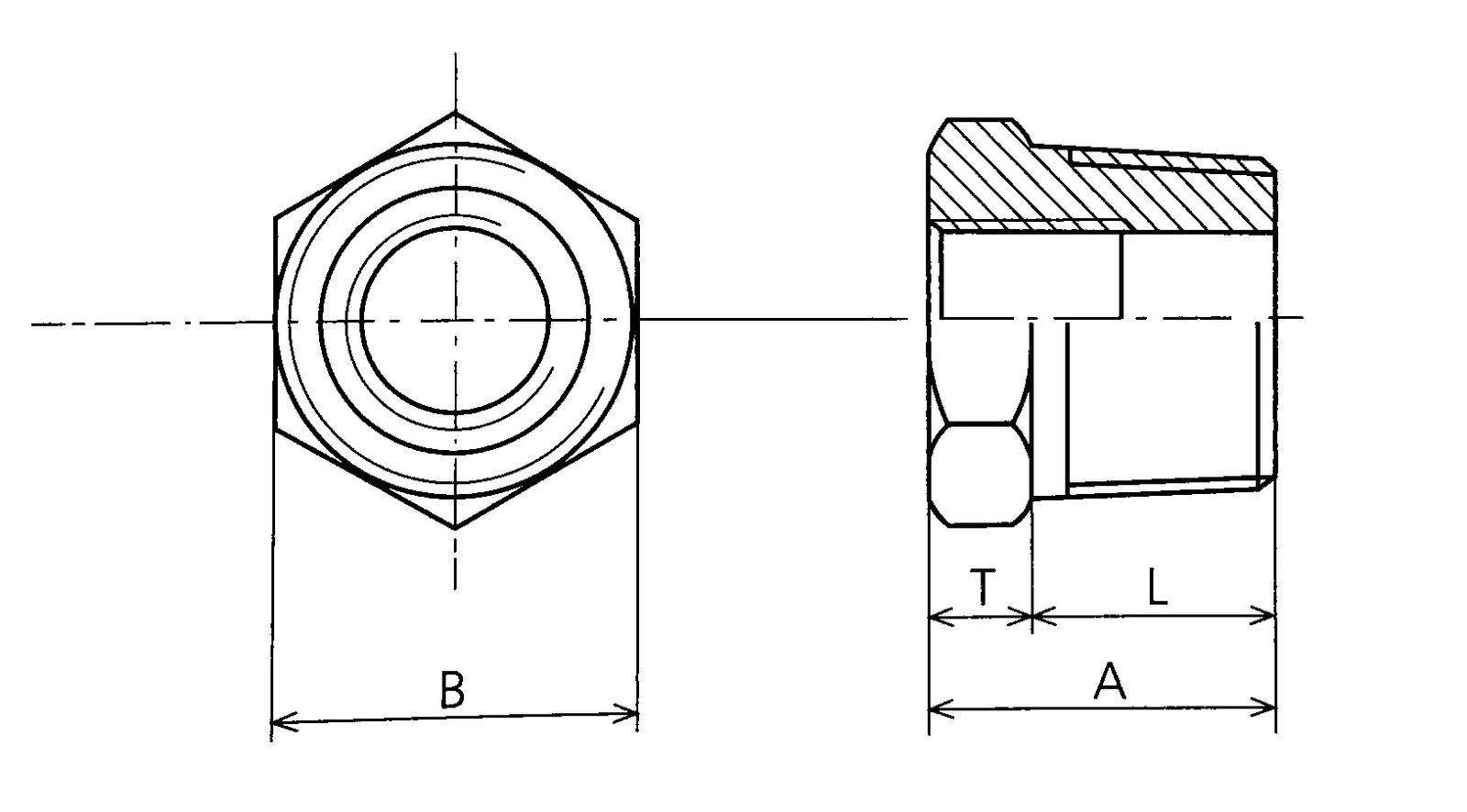

Dimensions
| DN | G | L | T | A | B |
|---|---|---|---|---|---|
| mm | mm | mm | mm | ||
| 10 x 6 | 3/8" x 1/8" | 12.5 | 8 | 20.5 | 17 |
| 10x8 | 3/8" x 1/4" | 12.5 | 8 | 20.5 | 17 |
| 15 x 8 | 1/2" x 1/4" | 17.5 | 8 | 25.5 | 22 |
| 15x10 | 1/2" x 3/8" | 17.5 | 8 | 25.5 | 22 |
| 20 x 8 | 3/4" x 1/4" | 19.0 | 10 | 29.0 | 27 |
| 20x 10 | 3/4" x 3/8" | 19.0 | 10 | 29.0 | 27 |
| 20 x 8 | 3/4" x 1/2" | 19.0 | 10 | 29.0 | 27 |
| 20 x 8 | 1" x 3/8" | 21.0 | 10 | 31.0 | 36 |
| 25 x 15 | 1" x 1/2" | 21.0 | 10 | 31.0 | 36 |
| 25 x 8 | 1" x 3/4" | 21.0 | 10 | 31.0 | 36 |
| 32 x 15 | 1 1/4" x 1/2" | 24.0 | 11 | 35.0 | 46 |
| 32x20 | 1 1/4" x 3/4" | 24.0 | 11 | 35.0 | 46 |
| 32 x 25 | 1 1/4" x 1" | 24.0 | 11 | 35.0 | 46 |
| 40 x 15 | 1 1/2" x 1/2" | 24.0 | 13 | 37.0 | 50 |
| 40x20 | 1 1/2" x 3/4" | 24.0 | 13 | 37.0 | 50 |
| 40 x 25 | 1 1/2" x 1" | 24.0 | 13 | 37.0 | 50 |
| 40x32 | 1 1/2" x 1 1/4" | 24.0 | 13 | 37.0 | 50 |
| 50x25 | 2" x 1" | 27.0 | 14 | 41.0 | 65 |
| 50x32 | 2" x 1 1/4" | 27.0 | 14 | 41.0 | 65 |
| 50x40 | 2" x 1 1/2" | 27.0 | 14 | 41.0 | 65 |
