NIPPLE DOUBLE LONG ISO 7-1 EN10241 TABLE 23C
TECHNICAL DESCRIPTION
Double threaded nipple, long – a connecting element with an increased construction length, which provides a straight connection between two pipe elements (pipes) with the same diameter and threads.
Dimensions: G 1/4″ – 4″
Additional information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Double long nipple | P265GH; A234 WPB |
| other steels - on request | ||
| stainless steels - upon request |
Features
| SPECIFICATION | |
|---|---|
| Standard | EN10241 |
| Joining | threaded ISO 7-1 |
| Pressure | 25 Bar |

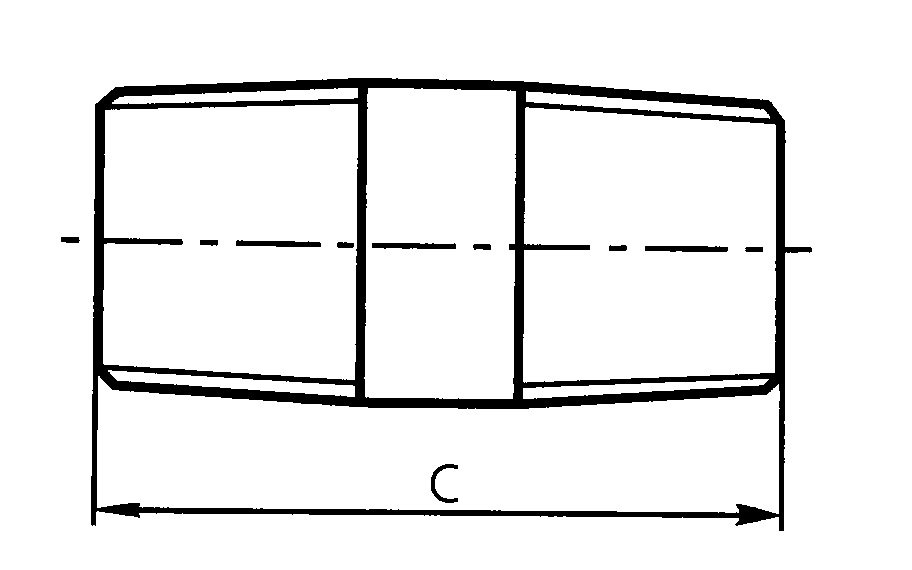

Dimensions
| DN | G | C mm | admission |
|---|---|---|---|
| 8 | 1/4" | 38 | + 3.0 |
| 10 | 3/8" | 38 | + 3.0 |
| 15 | 1/2" | 51 | + 4.5 |
| 20 | 3/4" | 54 | + 4.5 |
| 25 | 1" | 60 | + 4.5 |
| 32 | 1 1/4" | 70 | + 6.0 |
| 40 | 1 1/2" | 70 | + 6.0 |
| 50 | 2" | 79 | +8.0 |
| 65 | 2 1/2" | 89 | + 8.0 |
| 80 | 3" | 102 | + 8.0 |
| 100 | 4" | 114 | + 8.0 |
