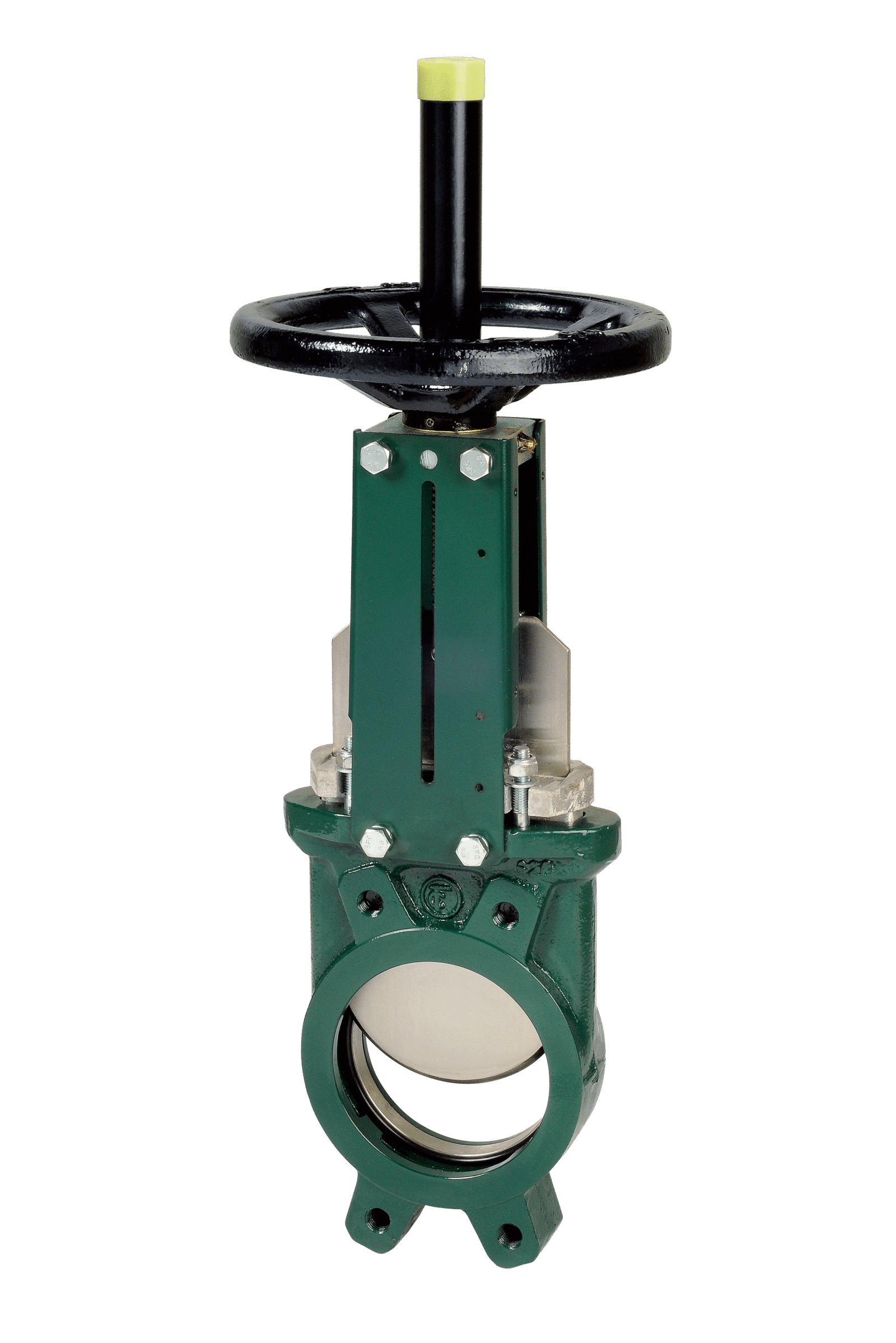

KNIFE GATE VALVE CAST IRON VG3400-00 RISING SPINDLE DIN PN 10-16

TECHNICAL DESCRIPTION

Range: from DN 50 to DN 600.
ON / OFF function or regulation.
Threaded mounting between PN10 flanges.
One-way tightening, clockwise.
The wedge is guided in the body with a small clearance.

Packing: Packing and O-ring to provide elasticity and reduce operating torque.
Regulation: Ability to regulate high density fluids.
Seal: Diaphragm ring.

WORKING FLUID / MEDIUM

They are used in installations for the transfer of thick technological slurries, water, water processing, sewage, the chemical industry, wine production and for the transfer of dry mixtures.

OPTIONS

Different body and disc materials on request:

EXECUTION

• Seal: metal / metal
• Seal: metal / rubber (soft sealing)

Dimensions: DN 50 – 600


Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

Materials

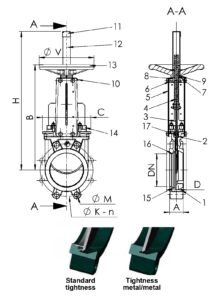

No. DETAILS MATERIALS
17 O-ring NBR rubber
16 Thrust ring stainless steel 316
15 Gasket NBR rubber
14 Oil seal aluminum (DN 50-450), stom. (DN 500-600)
13 Flywheel grey cast iron EN-GJL-250
12 Protective tube steel
11 Cap plastic
10 Grease gun stainless steel
9 Set screw stainless steel
8 Nut bronze
7 Friction washer bronze
6 Nut galvanized steel
5 Plank steel + epoxy coating
4 Spindle stainless steel 13%Cr
3 Wedge stainless steel X5CrNi 18-10
2 Packing seal Teflon PTFE
1 Body grey cast iron EN-GJL-250

Features

SPECIFICATION
Construction standard: 2014/68/EU: module H.
ATEX: ATEX II 2 GD c and ATEX II 3 GD c.
Tests: EN 12266-1
Execution: straight
Connection: between flanges EN 1092-2 / PN10
Actuation: manually
Drive: multi-turn
Operating temperature: °C: -10°C / + 80°C
Dimensions
DN A B C D Ø V H Ø K n Ø M Weight (kg)
mm inches
50 2" 40 283 124 83 200 348 125 4 4 x M16 7.5
65 2"1/2 40 308 139 83 200 388 145 4 4 x M16 9.0
80 3" 50 333 154 83 200 413 160 8 4 x M16 10.0
100 4" 50 378 174 83 200 488 180 8 4 x M16 1 1.5
125 5" 50 423 189 93 250 564 210 8 4 x M16 15.5
150 6" 60 474 220 93 250 635 240 8 4 x M20 18.5
200 8" 60 593 275 108 310 809 295 8 4 x M20 35.0
250 10" 70 685 326 108 310 946 350 12 8 x M20 47.0
300 12" 70 792 380 108 310 1118 400 12 8 x M20 61.0
350 14" 96 900 438 290 500 1282 460 16 10 x M20 117
400 16" 100 978 494 290 500 1441 515 16 10 x M24 151
450 18" 106 1105 547 290 500 1587 565 20 14 x M24 187
500 20" 1 10 1215 613 290 500 1809 620 20 14 x M24 205
600 24" 1 10 1418 716 290 500 2060 725 20 14 x M27 292
