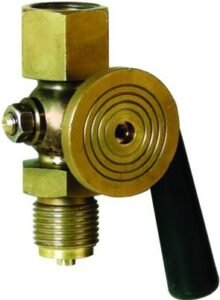

GUAGE BRASS VALVE WITH TEST PORT PN 16
APPLICATIONS
Forged brass guage valve. It is used as a shut-off valve installed before a pressure gauge, its purpose is to ensure repair or replacement of the pressure gauge without having to stop the system.
• the valve is equipped with a control flange Ø40x5mm.
• suitable for pressure gauges with seal according to DIN EN 837-1
• construction according to DIN 16261-B
VARIANTS
Thread connection: Male/Female
Connection size: Thread: BSPP G 1/4″, G 3/8″, G 1/2″
Additional Information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | forged brass |
| 2 | Spindle | brass |
| 3 | Lever | plastic |
Features
| SPECIFICATION | |
|---|---|
| Standard | DIN |
| P max. operating pressure | 16 Bar |
| T max operating temperature | 90 [°C] |
| Operation | Manual |
| Weight | 0.15 kg |
| Inlet | 1/4" (BSPP) |
| 3/8" (BSPP) | |
| 1/2" (BSPP) | |
| Outlet | 1/4" (BSPP) |
| 3/8" (BSPP) | |
| 1/2" (BSPP) | |
| Test connection (mm) | Ø40 |
Dimensions
| DN | accession | working pressure (Bars) | (kg) |
|---|---|---|---|
| 4 | G 1/4" | 0 - 16.0 Bar | 0.15 |
| 4 | G 3/8" | 0 - 16.0 Bar | 0.15 |
| 4 | G 1/2" | 0 - 16.0 Bar | 0.15 |
