GLOBE CHECK VALVE STRAIGHT FLANGED DIN PN 25
GLOBE CHECK VALVE STRAIGHT FLANGED DIN PN 25

GLOBE CHECK VALVE STRAIGHT FLANGED DIN PN 16

TECHNICAL DESCRIPTION

Soft-sealing check valve with flange connection. It acts as a one-way valve operating under the action of the fluid and preventing its movement in the opposite direction.
Installation in horizontal and vertical positions.

• Sealing – metal / rubber.
• Installation in horizontal and vertical position.
• Connection – between flanges EN 1092-1

WORKING FLUID / MEDIUM

• General industrial applications, hot and cold water systems, air or other neutral fluids.
• Fuels, lubricants, petroleum, seawater

EXECUTION

• Various materials upon request.


Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

Materials

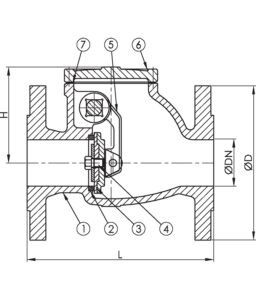

No. DETAILS MATERIALS
1 Body steel 1.0619, GS-C25
2 Seat stainless steel 1.4301 (AISI304)
3 Sealing ring NBR rubber
4 Stem stainless steel 1.4021 (AISI420)
5 Swing arm valve steel 1.0619, GS-C25
6 Cover steel 1.0619, GS-C25
7 Lid rubber-reinforced

Features

SPECIFICATION
Standard DIN 3202 F1
Flanges EN 1092-2
Construction length EN 558, series 1
Cover connection bolted
Execution straight
Connection type flanged
Operation check valve
Actuation without drive
T max.[°C] 300 °C



Dimensions
DN PN Flanges/PN L D ØP nxd H Weight (kg)
50 16 16 200 160 125 4x18 120 18
65 16 16 240 180 145 4x18 135 21
80 16 16 260 195 160 4x18 145 39
100 16 16 300 215 180 8x18 186 46
125 16 16 350 245 210 8x18 200 68
150 16 16 400 280 240 8x23 214 83
200 16 16 500 340 295 12x22 300 174
250 16 16 600 405 355 12x26 340 267
300 16 16 700 460 410 12x26 380 440
400 16 16 900 580 525 16x30 464 705
Note: The dimensions in column ØP should be considered as the diameters of the bolt circle, as the latter are not indicated in the drawing.
