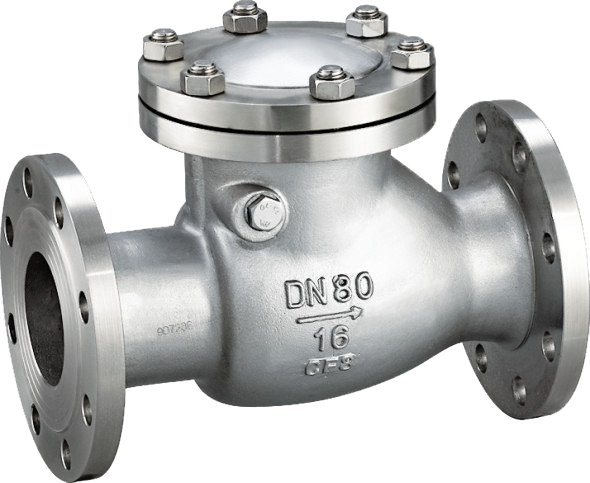

GLOBE CHECK VALVE STAINLESS STEEL DIN PN 16

TECHNICAL DESCRIPTION

Check valve with metal/metal seal, flange connection and bolted cover.

WORKING FLUID / MEDIUM

• Corrosive fluids, steam, fuels, lubricating oil and flammable hydraulic oils, petroleum non-flammable hydraulic fluids, boiler feed water, condensate, seawater.

Can be installed on vertical pipelines. Fluid direction – enters under the valve.

EXECUTION

• Other materials upon request.


Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

Materials

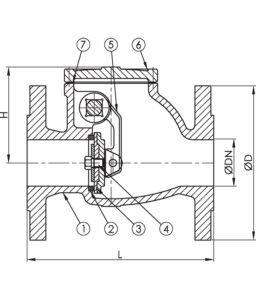

No. DETAILS MATERIALS
1 Body stainless steel 1.4301 (AISI 304)
2 Seat stainless steel 1.4301 (AISI 304)
3 Valve seal ring stainless steel 1.4021 (AISI 420)
4 Spindle stainless steel 1.4021 (AISI 420)
5 Valve, rocker arm stainless steel 1.4021 (AISI 420)
6 Cover stainless steel 1.4301 (AISI 304)
7 Gasket asbestos-free sealant





Features

SPECIFICATION
Standard DIN 3202 F1
Flanged EN 1092-2
Construction length EN 558, series 1
Cover bolted
Execution straight
Conection flanged
Type check valve
Operation self-closing
T max.[°C] 300 °C



Dimensions
DN PN Flanges/PN L D ØP nxd H Weight (kg)
50 16 16 230 160 125 4x18 120 15.5
65 16 16 290 180 145 4x18 135 19
80 16 16 310 195 160 4x18 145 26.4
100 16 16 350 215 180 8x18 186 37
125 16 16 400 245 210 8x18 200 57
150 16 16 460 280 240 8x23 214 76
200 16 16 600 340 295 12x23 300 165
250 16 16 730 405 355 12x26 340 267
300 16 16 850 460 410 12x26 380 440
Note: The dimensions in column ØP should be considered as the diameters of the bolt circle, as the latter are not indicated in the drawing.
