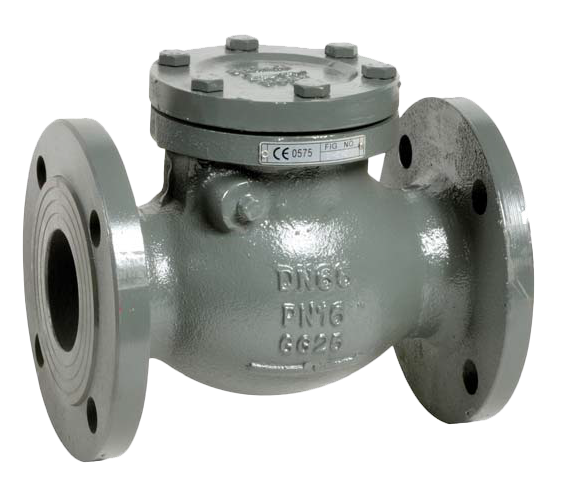

GLOBE CHECK VALVE CAST IRON DIN PN 16 model 360 Metal/Metal
GLOBE CHECK VALVE CAST IRON DIN PN 16 model 360 Metal/Metal
Back to products

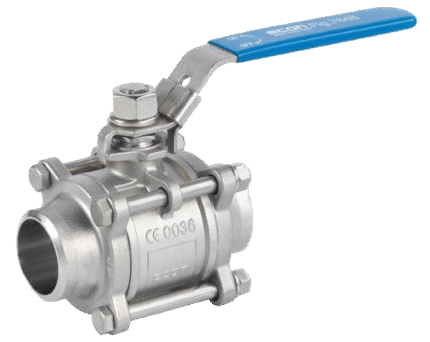

STAINLESS STEEL BALL VALVE FOR WELD (SW) 3-PIECE DIN PN 16
STAINLESS STEEL BALL VALVE FOR WELD (SW) 3-PIECE DIN PN 16

GLOBE CHECK VALVE CAST IRON DIN PN 16 model 362 EPDM / Metal

TECHNICAL DESCRIPTION

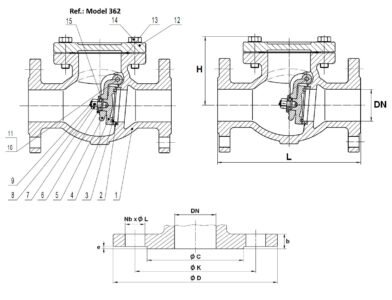

Check valve with disc seal – EPDM to metal, flange connection and bolted connection cover model 362.
Installation on vertical pipelines is possible, when the flow is from bottom to top.

Minimum and maximum temperature: – 10 ° C to + 120 ° C for gasket – EPDM / metal Fig.362

ANNEX

Heating, water supply and irrigation

OPTIONS

Other materials on request


Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

Materials

No. POSITION MATERIAL
1 Body cast iron EN GJL-250 (GG25)
2 Seat O-ring brass
3 Disc sealing ring EPDM
4 Disk cast iron EN GJL-250 (GG25)
5 Disc arm malleable cast iron EN-GJS-400-15
6 Washer steel
7 Nut steel
8 Splint stainless steel AISI 304
9 Disc nut steel
10 Hexagonal plug brass
11 Pin stainless steel AISI 304
12 Cover cast iron EN GJL-250 (GG25)
13 Cover gasket graphite
14 Cover connection steel
15 Pin stainless steel AISI 304





Features

SPECIFICATION
Standard DIN 3202 F1
Flange standard EN1092-2
Construction length EN558, Series 1
Cover attachment Bolted
Execution straight
Function check valve
Operation self acting
T max. 120 °C



Dimensions
DN PN Flanges / PN L H ØC ØD ØK Nb x Ø L b yes kg
40 PN 16 PN 16 180 109 84 150 110 4x19 18 3 8.5
50 PN 16 PN 16 200 112 99 165 125 4x19 20 3 11.2
65 PN 16 PN 16 240 132 118 185 145 4x19 20 3 15.5
80 PN 16 PN 16 260 141 132 200 160 8x19 22 3 19
100 PN 16 PN 16 300 162 156 220 180 8x19 24 3 28.5
125 PN 16 PN 16 350 192 184 250 210 8x19 26 3 42.2
150 PN 16 PN 16 400 211 211 285 240 8x23 26 3 57
200 PN 16 PN 16 500 270 266 340 295 12x23 30 3 93
250 PN 16 PN 16 600 316 319 405 355 12x28 32 3 159
300 PN 16 PN 16 700 357 370 460 410 12x28 32 4 215
