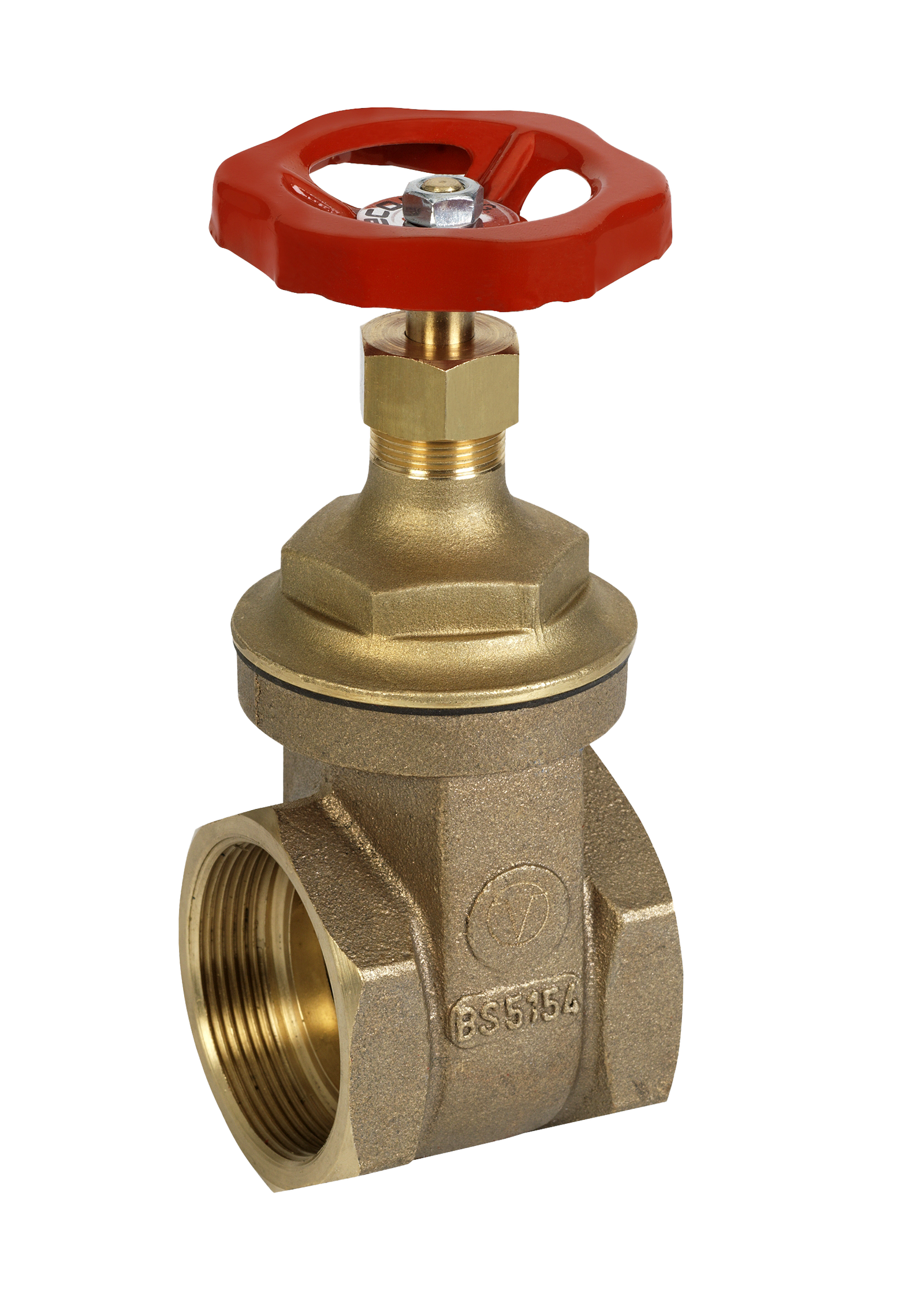

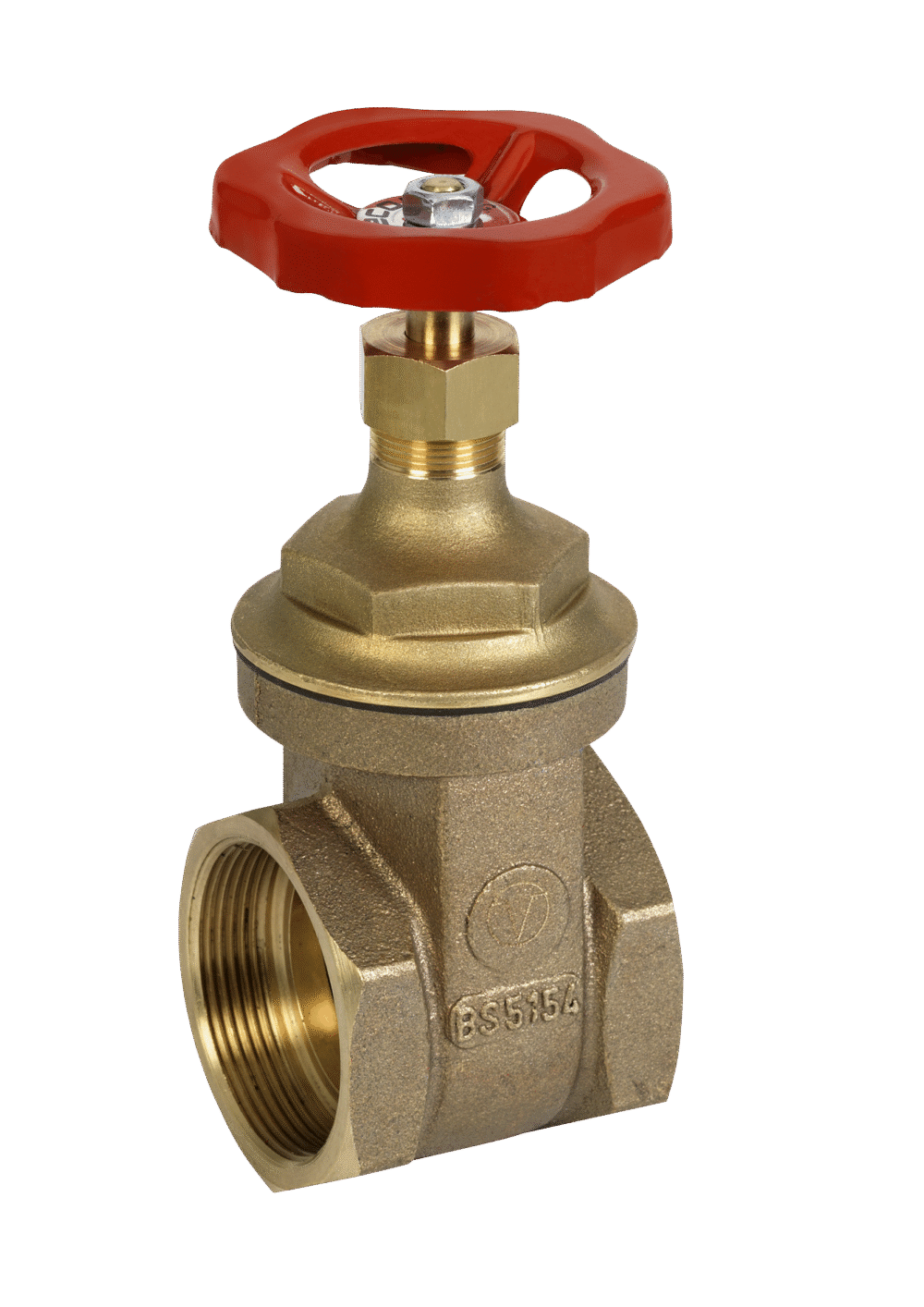

GATE VALVES BRONZE THREADED DIN 3352 T12
TECHNICAL DESCRIPTION
Gate valves (clinkets) are used as shut-off elements in applications and systems for the transfer of liquids and steam. Manually operated with a handwheel. Submersible spindle.
WORKING FLUID / MEDIUM
Water, thermal oil, fuels, lubricating and combustible hydraulic oils, petroleum, seawater.
OPTIONS
Various materials upon request
Dimensions: DN 8 – 80
Additional information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | bronze CC491K (RG5) |
| 2 | Wedge | bronze CC491K (RG5) |
| 3 | Spindle | brass CW710R (SoMs59) |
| 4 | Cover | bronze CC491K (RG5) |
| 5 | Safety plate | galvanized steel |
| 6 | Cover seal | rubber/glass teflon PTFE |
Features
| SPECIFICATION | |
|---|---|
| Construction standard: | DIN |
| Connection cover: | threaded, secured |
| performance: | straight |
| Connection: | thread |
| Management: | flywheel |
| Operation: | multi-turn |
Dimensions
| DN | PN | Connection | L | H | M | Weight (kg) |
|---|---|---|---|---|---|---|
| 1/2" | 16 | Thread FF / G1/2" | 55 | 85 | 60 | 0.4 |
| 3/4" | 16 | Thread FF / G3/4" | 60 | 105 | 70 | 0.5 |
| 1" | 16 | Thread FF / G1" | 68 | 115 | 70 | 0.8 |
| 1 1/4" | 16 | Thread FF / G1 1/4" | 76 | 130 | 80 | 1.1 |
| 1 1/2" | 16 | Thread FF / G1 1/2" | 76 | 150 | 90 | 1.6 |
| 2" | 16 | Thread FF / G2" | 93 | 180 | 110 | 2.4 |
| 2 1/2" | 16 | Thread FF / G2 1/2" | 110 | 220 | 150 | 3.9 |
