GATE VALVE JIS 5K JIS F7400 CAST IRON WITH NON RISING STEM AND POSITION INDICATOR
GATE VALVE JIS 5K JIS F7400 CAST IRON WITH NON RISING STEM AND POSITION INDICATOR
Back to products
GATE VALVE JIS 16K JIS F7400 CAST IRON WITH NON RISING STEM AND POSITION INDICATOR
GATE VALVE JIS 16K JIS F7400 CAST IRON WITH NON RISING STEM AND POSITION INDICATOR

GATE VALVE JIS 10K JIS F7400 CAST IRON WITH NON RISING STEM AND POSITION INDICATOR

TECHNICAL CHARACTERISTICS

Cast iron gate valve according to JIS, suitable for use in systems with operating pressure up to 10 bar, flange connection according to JIS B2220 10K, with submersible spindle.

WORKING FLUIDS / MEDIUM

• Water, low pressure steam up to 10 bar, fuels, oils, seawater.

TECHNICAL ADVANTAGES

• Position indicator

Dimensions: DN 50 – 300


Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

Materials

No. DETAILS MATERIALS
1 Body cast iron EN-GJL200
(GG20, FC200)
2 Seat CuSn5Zn5Pb5-C, RG5,
CAC406, BC6 (bronze)
3 Wedge grey cast iron EN-GJL200
(GG20, FC200)
4 Stem CuZn40Pb2, Ms58, C3771BD





Features

SPECIFICATION
Standard: JIS F7400
Connection: JIS B2239 5K
Construction length: JIS F7425 (JIS F7363)
Attaching cover: bolted
Execution: straight
Connection type: flanged
Actuation: flywheel
Operation: multi-turn
T max. at 7 Bar 120 °C
T max. at 5 Bar 205 °C











Dimensions

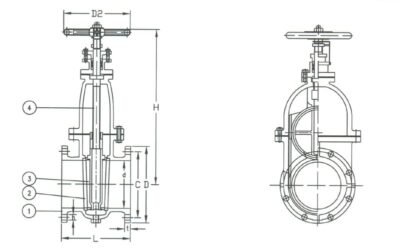

DN PN Flanges / Rn L D C nx Ød H D2 kg
50 10K 10K 200 155 120 4x19 270 140 19
65 10K 10K 220 175 140 4x19 295 160 28
80 10K 10K 230 185 150 8x19 325 160 33
100 10K 10K 250 210 175 8x19 360 200 46
125 10K 10K 270 250 210 8x23 450 200 66
150 10K 10K 290 280 240 8x23 500 200 86
200 10K 10K 320 330 290 12x23 560 200 136
250 10K 10K 380 400 355 12x25 620 250 230
300 10K 10K 440 445 400 16x25 730 315 331
