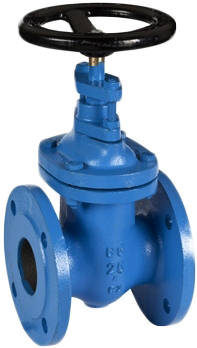

GATE VALVE CAST IRON WITH NON-RISING STEM F4 DIN EN 1171 (DIN 3352 T2)
GATE VALVE CAST IRON WITH NON-RISING STEM F4 DIN EN 1171 (DIN 3352 T2)

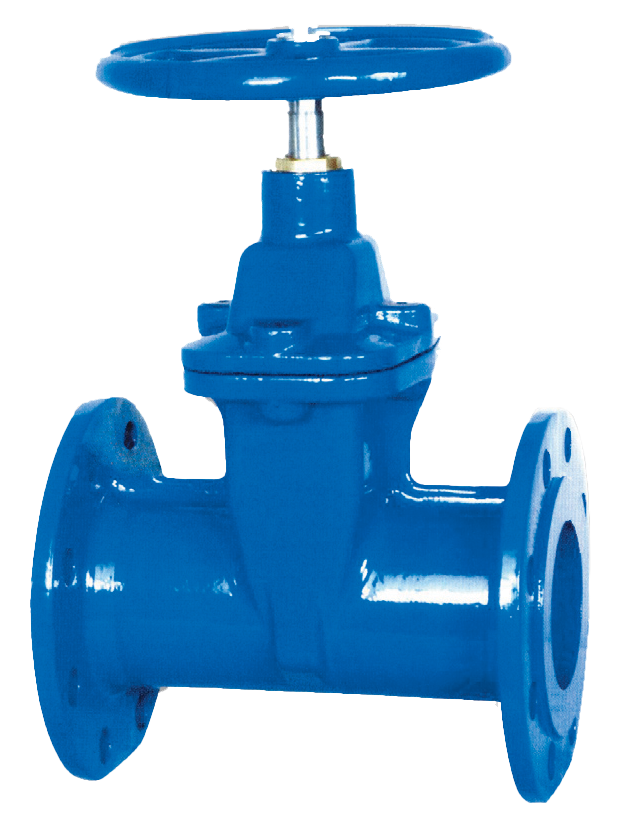

GATE VALVE CAST IRON FOR DRINKING WATER WITH RUBBER COATED WEDGE F5 DIN EN 1171 (DIN 3352 T2)

TECHNICAL CHARACTERISTICS

The gate valves with rubber wedge EN558 / 2 series 15, with a face length of F5 are perfectly designed for their intended purpose. The closing element (wedge) is fully vulcanized with EPDM rubber approved by ATA. The coating is characterized by excellent durability due to the double vulcanization process and the simplified design of the closing element, as well as the qualities of the rubber to retain its original shape. The sealing system is triple secured, which ensures complete corrosion protection and high reliability of the product.

WORKING MEDIUM / FLUID

Drinking water

Dimensions: DN 40 – 450


Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

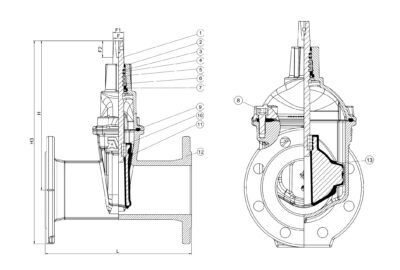

Materials

No. DETAILS MATERIALS
1 Spindle stainless steel 1.4104 (430F)
2 Gasket NBR rubber
3 Seal Ring NBR rubber
4 Bushing Polyamide
5 Cover malleable cast iron GJS-500-7
6 Spindle brass DZR CW602N
7 Cuff EPDM rubber
8 Fasteners stainless steel A2
9 Gasket EPDM rubber
10 Nut brass DZR CW626N
11 Wedge malleable cast iron, vulcanized EPDM
12 Body malleable cast iron GJS-500-7
13 Slider polyamide



Features

SPECIFICATION
Standard: EN 1172
Connection: EN 1092-2
Construction length: EN 558, series 15
Attaching the cover: bolted
Execution: straight
Connection: flanged
Operation: manual
Drive: multi-turn
Maximum temperature °C 0 - 70 °C





Dimensions
DN PN L H H3 F F1 F2 kg
40 10/16 240 200 283 14 16 30 8.3
50 10/16 250 209 292 14 16 30 9.7
65 10/16 270 243 336 17 20 34 12
80 10/16 280 282 382 17 20 34 16
100 10/16 300 319 429 19 22 34 18
125 10/16 325 346 471 19 22 34 24
150 10/16 350 403 596 19 22 34 34
200 10 400 490 660 24 28 34 54
200 16 400 490 660 24 28 34 54
250 10 450 664 864 27 31 47 110
250 16 450 664 864 27 31 47 110
300 10 500 740 968 27 31 47 160
300 16 500 740 968 27 31 47 160
350 10 550 947 1207 32 37 55 320
350 16 550 947 1207 32 37 55 320
400 10 600 959 1249 32 37 55 342
400 16 600 959 1249 32 37 55 342
450 10 650 958 1278 32 37 55 360
