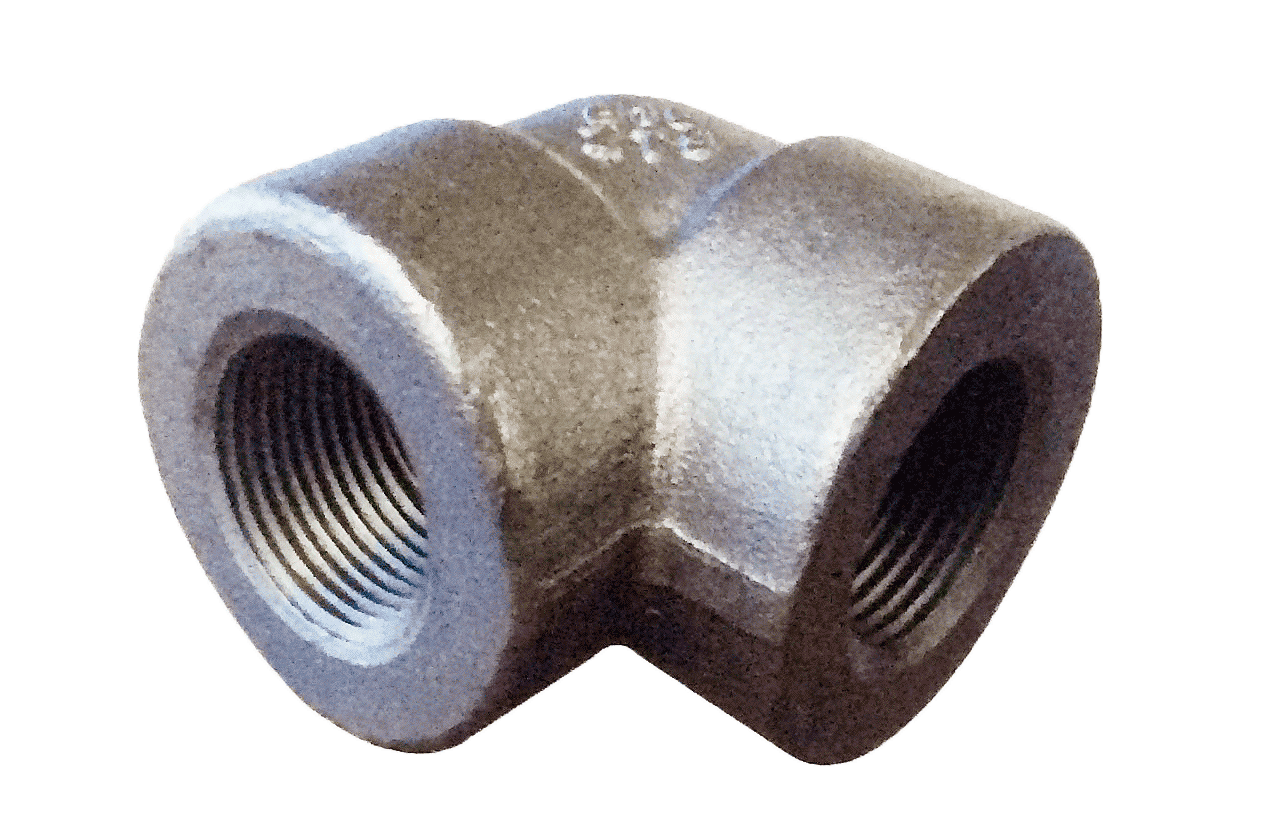

FORGED STEEL ELBOW THREADED NPT 90° ANSI B16.11
TECHNICAL DESCRIPTION
Forged threaded elbows are connecting elements with a specific bending radius that are used to connect pipes of the same diameter.
Dimensions:G1/2″ – G2″
Additional information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Knee | steel A105 |
| other steels - on request | ||
| stainless steels - upon request |
Features
| SPECIFICATION | |
|---|---|
| Standard | ANSI B16.11 |
| Pressure | 3000 LBS (200 Bars) |
| Thread standard | NPT |

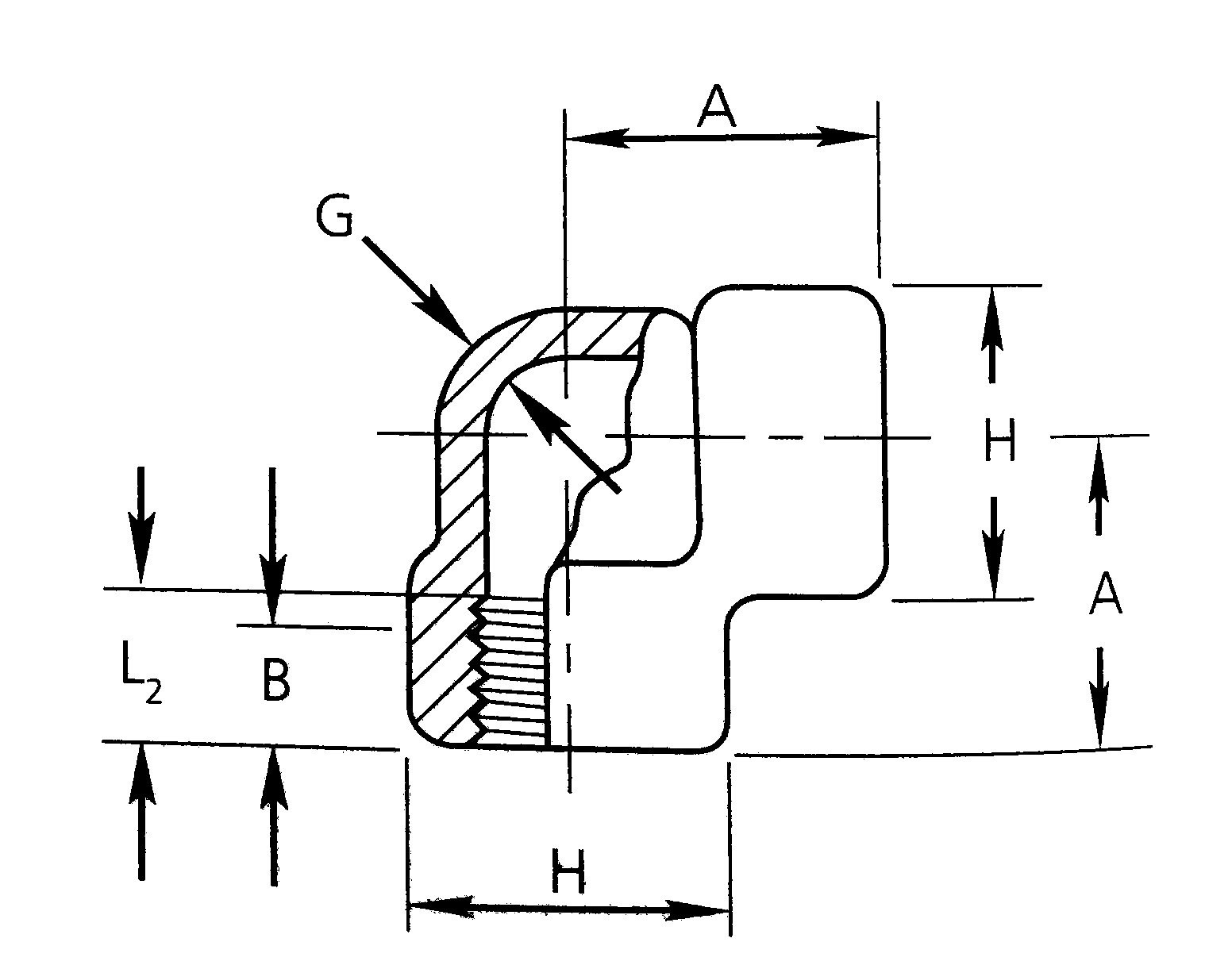

Dimensions
| dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|
| DN | NPT thread | A | H | G | B | L2 | kg |
| 10 | 3/8" | 28 | 33 | 3.51 | 9.1 | 10.4 | 0.235 |
| 15 | 1/2" | 33 | 38 | 4.09 | 10.9 | 13.6 | 0.390 |
| 20 | 3/4" | 38 | 46 | 4.32 | 12.7 | 13.9 | 0.570 |
| 25 | 1" | 44 | 56 | 4.98 | 14.7 | 17.3 | 0.990 |
| 32 | 1 1/4" | 51 | 62 | 5.28 | 17.0 | 18.0 | 1,250 |
| 40 | 1 1/2" | 60 | 75 | 5.56 | 17.8 | 18.4 | 2,130 |
| 50 | 2" | 64 | 84 | 7.14 | 19.0 | 19.2 | 3,300 |
