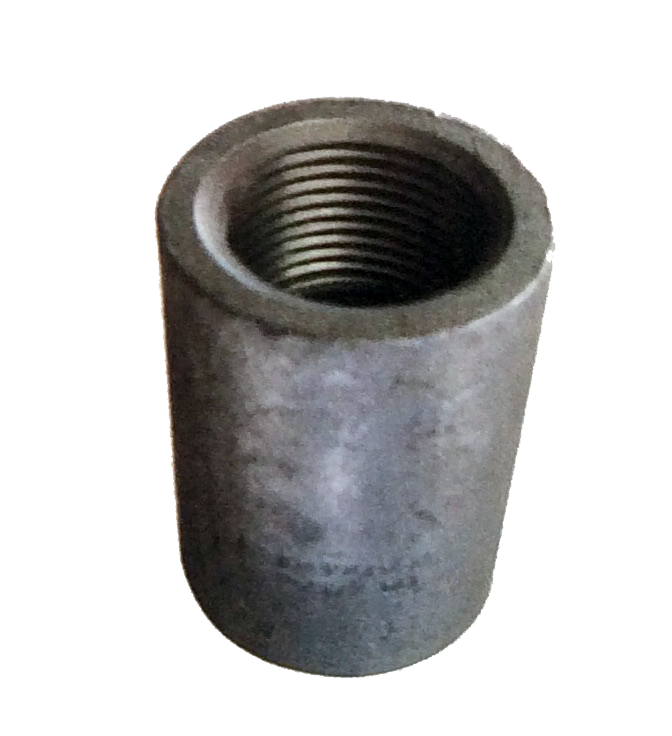

FORGED STEEL COUPLING WITH NPT ANSI B16.11 THREAD
TECHNICAL DESCRIPTION
Forged threaded steel couplings are connecting elements that allow the connection of tubular elements (pipes) of the same diameter. They connect two pipes in a straight connection. In practice, we consider two types of couplings:
• with the same cross-section at the inlet and outlet
• with a reduced cross-section at one of the outlets
Dimensions: G1/2″ – G2″
Additional information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | NPT threaded coupling | steel A105 |
| other steels - on request | ||
| stainless steels - upon request |
Features
| SPECIFICATION | |
|---|---|
| Standard | ANSI B16.11 |
| Pressure | 3000 LBS (200 Bars) |

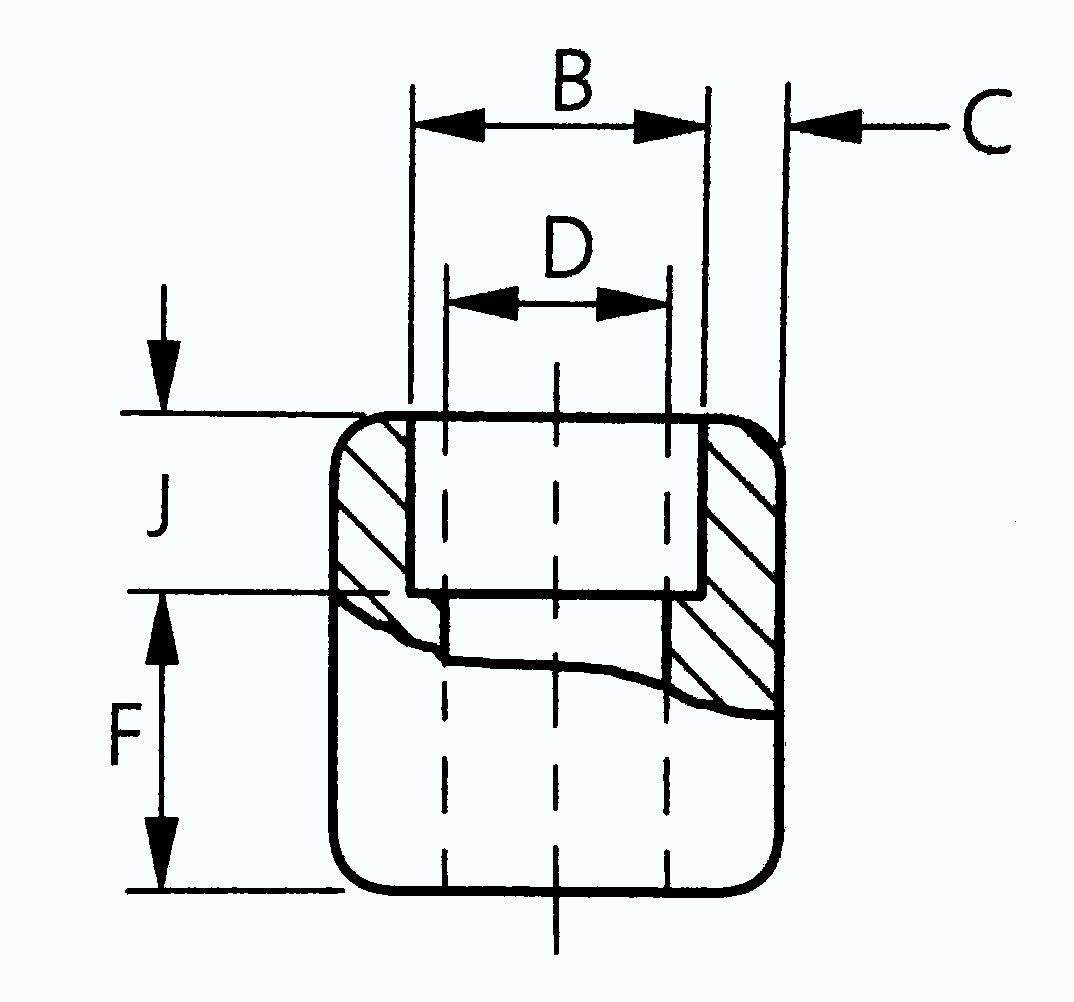

Dimensions
| dimensions (mm) | ||||||
|---|---|---|---|---|---|---|
| DN | NPT thread | W | D | B | L2 | kg |
| 15 | 1/2" | 48 | 28 | 10.9 | 13.6 | 0.14 |
| 20 | 3/4" | 51 | 35 | 12.7 | 13.9 | 0.22 |
| 25 | 1" | 60 | 44 | 14.7 | 17.3 | 0.49 |
| 32 | 1 1/4" | 67 | 57 | 17.0 | 17.7 | 0.72 |
| 40 | 1 1/2" | 79 | 64 | 17.8 | 18.4 | 1.03 |
| 50 | 2" | 86 | 76 | 19.0 | 19.2 | 1.41 |
Related products
Select options
This product has multiple variants. The options may be chosen on the product page

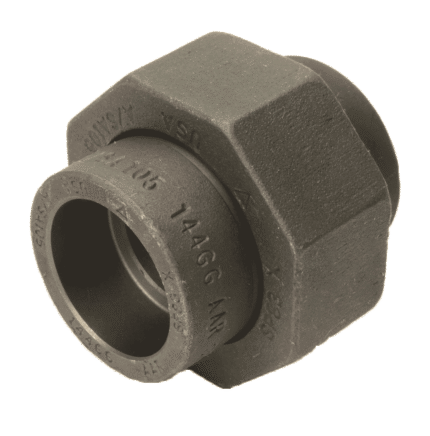

FORGED STEEL CONNECTOR SW ANSI B16.11
Select options
This product has multiple variants. The options may be chosen on the product page

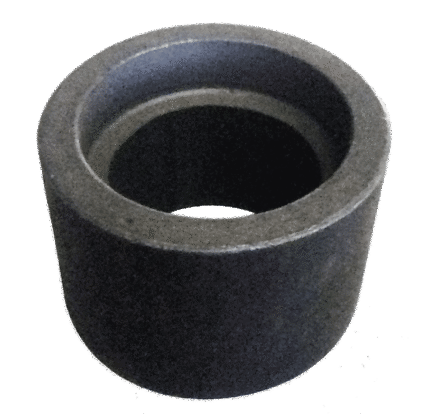

FORGED STEEL COUPLING SW ANSI B16.11
Select options
This product has multiple variants. The options may be chosen on the product page

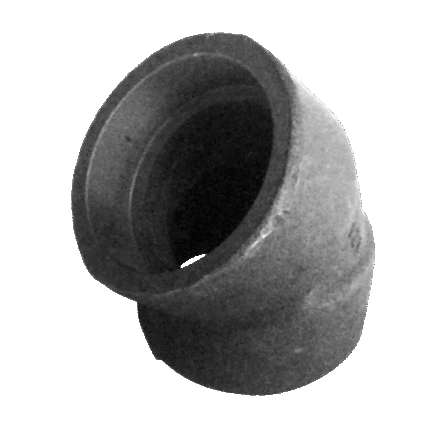

FORGED STEEL ELBOW SW 45° ANSI B16.11
Select options
This product has multiple variants. The options may be chosen on the product page

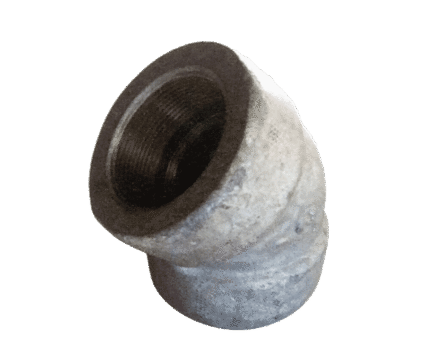

FORGED STEEL ELBOW THREADED NPT 45° ANSI B16.11
Select options
This product has multiple variants. The options may be chosen on the product page

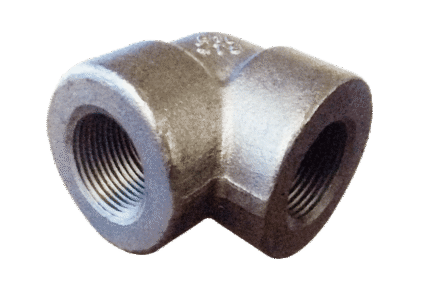

FORGED STEEL ELBOW THREADED NPT 90° ANSI B16.11
Select options
This product has multiple variants. The options may be chosen on the product page
NPT ANSI B16.11 THREADED STEEL FLANGE
Select options
This product has multiple variants. The options may be chosen on the product page

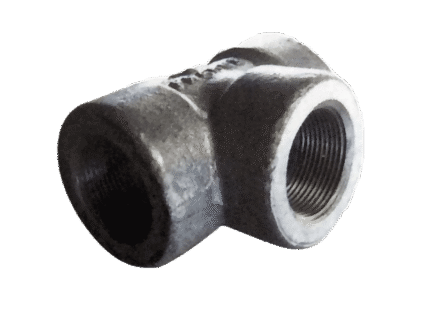

TEE STEEL FORGED WITH NPT THREAD ANSI B16.11
