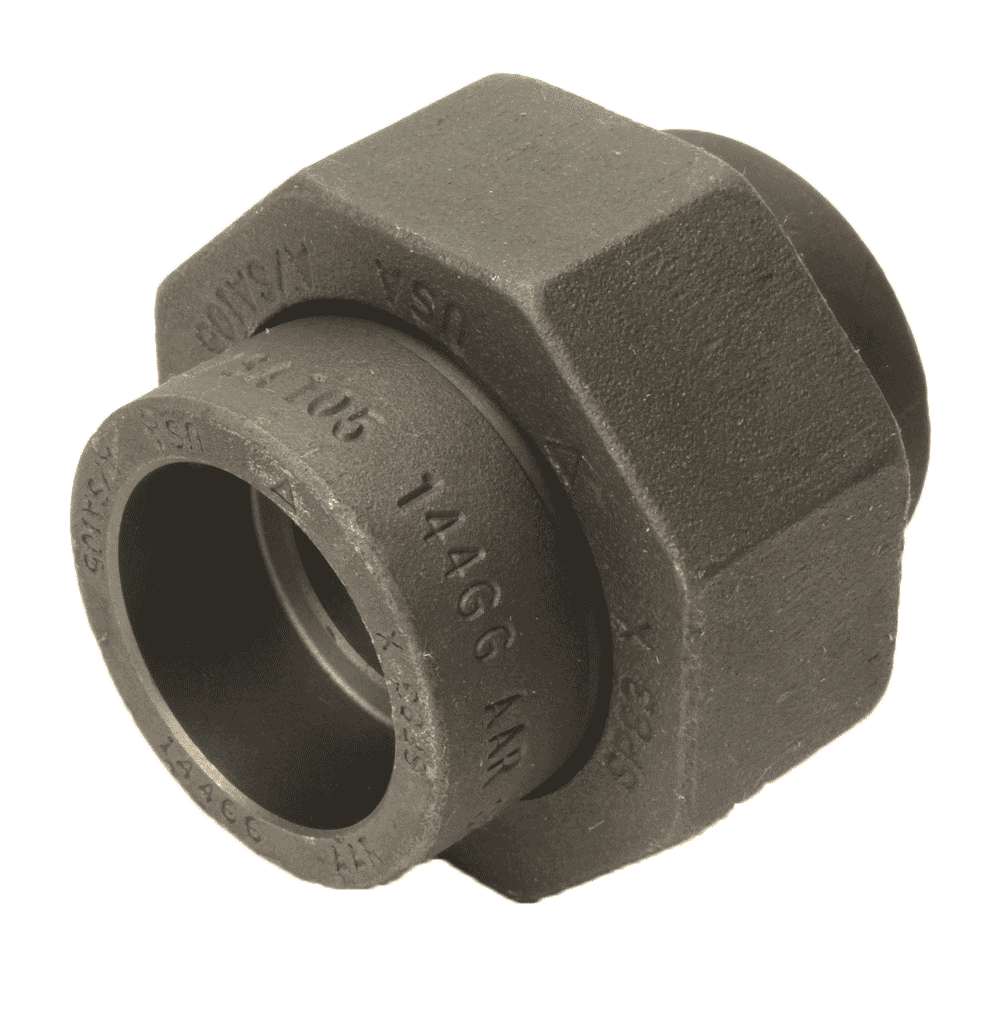

FORGED STEEL CONNECTOR SW ANSI B16.11
TECHNICAL DESCRIPTION
Forged steel welded sockets are connecting elements that provide a detachable connection of pipe elements (tubes) of the same diameter. The sockets connect the pipe elements in a straight connection.
Dimensions: 1/2″ – 2″
Additional information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Hollander | steel A105 |
| other steels - on request | ||
| stainless steels - upon request |
Features
| SPECIFICATION | |
|---|---|
| Standard | ANSI B16.11 |
| Pressure | 3000 LBS (200 Bars) |

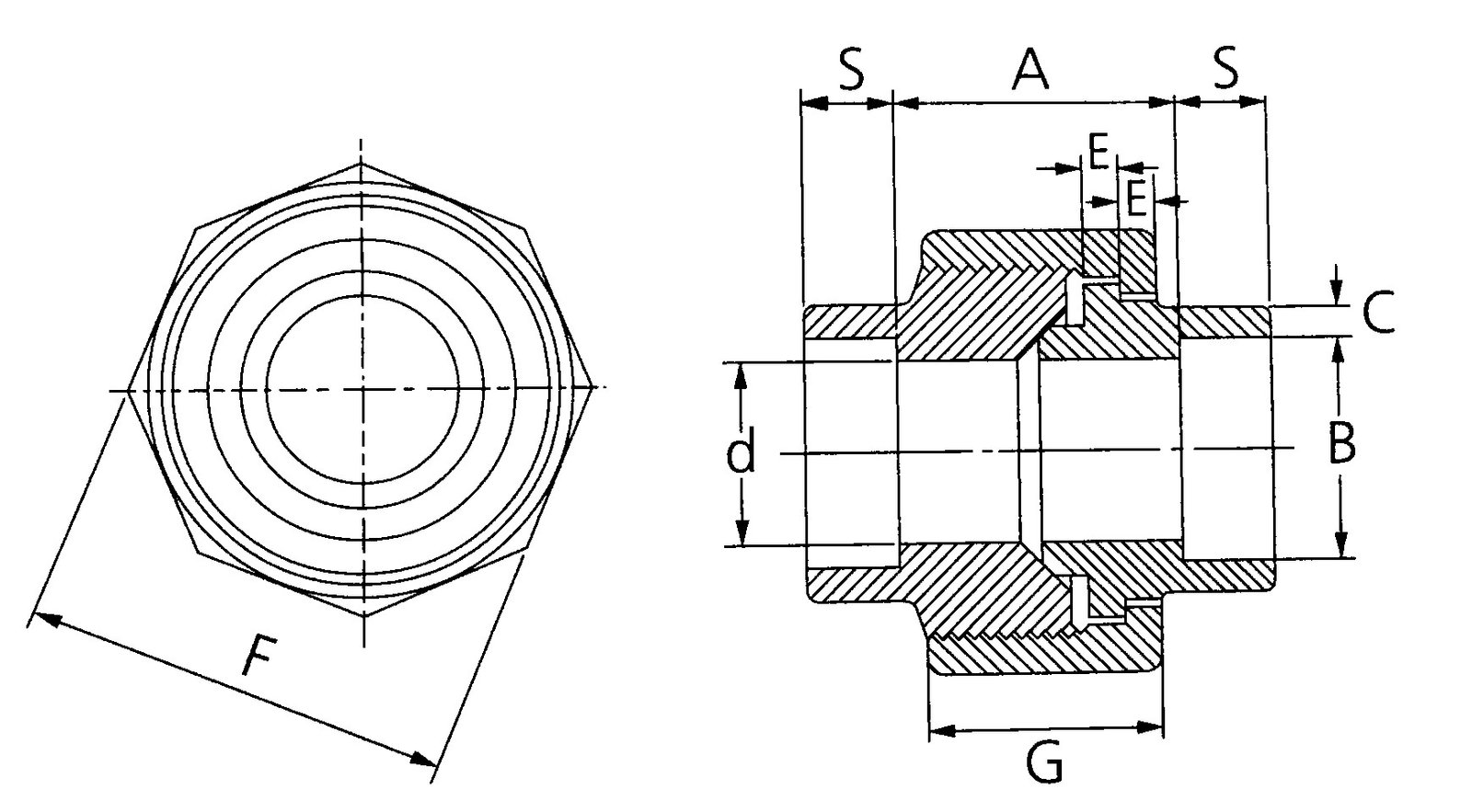

Dimensions
| dimensions (mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| DN | D nom. | S | A | B | C | d | E | F | G | kg |
| 15 | 1/2" | 10.0 | 18 | 21.8 | 4.1 | 15.5 | 4.0 | 41 | 21 | 0.38 |
| 20 | 3/4" | 13.0 | 20 | 27.4 | 4.3 | 21.0 | 4.8 | 50 | 24 | 0.46 |
| 25 | 1" | 13.0 | 26 | 34.1 | 5.0 | 26.5 | 4.8 | 60 | 25 | 0.70 |
| 32 | 1 1/4" | 13.0 | 28 | 42.9 | 5.3 | 35.0 | 5.6 | 70 | 29 | 1.20 |
| 40 | 1 1/2" | 13.0 | 30 | 49.0 | 5.6 | 40.5 | 5.6 | 78 | 30 | 1.50 |
| 50 | 2" | 16.0 | 36 | 61.0 | 6.1 | 52.0 | 6.4 | 95 | 37 | 2.58 |
