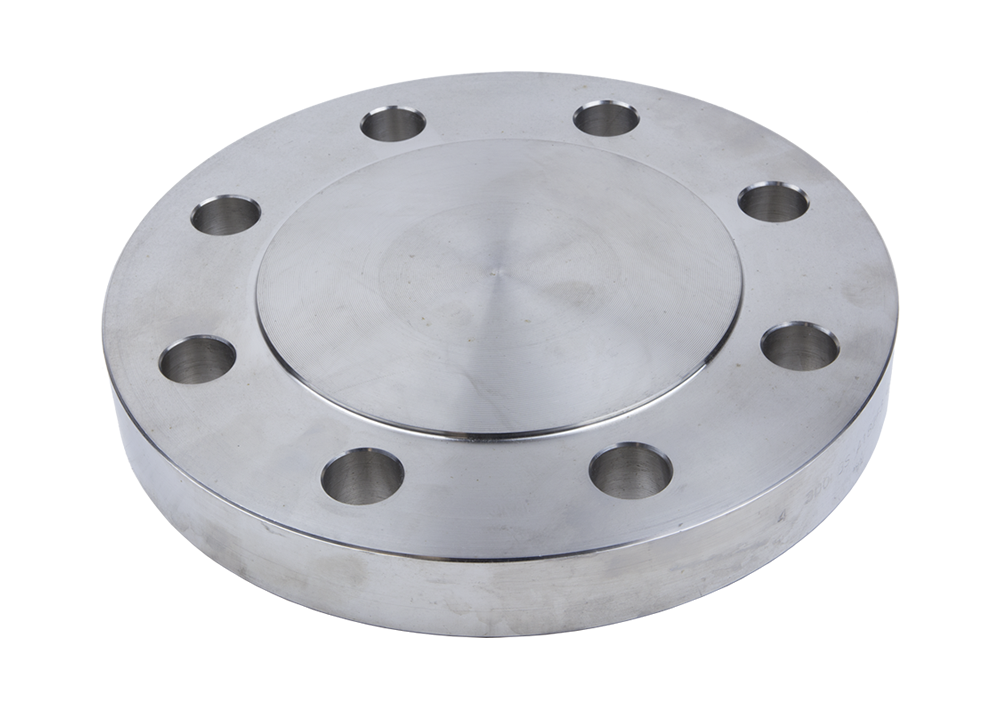

BLIND FLANGE ANSI B16.5 CLASS #150
Dimensions: 1/2″ – 24″
Additional information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Flange | steel ASTM A105N |
| other steels - on request | ||
| stainless steels - upon request |
Features
| SPECIFICATION | |
|---|---|
| Standard | ANSI B16.5 |
| Pressure | #150 (PN 20) |
| Sealing surface | flat face (FF) |
| Guidance surface options | with flange (RF) or profile channel (RTJ) |

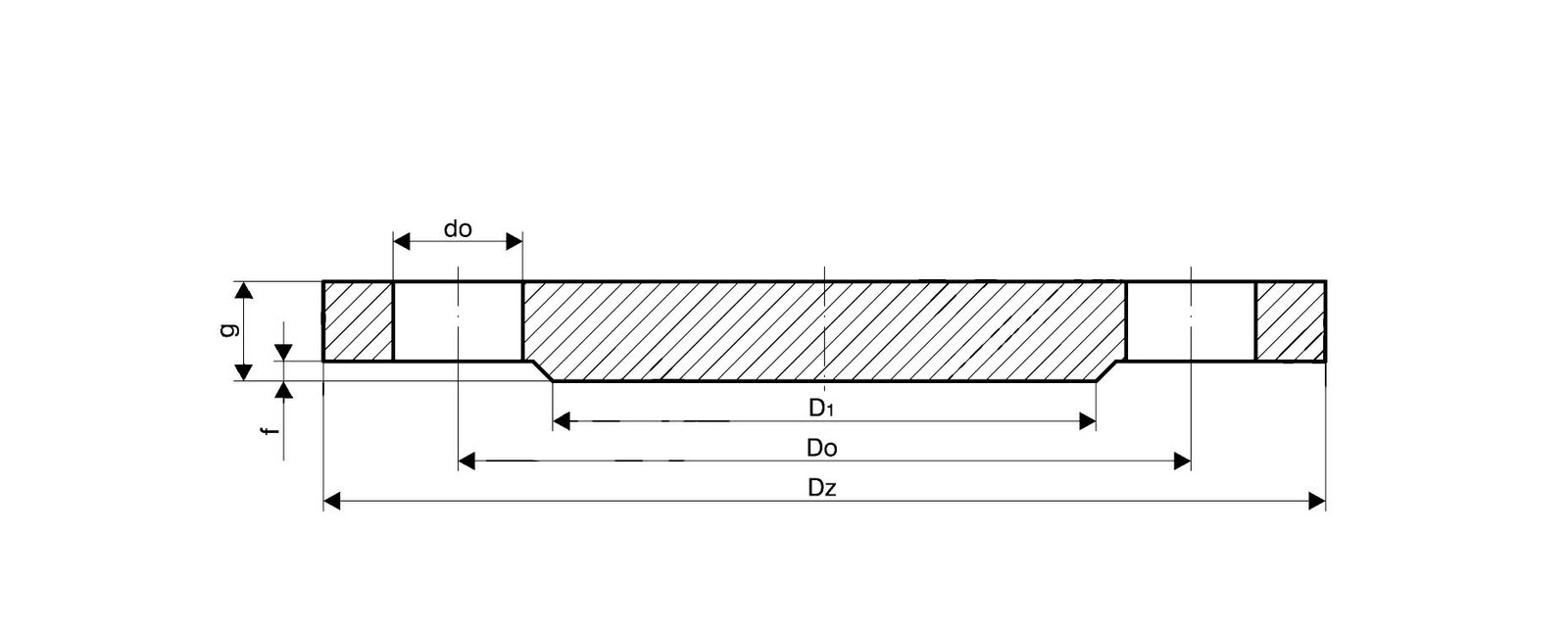

Dimensions
| DN | flange dimensions | open | ||||||
|---|---|---|---|---|---|---|---|---|
| Dz | Do | do | g | D1 | f | kg | n | |
| 1/2" | 88.9 | 60.5 | 15.7 | 11.2 | 35.1 | 1.6 | 0.42 | 4 |
| 3/4" | 98.6 | 69.9 | 15.7 | 12.7 | 42.9 | 1.6 | 0.61 | 4 |
| 1" | 108.0 | 79.2 | 15.7 | 14.2 | 50.8 | 1.6 | 0.86 | 4 |
| 1 1/4" | 117.3 | 88.9 | 15.7 | 15.7 | 63.5 | 1.6 | 1.17 | 4 |
| 1 1/2" | 127.0 | 98.6 | 15.7 | 17.5 | 73.2 | 1.6 | 1.53 | 4 |
| 2" | 152.4 | 120.7 | 19.1 | 19.1 | 91.9 | 1.6 | 2.42 | 4 |
| 2 1/2" | 177.8 | 139.7 | 19.1 | 22.4 | 104.6 | 1.6 | 3.94 | 4 |
| 3" | 190.5 | 152.4 | 19.1 | 23.9 | 127.0 | 1.6 | 4.93 | 4 |
| 3 1/2" | 215.9 | 177.8 | 19.1 | 23.9 | 139.7 | 1.6 | 6.17 | 8 |
| 4" | 228.6 | 190.5 | 19.1 | 23.9 | 157.2 | 1.6 | 7.00 | 8 |
| 5" | 254.0 | 215.9 | 22.4 | 23.9 | 185.7 | 1.6 | 8.63 | 8 |
| 6" | 279.4 | 241.3 | 22.4 | 25.4 | 215.9 | 1.6 | 11.3 | 8 |
| 8" | 342.9 | 298.5 | 22.4 | 28.4 | 269.7 | 1.6 | 19.6 | 8 |
| 10" | 406.4 | 362.0 | 25.4 | 30.2 | 323.9 | 1.6 | 28.8 | 12 |
| 12" | 482.6 | 431.8 | 25.4 | 31.8 | 381.0 | 1.6 | 43.2 | 12 |
| 14" | 533.4 | 476.3 | 28.4 | 35.1 | 412.8 | 1.6 | 58.1 | 12 |
| 16" | 596.9 | 539.8 | 28.4 | 36.6 | 469.9 | 1.6 | 76.0 | 16 |
| 18" | 635.0 | 577.9 | 31.8 | 39.6 | 533.4 | 1.6 | 93.7 | 16 |
| 20" | 698.5 | 635.0 | 31.8 | 42.9 | 584.2 | 1.6 | 122 | 20 |
| 24" | 812.8 | 749.3 | 35.1 | 47.8 | 692.2 | 1.6 | 185 | 20 |
Related products
Select options
This product has multiple variants. The options may be chosen on the product page

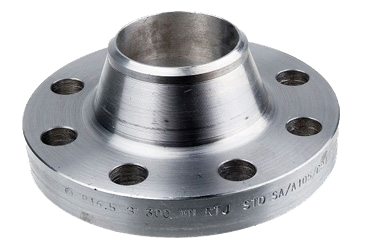

ANSI B16.5 CLASS #150 NECK FLANGE
Select options
This product has multiple variants. The options may be chosen on the product page

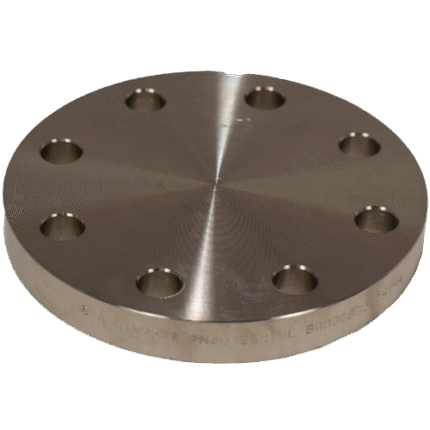

BLIND FLANGE ACCORDING TO JIS B2220 BLIND 10K
Select options
This product has multiple variants. The options may be chosen on the product page

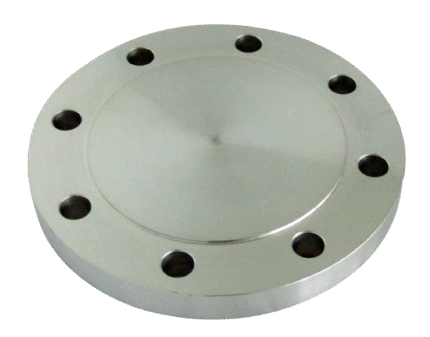

BLIND FLANGE TYPE 05/B1 EN1092-1 PN10
