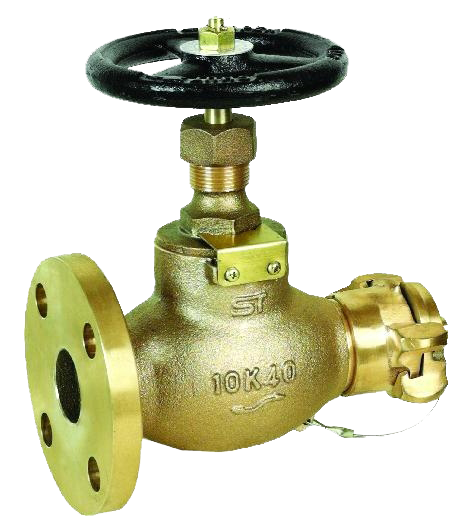

FIRE VALVE STRAIGHT BRONZE FLANGE JIS F7334 10K
TECHNICAL DESCRIPTION
Straight fire hydrant with soft seal JIS F7334 10K
It is installed in fire systems operating with fresh and sea water, it is installed in a set with a “NAKAJIMA” type fire hose coupling. With threaded cover.
WORKING FLUID / MEDIUM
• Sea water
• Fresh water
ANNEX
• In fire systems with a maximum operating temperature of 80 °C
JOIN
• Standard NAKAJIMA coupling or BSPP male thread
Dimensions: DN 15 – 65
Additional information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | bronze CC491K (RG5) |
| 2 | Bracelet solid. | rubber-reinforced |
| 3 | Valve | bronze CC491K (RG5) |
| 4 | Lid | bronze CC491K (RG5) |
| 5 | Spindle | brass CW710R (SoMs59) |
| 6 | Handwheel | gray cast iron EN-JL1030 |
Features
| SPECIFICATION | |
|---|---|
| Standard | JIS 7334R |
| Execution | straight |
| Joining | flanged |
| Management | manually with wheel |
| Drive | multi-turn |
| T max. °C | NBR seat 80 °C / EPDM seat 110 °C |
Dimensions
| DN | A | L | H (open) | M |
|---|---|---|---|---|
| 15 | 95 | 115 | 130 | 80 |
| 25 | 125 | 135 | 160 | 125 |
| 40 | 140 | 175 | 190 | 140 |
| 50 | 155 | 220 | 255/270 | 160 |
| 65 | 175 | 275 | 295 | 200 |
