FIRE VALVE STRAIGHT BRONZE FLANGE DIN PN 16
TECHNICAL DESCRIPTION
Fire valve straight, bronze with soft sealing.
Used in fire systems operating with fresh and sea water, installed in a set with a Storz type fire hose coupling.
WORKING FLUID / MEDIUM
• Sea water
• Fresh water
ANNEX
• In fire systems
Maximum operating temperature 80 °C Connection – Standard for hose with Storz coupling
Dimensions: DN-40-65
Additional information

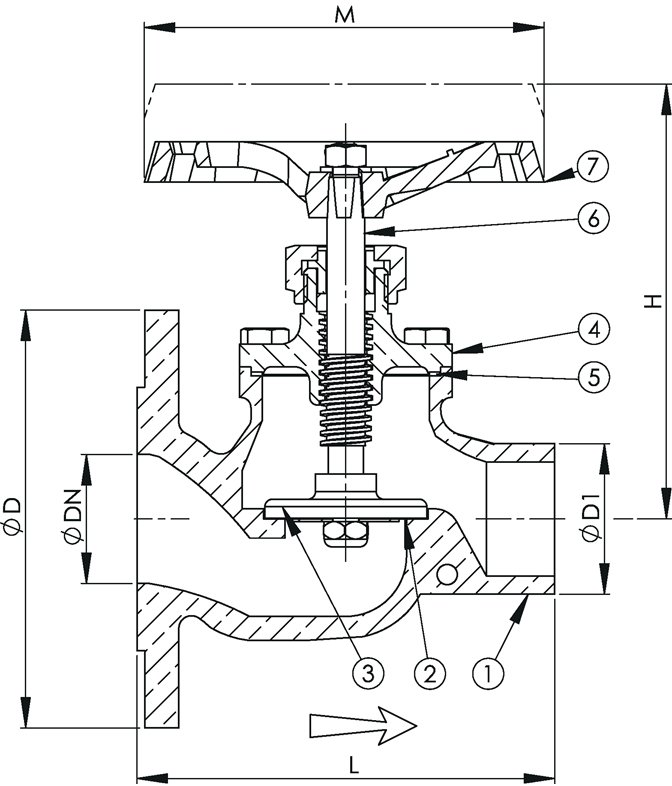

Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | bronze CC491K (RG5) |
| 2 | Bracelet solid. | NBR rubber |
| 3 | Valve | brass CW710R (SoMs59) |
| 4 | Lid | bronze CC491K (RG5) |
| 5 | Garnish | rubber-reinforced |
| 6 | Spindle | brass CW710R (SoMs59) |
| 7 | Handwheel | bronze CC491K (RG5) |
Features
| SPECIFICATION | |
|---|---|
| Standard | DIN |
| Execution | straight |
| Joining | flanged |
| Management | manual / manual with wheel |
| Drive | multi-turn |
| T max. °C | NBR seat 80°C / EPDM seat 110°C |
Dimensions
| DN | PN | Flanges | L | D | D1 | H | M | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 40 | 16 | PN 16 | 150 | 72 | G 1 1/2" | 160 | 140 | 5 |
| 50 | 16 | PN 16 | 167 | 165 | G 2" | 175 | 140 | 6 |
| 65 | 16 | PN 16 | 200 | 185 | G 2 1/2" | 205 | 160 | 11 |
