FIRE VALVE ANGLE BRONZE FLANGED JIS F7334H 5K

TECHNICAL DESCRIPTION

Angled fire hydrant with soft seal JIS F7334H 5K
It is installed in fire systems operating with fresh and sea water, it is installed in a set with a “NAKAJIMA” type fire hose coupling. With threaded cover.

WORKING FLUID / MEDIUM

• Sea water
• Fresh water

ANNEX

• In fire systems with a maximum operating temperature of 80 °C

JOIN

• Standard NAKAJIMA coupling or BSPP male thread

Dimensions: DN 15 – 65

Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

Materials

No. DETAILS MATERIALS
1 Body bronze CC491K (RG5)
2 Bracelet solid. rubber-reinforced
3 Valve bronze CC491K (RG5)
4 Lid bronze CC491K (RG5)
5 Spindle brass CW710R (SoMs59)
6 Handwheel gray cast iron EN-JL1030

Features

SPECIFICATION
Standard JIS 7334H
Execution straight
Joining flanged
Management manually with wheel
Drive multi-turn
T max. °C NBR seat 80 °C / EPDM seat 110 °C

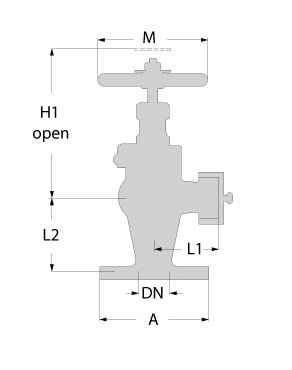

Dimensions
DN A L H (open) M
15 80 55 120 80
25 95 65 145 125
40 120 75 165 140
50 130 100 255/240 160
65 - - 255 200
