FIRE VALVE ANGLE BRASS 30 ° THREADS DIN PN 16
TECHNICAL DESCRIPTION
Fire valve angle – 30°, brass with soft sealing.

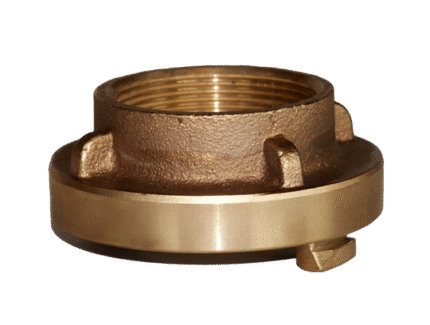

Used in fire systems operating with fresh and sea water, installed in a set with a Storz type fire hose connector or with BSPP thread.
Threaded cover.
WORKING FLUID / MEDIUM
• Sea water
• Fresh water
ANNEX
• In fire systems
Maximum operating temperature 60 °C. Connection – standard for hose with Storz coupling or BSPP thread
Dimensions: DN-40-65
Additional information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | brass CW710R (SoMs59) |
| 2 | Bracelet solid. | NBR rubber |
| 3 | Valve | brass CW710R (SoMs59) |
| 4 | Lid | brass CW710R (SoMs59) |
| 5 | Garnish | rubber-reinforced |
| 6 | Spindle | brass CW710R (SoMs59) |
| 7 | Handwheel | grey cast iron EN-JL1030 |
Features
| SPECIFICATION | |
|---|---|
| Standard | DIN |
| Execution | angular 30°. |
| Joining | threaded BSPP |
| Management | manually with wheel |
| Drive | multi-turn |
| T max. °C | NBR seat max. 80°C / EPDM seat max. 110°C |

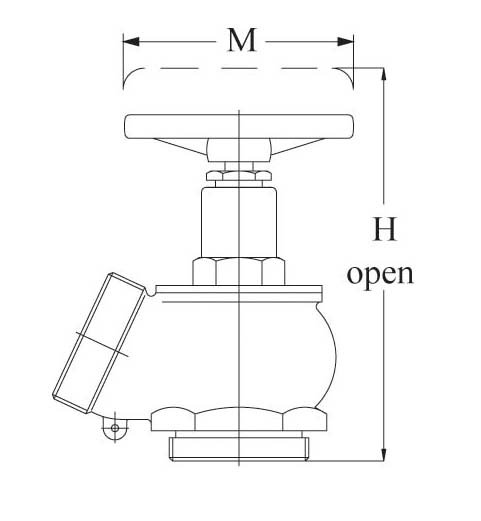

Dimensions
| DN | PN | thread G | H (open) | M | Weight (kg) |
|---|---|---|---|---|---|
| 40 | 16 | G 1 1/2" | 161 | 80 | 1.6 |
| 50 | 16 | G 2" | 177 | 100 | 2 |
| 65 | 16 | G 2 1/2" | 211 | 100 | 3.9 |
Related products
Select options
This product has multiple variants. The options may be chosen on the product page

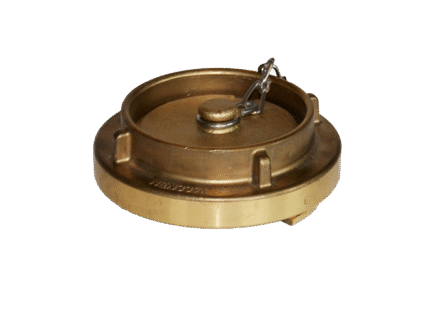

CAP TYPE STORZ “DEAF” FOR FIRE VALVE BRONZE DIN PN 16
Select options
This product has multiple variants. The options may be chosen on the product page
CAP TYPE STORZ “THREADED” FOR FIRE VALVE BRONZE DIN PN 16
Select options
This product has multiple variants. The options may be chosen on the product page
FIRE VALVE ANGLE BRONZE FLANGED DIN PN 16
Select options
This product has multiple variants. The options may be chosen on the product page

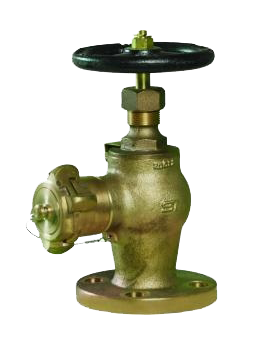

FIRE VALVE ANGLE BRONZE FLANGED JIS F7334H 10K
Select options
This product has multiple variants. The options may be chosen on the product page
FIRE VALVE ANGLE BRONZE FLANGED JIS F7334H 5K
Select options
This product has multiple variants. The options may be chosen on the product page

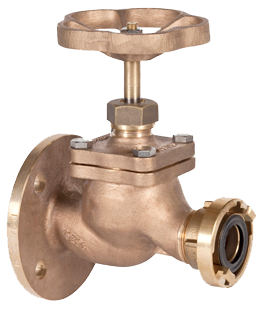

FIRE VALVE STRAIGHT BRONZE FLANGE DIN PN 16
Select options
This product has multiple variants. The options may be chosen on the product page

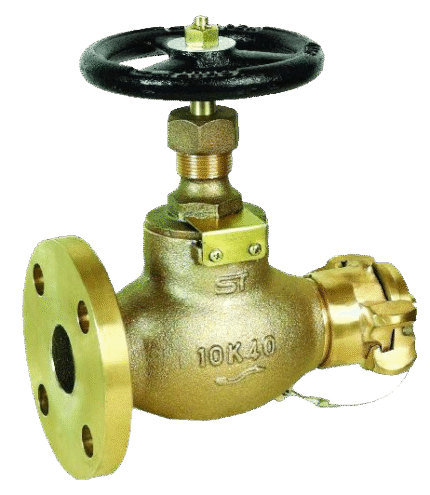

FIRE VALVE STRAIGHT BRONZE FLANGE JIS F7334 10K
