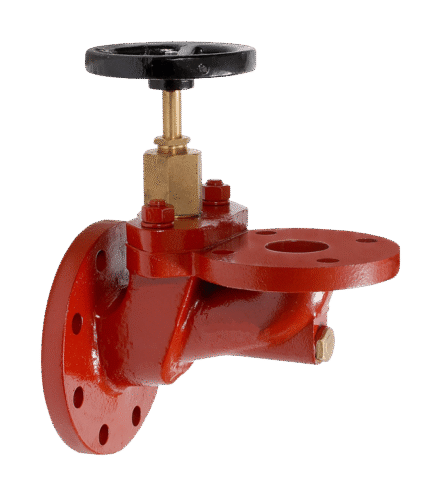

STORM VALVE MALLEABLE CAST IRON ANGLE FLANGED DIN PN 10
STORM VALVE MALLEABLE CAST IRON ANGLE FLANGED DIN PN 10

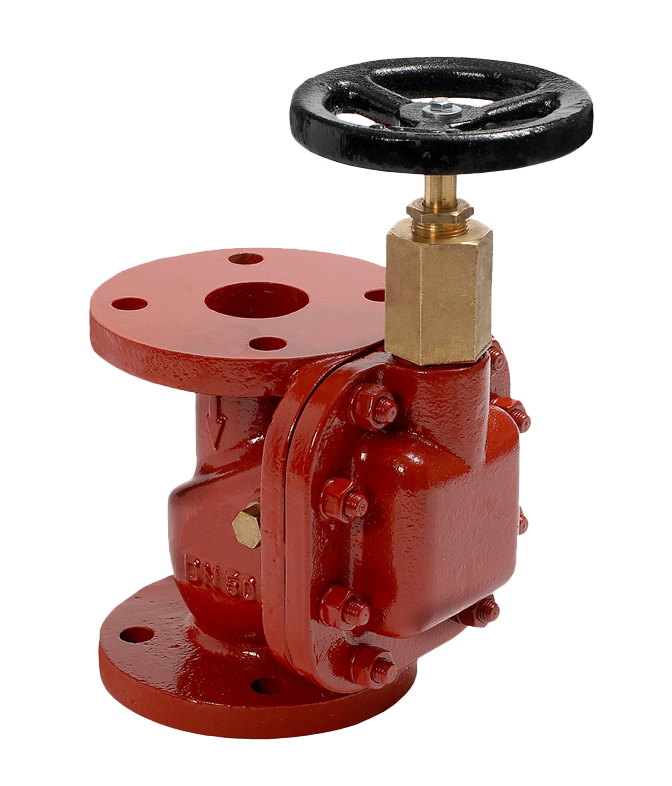

DISTRICT CAST IRON STORM VALVE STRAIGHT FLANGE DIN PN 10

TECHNICAL CHARACTERISTICS

Storm valves are mainly used for draining sewage, storm water and unpolluted sea water. They can be installed in both horizontal and vertical positions. Soft sealing

WORKING FLUIDS / MEDIUM

• Bilge, cargo and sea waters

EXECUTION

• Straight / angled

Dimensions: DN-50-150


Download Product PDF
Изпратете запитване (Send inquiry)
Additional Information



Materials

No. DETAILS MATERIALS
1 Body ductile iron EN-JS1025 (GGG40.3)
2 Lid ductile iron EN-JS1025 (GGG40.3)
3 Gasket NBR rubber
4 Pin stainless steel 1.4401 (AISI316)
5 Shoulder ductile iron EN-JS1025 (GGG40.3)
6 Valve bronze CC491K (RG5)
7 Garnish NBR rubber
8 Spindle brass CW614N (Ms58)
9 Spindle nut brass CW614N (Ms58)

Features

Standard DIN
Joining EN 1092-3
Construction length EN 558, series 48
Lid connection bolted
Execution straight
Joining flanged
Management manually with wheel
Drive multi-turn
Temp. range [°C] at Pmax 4 Bar -10°C ÷ +60°C

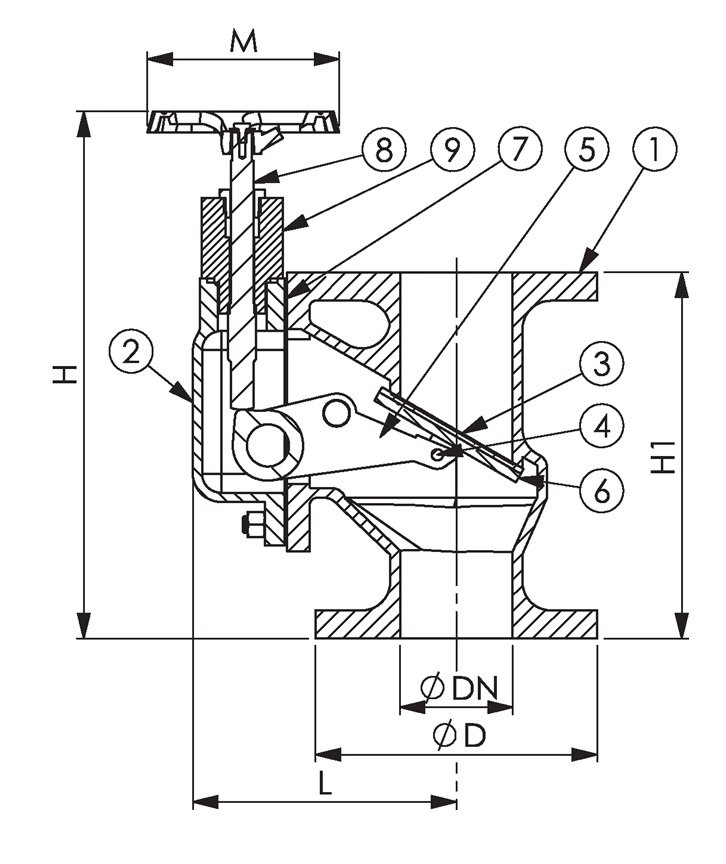

Dimensions
DN PN Flanges/PN L D H H1 M Weight (kg)
50 PN 4 PN 10 137 165 280 200 140 15
65 PN 4 PN 10 148 185 340 240 140 21
80 PN 4 PN 10 174 200 360 260 140 27
100 PN 4 PN 10 195 220 410 300 140 37
125 PN 4 PN 10 216 250 485 350 160 50
150 PN 4 PN 10 242 285 520 400 160 71
