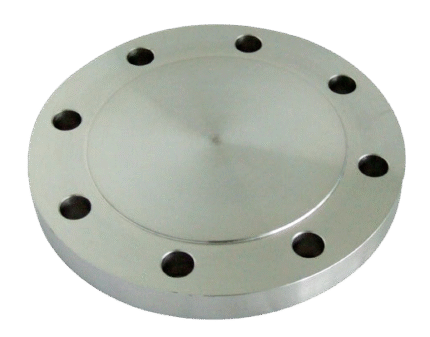

BLIND FLANGE TYPE 05/B1 EN1092-1 PN100
BLIND FLANGE TYPE 05/B1 EN1092-1 PN100

BLIND FLANGE TYPE 05/B1 EN1092-1 PN10

TECHNICAL DESCRIPTION

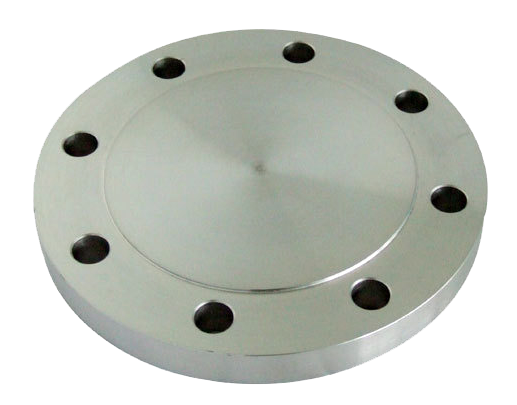

Blind flanges according to standard EN1092-1 / type 05 / B1 are pipeline elements with a wide size range, which are used as silencers in the construction of steel pipelines and pipe segments (spools).

We stock blind steel flanges according to EN1092-1 type 05 / with sealing surface B1, but we also have the necessary machining equipment, which allows us to offer flanges with sealing surfaces.

• sealing surface type A, B2, C, D, E, F
• non-standard sealing surfaces on request
• profile grooves for metal sealing rings (segments) type RTJ
• threaded type flanges
• flanges made to customer specifications, and others.

SUPPORTED MATERIALS IN STOCK:

• Carbon steel

P245GH (1.0352) / EN 10222-2

Dimensions: DN 10 – 2000

Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

Materials

No. DETAILS MATERIALS STANDARD
1 BLIND FLANGE 05/B1 EN1092-1 PN6 steel P245GH / (1.0352) EN 10222-2
other steels - on request
P245GH / 1.0352 EN 10222-2
P355NL1 / 1.0566 EN 10028-3
16Mo3; 15Mo3 / 1.5415 EN 10222-2
other stainless steels - on request
AISI 304L (X2CrNiMo17-12-2) / 1.4404 EN 10222-5
AISI 316L (X2CrNiMo17-12-2) / 1.4404 EN 10222-5
AISI 321 (X6CrNiTi18-10) / 1.4541 EN 10222-5
AISI 316Ti (X6CrNiMoTi17-12-2) / 1.4571 EN 10222-5

Features

SPECIFICATION
Standard EN 1092-1 01/B1
Pressure PN 10

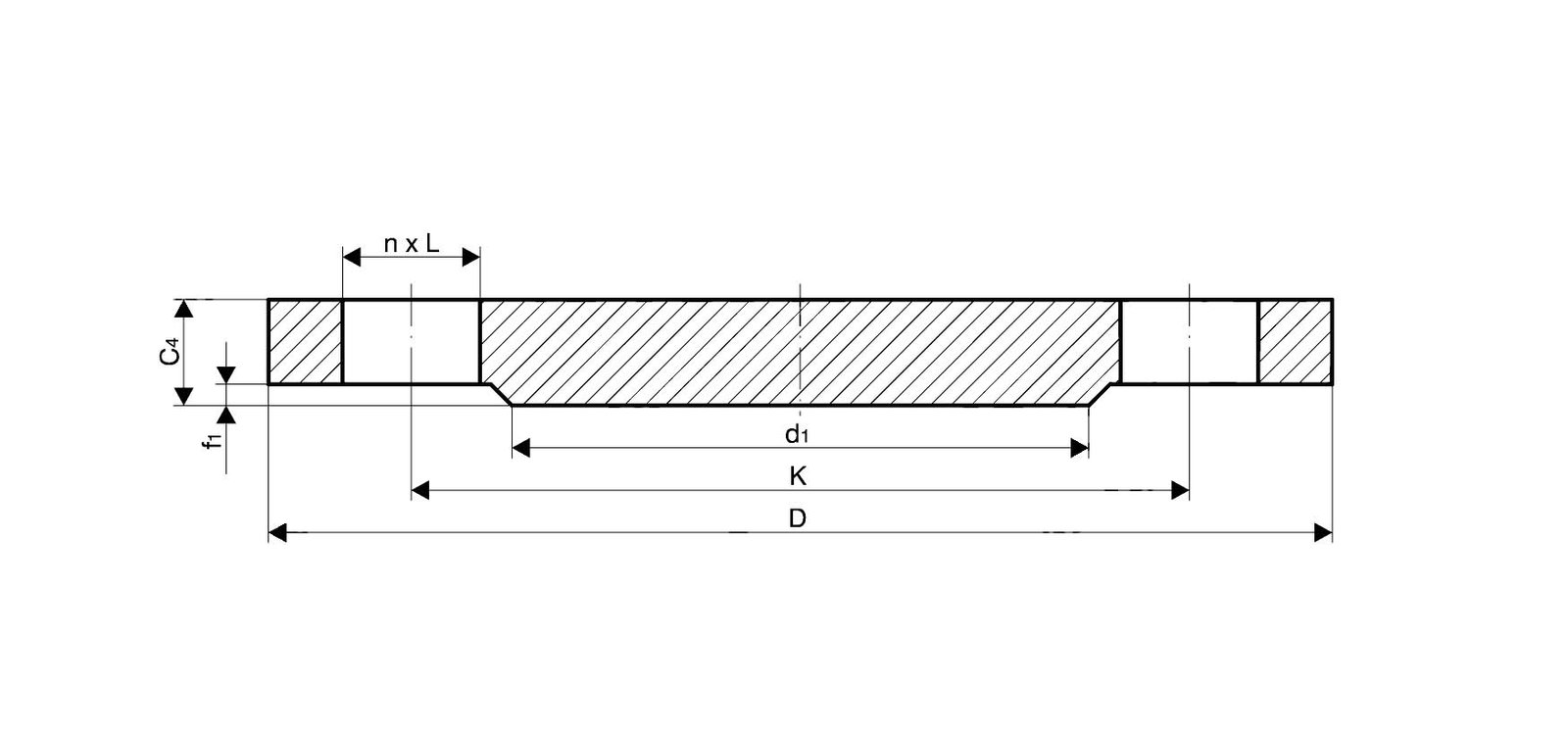

Dimensions
DN flange dimensions fastener dimensions
D K L C4 D1 f1 kg n M
10 90 60 14 16 40 2 1.00 4 M12
15 95 65 14 16 45 2 1.00 4 M12
20 105 75 14 18 58 2 1.00 4 M12
25 115 85 14 18 68 2 1.50 4 M12
32 140 100 18 18 78 2 2.00 4 M16
40 150 110 18 18 88 3 2.50 4 M16
50 165 125 18 18 102 3 2.44 4 M16
65 185 145 18 18 122 3 3.50 8a M16
80 200 160 18 20 138 3 4.50 8 M16
100 220 180 18 20 158 3 5.50 8 M16
125 250 210 18 22 188 3 8.00 8 M16
150 285 240 22 22 212 3 10.50 8 M20
200 340 295 22 24 268 3 16.50 8 M20
250 395 350 22 26 320 3 24.00 12 M20
300 445 400 22 26 370 4 31.00 12 M20
350 505 460 22 26 430 4 39.50 16 M20
400 565 515 26 26 482 4 49.50 16 M24
450 615 565 26 28 532 4 63.00 20 M24
500 670 620 26 28 585 4 75.50 20 M24
600 780 725 30 34 685 5 124.00 20 M27
700 895 840 30 38 800 5 173.00 24 M27
800 1015 950 33 48 905 5 297.00 24 M30
900 1115 1050 33 45 1005 5 374.00 28 M30
1000 1230 1160 36 54 1110 5 492.00 28 M33
1200 1455 1380 39 66 1330 5 842.00 32 M36
1400 1630 1560 1510 5 72 36 - 36 M33
1600 1830 1760 1710 5 80 136 - 40 M33
1800 2045 1970 1920 5 88 39 - 44 M36
2000 2265 2180 2125 5 96 42 - 48 M39
a) DN 65 flanges can also be made with 4 holes upon customer request
